       ROCKER SWITCH 翹板開關


























        PR-3426 series













       Multi-position rocker power switch


      PR-3426 series

      翹板開關

FEATURE
? 34.60mm*26.50mm
? 2 gears
? Double row of feet

APPLICATIONS
? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      電流/Current20A 125VAC/15A 250VAC
      接觸電阻/Contact Resistance35MAX
      操作溫度/Operating temperature-25℃+85℃
      絕緣電阻/Insulation resistance500VDC 100MAX min
      耐電壓/Withstand voltage1500VAC 1min
      電器壽命/Electrical life10,000cycles

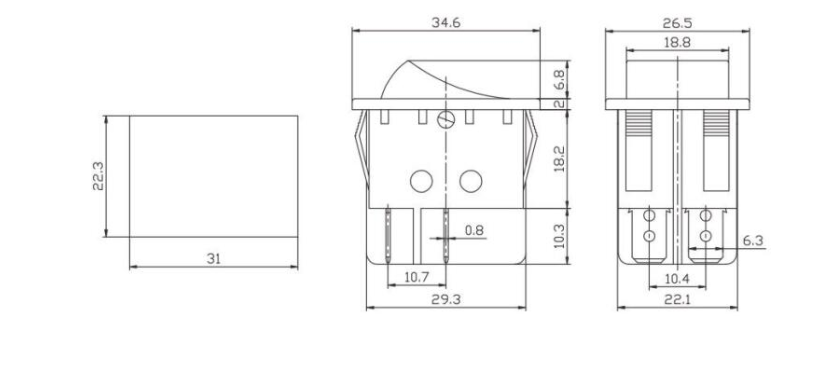

      DIMENSIONS
      ModelDimensions
      PR-3426-01PR-3426 series
      PR-3426 series

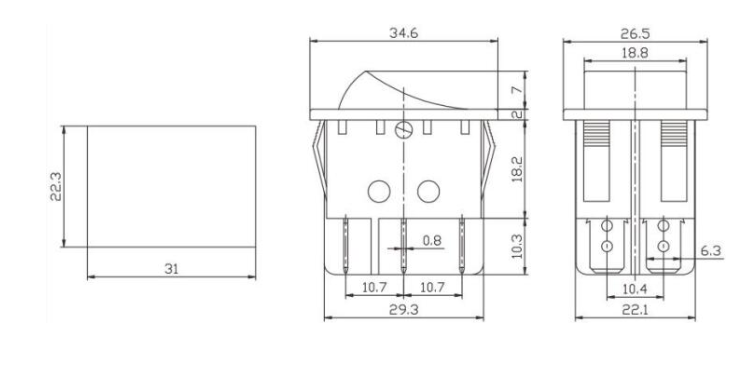

      DIMENSIONS
      ModelDimensions
      PR-3426-02PR-3426 series
      PR-3426 series

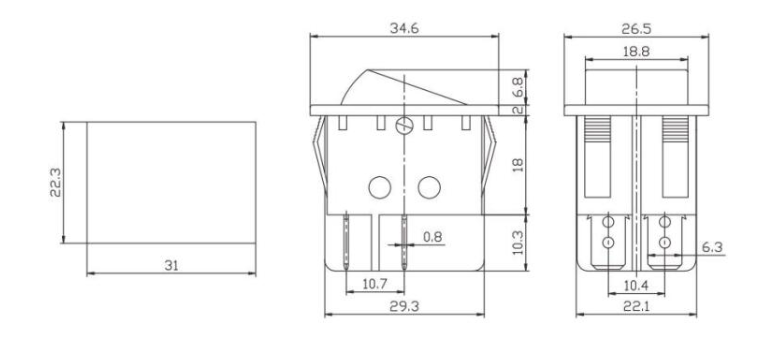

      DIMENSIONS
      ModelDimensions
      PR-3426-03PR-3426 series
      PR-3426 series

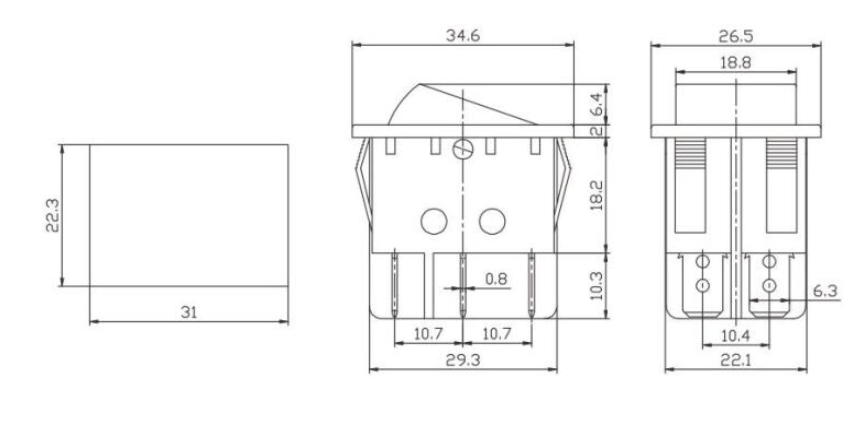

      DIMENSIONS
      ModelDimensions
      PR-3426-04PR-3426 series
      PR-3426 series
