MICRO SWITCH 微動開關

DIP mini micro switch

MS-1178

立式DIP 微動開關 FEATURE ? 9.80mm*8.30mm ? Vertical DIP ? Reflow soldering APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25°C ~ +70°C
操作力/Operating force	120g
尺寸/Dimension	9.80mm*8.30mm
機械壽命/Mechanical Life	3,000,000 Cycles
接觸電阻/Contact Resistance	100MΩ
絕緣電阻/Insulation resistance	100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage	AC 250 V 1 Minute

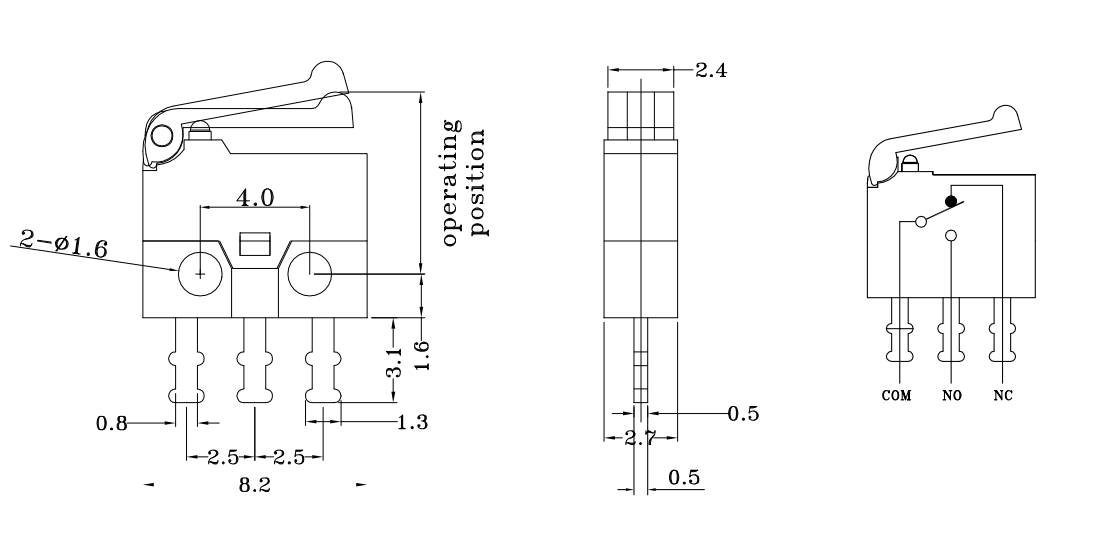

DIMENSIONS

Model	Dimensions
MS-1178
