ROCKER SWITCH 翹板開關(guān)

Multi-position rocker power switch

PR-3136 series

翹板開關(guān) FEATURE ? 31.00mm*36.50mm ? 2 gears ? Double row of feet APPLICATIONS ? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/Current	20A 125VAC/15A 250VAC
接觸電阻/Contact Resistance	35MAX
操作溫度/Operating temperature	-25℃+85℃
絕緣電阻/Insulation resistance	500VDC 100MAX min
耐電壓/Withstand voltage	1500VAC 1min
電器壽命/Electrical life	10,000cycles

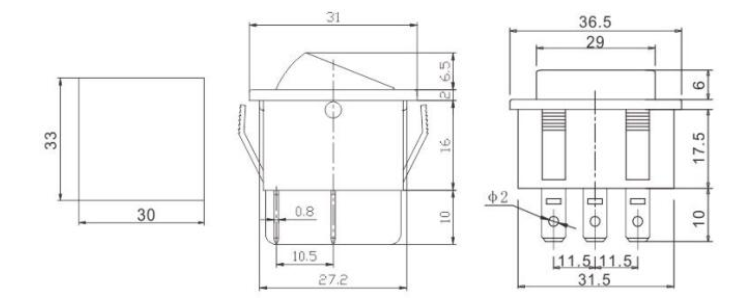

DIMENSIONS

Model	Dimensions
PR-3136-01
