SENSORY SWITCH 感應開關

Precision angle sensing element

VS-581

角度傾斜開關 FEATURE ?Φ3.10mm ?Tilt touch in all directions ?Contact ball type APPLICATIONS ? Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電壓/Voltage	＜6V
電流/Current	＜20mA
導通時間/ON time	about 2ms
閉路電阻/Closed circuit resistance	＜100A
開路電阻/Open circuit resistance	＜10mA
耐溫/Temperature resistance	-40℃+80℃
使用壽命/Service life	50,000hours

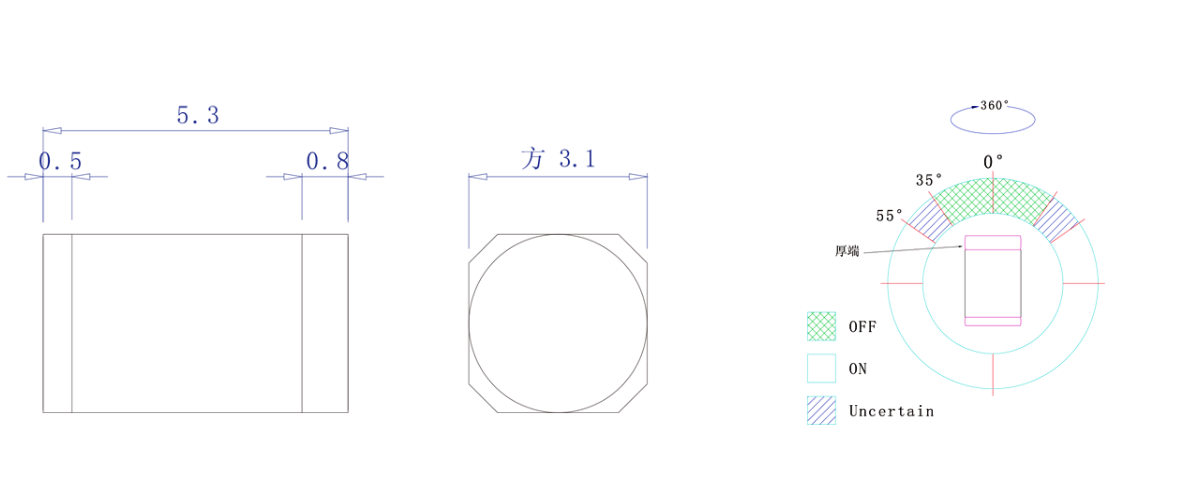

DIMENSIONS

Unit:mm

Model	Dimensions
VS-581
