       MICRO SWITCH 微動開關


























        MS-1135













       DIP mini micro switch


      MS-1135

      立式DIP 微動開關

FEATURE
? 12.80mm*6.50mm
? Vertical DIP
? Reflow soldering

APPLICATIONS
? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...










      產品說明


      COMMON SPECIFICATIONS
      CharacteristicsSpecification
      工作溫度範圍/Operating temperature range-25°C ~ +85°C
      操作力/Operating force20~40g
      尺寸/Dimension9.50mm*4.80mm
      機械壽命/Mechanical Life1,000,000 Cycles
      接觸電阻/Contact Resistance50MΩ
      絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
      承受電壓/Withatand VoltageAC 250 V 1 Minute

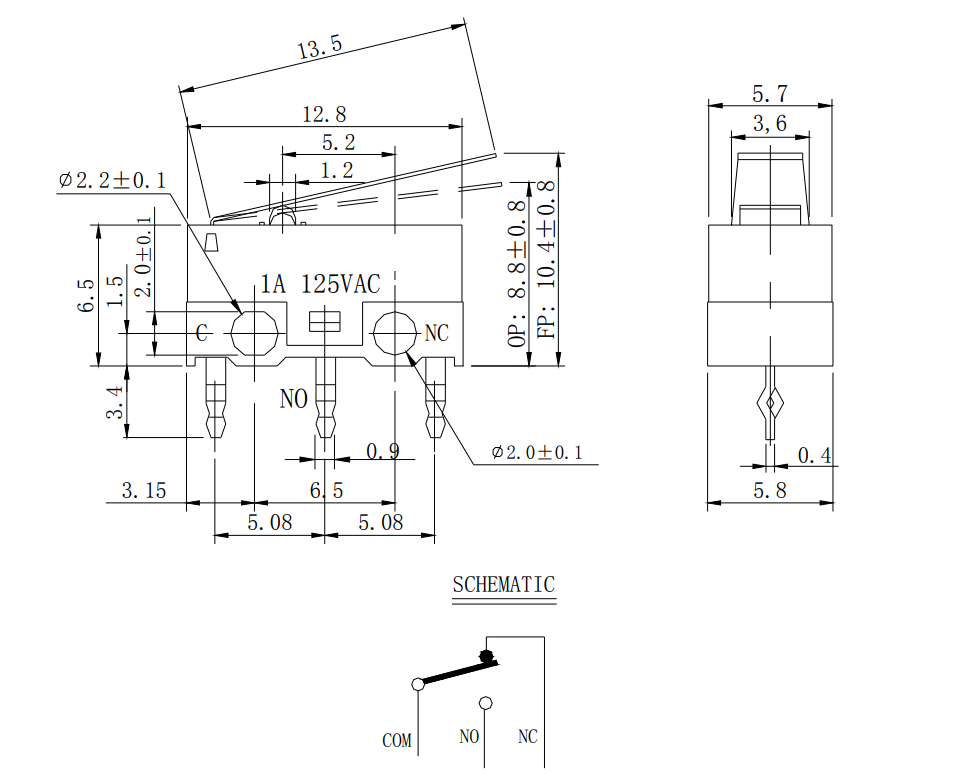

      DIMENSIONS
      ModelDimensions
      MS-1135MS-1135

      MS-1135

      ModelDimensions
      MS-1135MS-1135

      MS-1135
