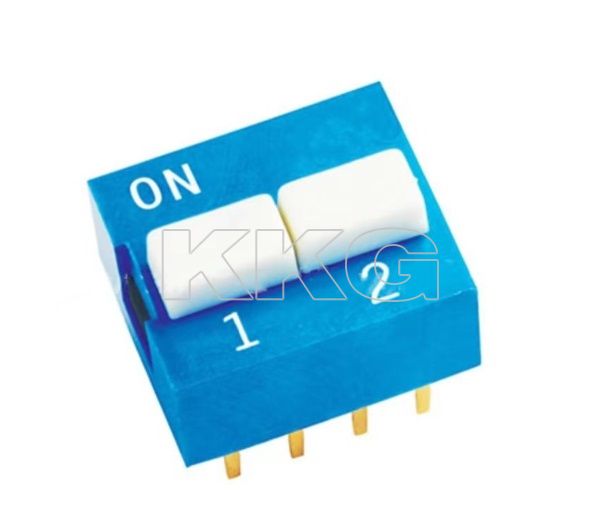

       DIP SWITCH 撥碼開關


























        DIP-DE series




              DIP-DE series













       DOUBLE DIP SWITCH


      DIP-DE series

      立式/臥式 雙聯撥碼開關

FEATURE
? 2.54mm
? Vertical DIP
? Double Dip

APPLICATIONS
? Data processing, communication, remote control, anti-theft automatic alarm system, air shower room, air conditioning control panel, train model, etc.










      產品說明


      COMMON SPECIFICATIONS
      CharacteristicsSpecification
      工作溫度範圍/Operating temperature range-20°C to 70°C
      間距/Spacing2.54mm
      機械壽命/Mechanical Life2000 operations per swith
      接觸電阻/Contact Resistance50MΩmax
      行程/Sroke2.0mm

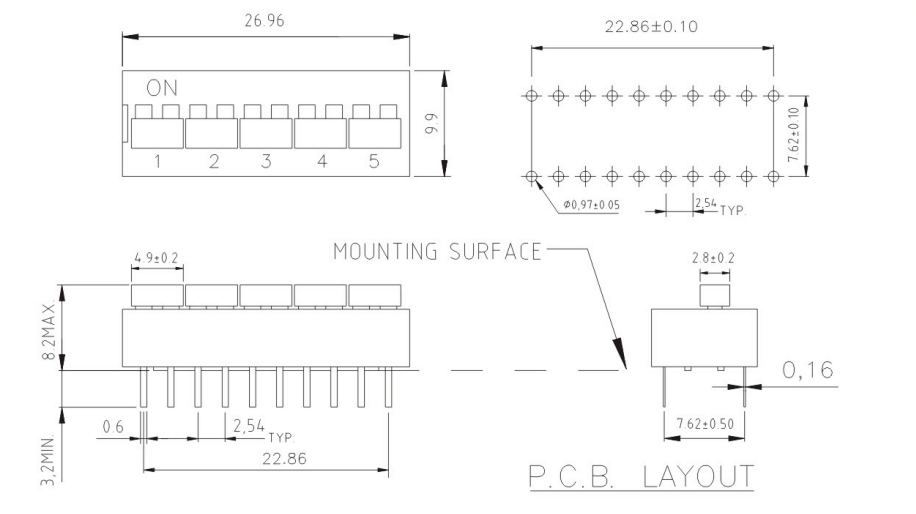

      DIMENSIONS
      ModelDimensions
      DE-05RDIP-DE series

      DIP-DE series


      ModelDimensions
      DE-02BDIP-DE series

      DIP-DE series
