SENSORY SWITCH 感應開關

Vibration sensor switch

VS-342

傳感開關 FEATURE ?Φ3.40mm ?Vibration trigger APPLICATIONS ? Digital photo frame rotation, automation device, household appliances, tire pressure monitoring, Smart meter , water meter ,smart gas

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電壓/Voltage	1.5-12V
電流/Current	＜20mA
導通時間/ON time	about 2ms
閉路電阻/Closed circuit resistance	＜30A
開路電阻/Open circuit resistance	＜10mA
耐溫/Temperature resistance	-40℃+80℃
使用壽命/Service life	2000000 times

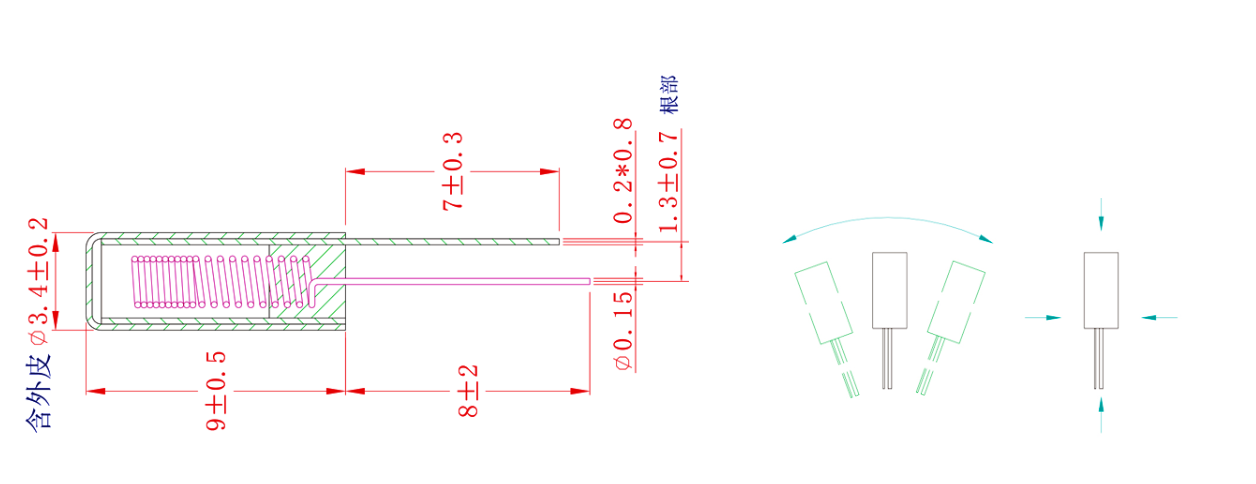

DIMENSIONS

Unit:mm

Model	Dimensions
VS-342
