MICRO SWITCH 微動開關

DIP micro switch

MS-1162

立式DIP 微動開關 FEATURE ? 19.80mm*10.60mm ? Vertical DIP APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25°C ~ +80°C
操作力/Operating force	13g，35g
尺寸/Dimension	19.80mm*10.60mm
機械壽命/Mechanical Life	100,000 Cycles
接觸電阻/Contact Resistance	50MΩ
絕緣電阻/Insulation resistance	100 MΩ Mim. 500V DC
承受電壓/Withatand Voltage	AC 1,000 V 1 Minute

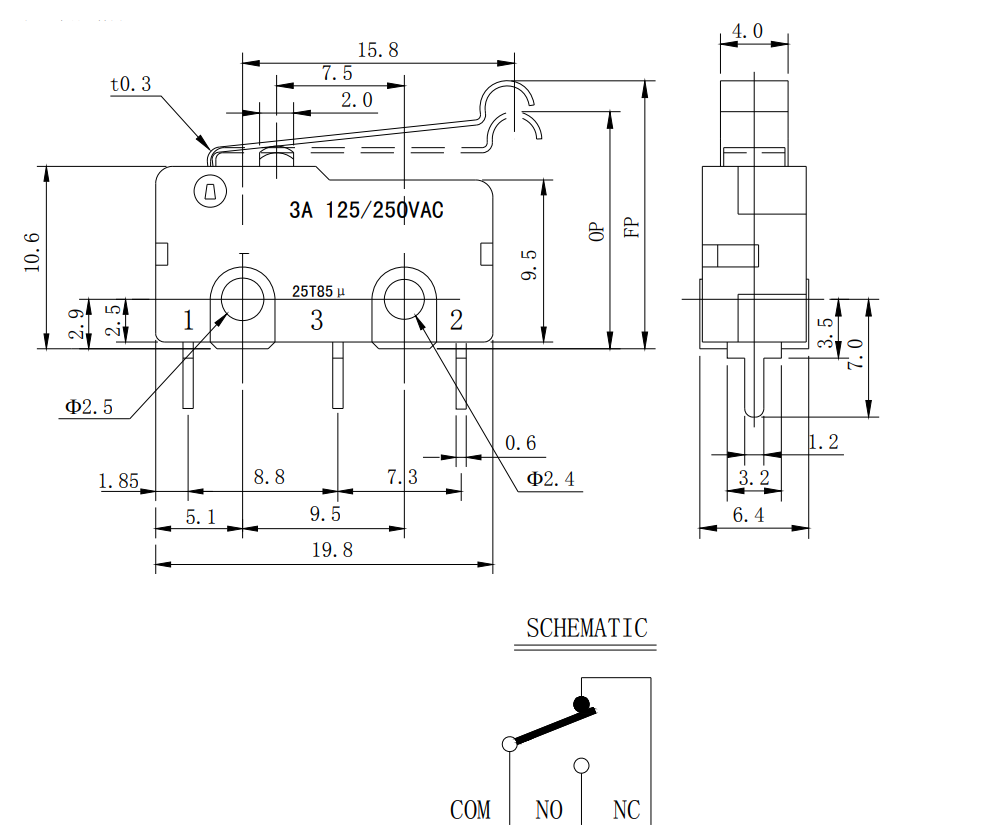

DIMENSIONS

Model	Dimensions
MS-1162

Model

Dimensions

MS-1162
