RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45-9501 1X1 8P 全塑圓針

RJ45 network interface series

RJ45-9501 1X1 8P 全塑圓針

RJ45網(wǎng)絡(luò)接口 FEATURE ?18.20mm*15.20mm ?1X1 8P all plastic round needle APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強度/Dielectric strength	1000VAC RMS 50HZ 1MIN

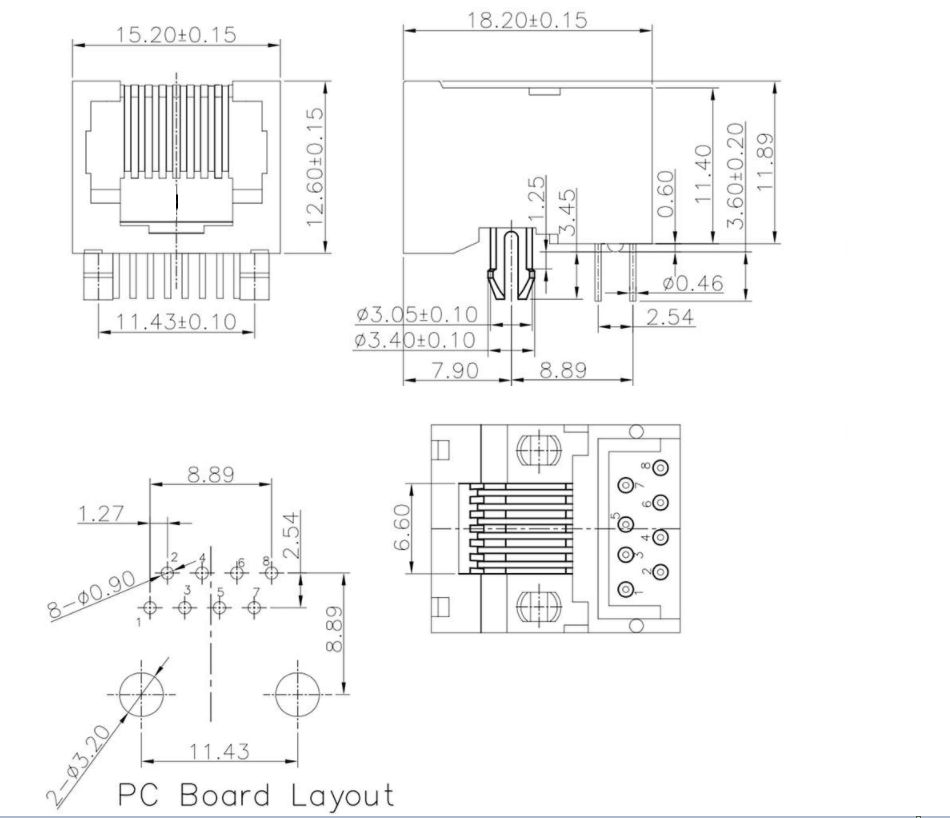

DIMENSIONS

Unit:mm

Model	Dimensions
RJ45-9501 1X1 8P 全塑圓針
