MICRO SWITCH 微動開關

16A DIP micro switch

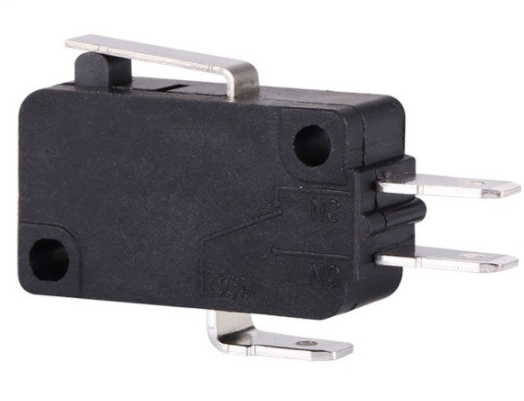

MS-2790

臥式DIP 微動開關 FEATURE ? 27.90mm*10.30mm ? Horizontal DIP APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-25°C ~ +80°C
操作力/Operating force	80g
尺寸/Dimension	27.90mm*10.30mm
機械壽命/Mechanical Life	100,000 Cycles
接觸電阻/Contact Resistance	50MΩ
絕緣電阻/Insulation resistance	100 MΩ Mim. 500V DC
承受電壓/Withatand Voltage	AC 1,000 V 1 Minute

DIMENSIONS

Model	Dimensions
MS-2790
