RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45 network interface series

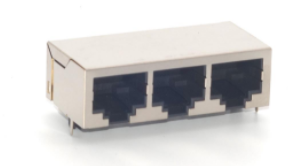

RJ45-9903 1X3 全包圓針

RJ45網(wǎng)絡(luò)接口 FEATURE ?44.95mm*21.20mm ?9903 1X3 full package round needle APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

檔案下載產(chǎn)品詢價

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強(qiáng)度/Dielectric strength	1000VAC RMS 50HZ 1MIN

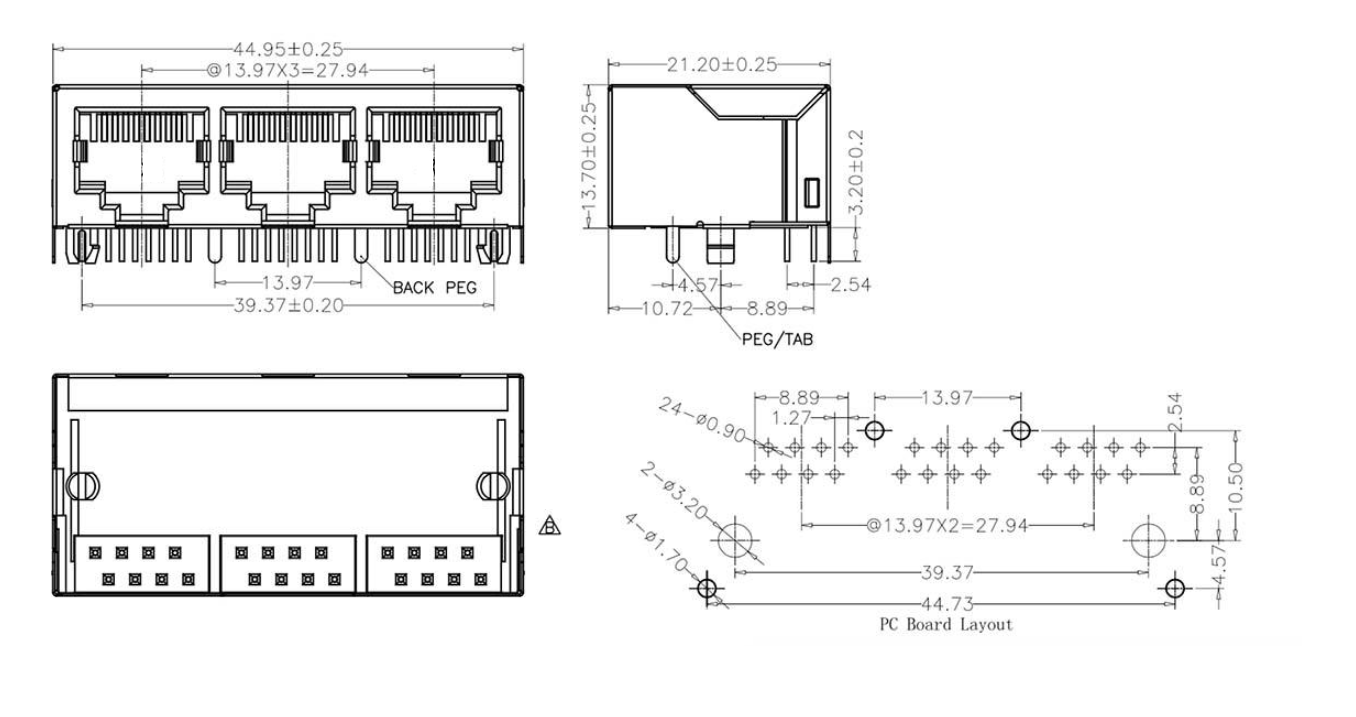

Unit:mm

Model	Dimensions
RJ45-9903 1X3 全包圓針
