RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45 network interface series

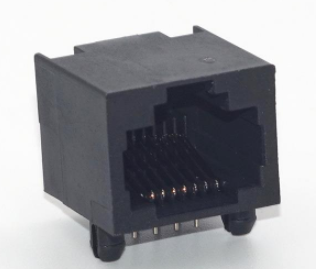

RJ45-9804 1X1 全塑圓針

RJ45網(wǎng)絡(luò)接口 FEATURE ?15.71mm*15.10mm ?9804 1X1 all plastic round needle APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強(qiáng)度/Dielectric strength	1000VAC RMS 50HZ 1MIN

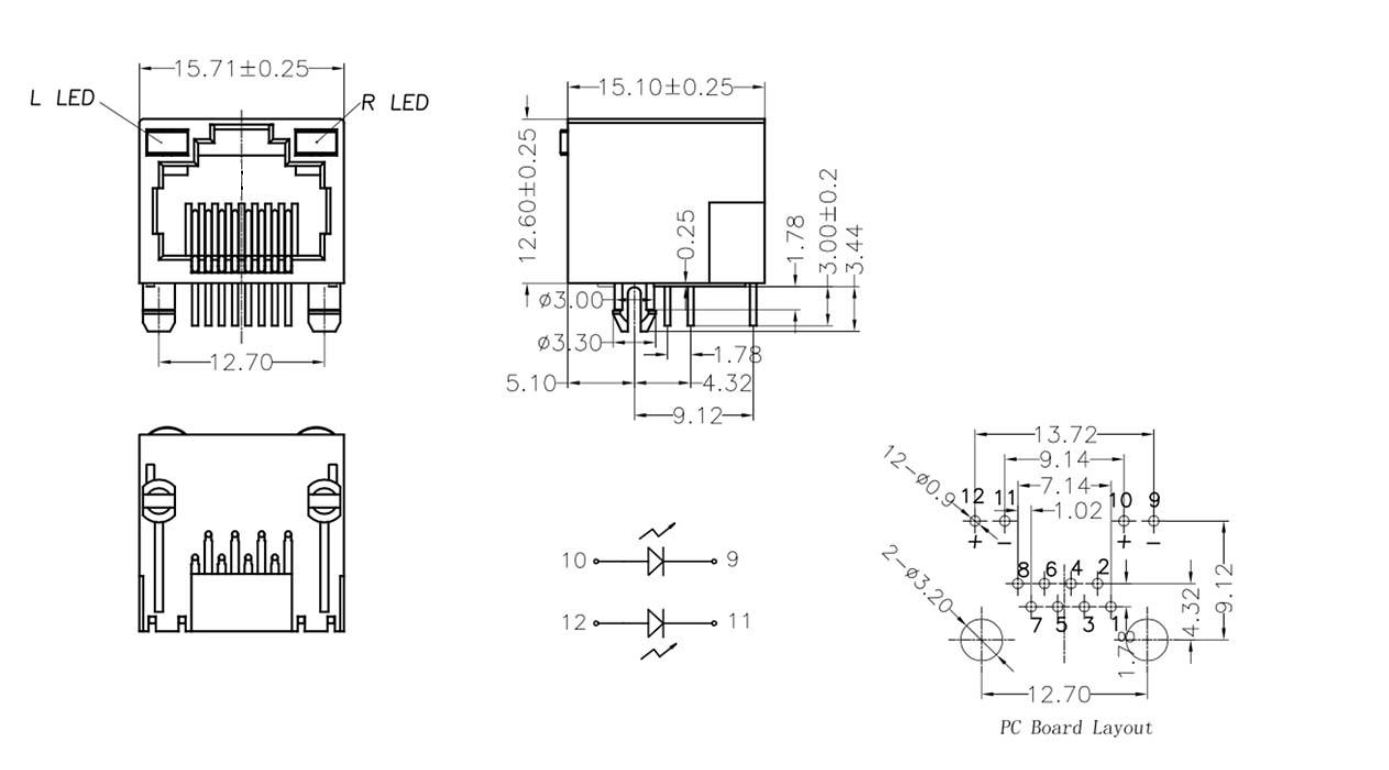

Unit:mm

Model	Dimensions
RJ45-9804 1X1 全塑圓針

Model

Dimensions

RJ45-9804 1X1 全塑圓針 RJ45-9804 1X1 全塑圓針
