RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ45 network interface series

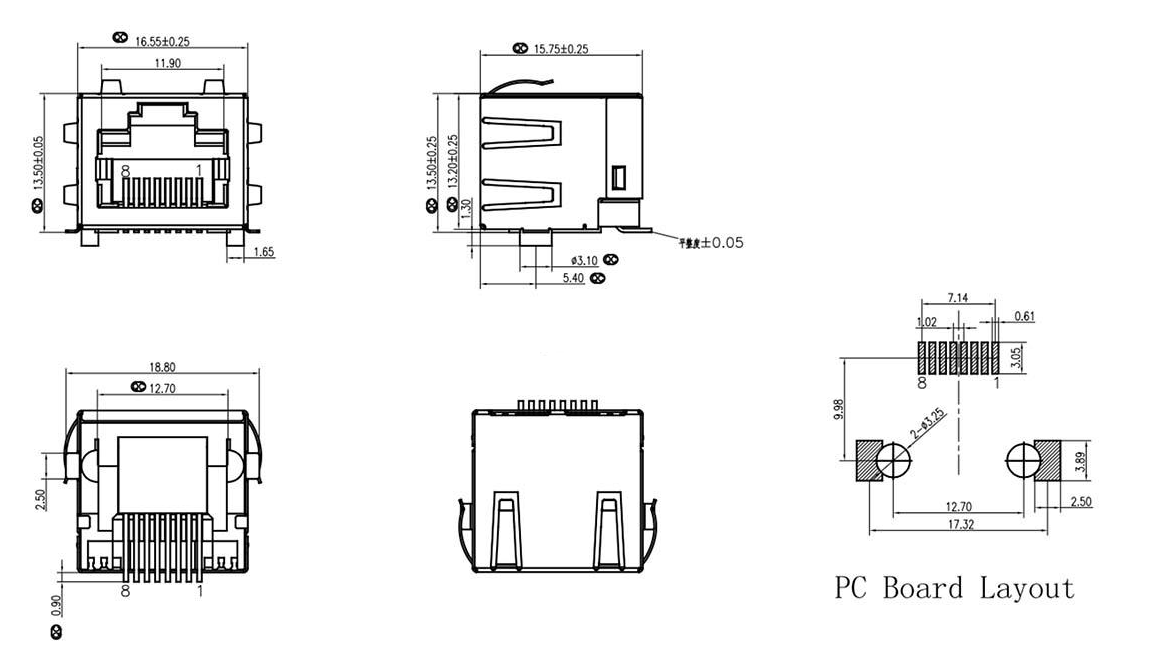

RJ45-9805 1X1 全包無燈扁針SMT

RJ45網絡接口 FEATURE ?15.75mm*16.55mm ?9805 1X1 full package without light flat pin SMT APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強度/Dielectric strength	1000VAC RMS 50HZ 1MIN
