RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ11-524G 1X1 4P

RJ11 network interface series

RJ11-524G 1X1 4P

RJ11網絡接口 FEATURE ?14.00mm*13.35mm ?524G 1X1 4P APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強度/Dielectric strength	1000VAC RMS 50HZ 1MIN

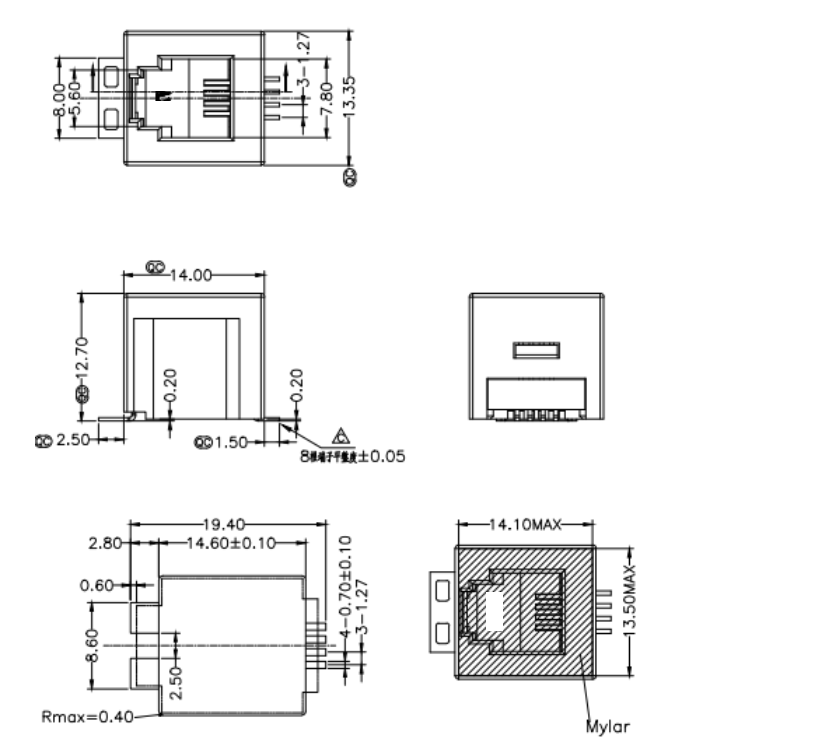

DIMENSIONS

Unit:mm

Model

Dimensions

RJ11-524G 1X1 4P

RJ11-524G 1X1 4P
