RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座

RJ11 network interface series

RJ11-8001 1X1 6P4C 全塑無耳

RJ11網絡接口 FEATURE ?13.00mm*12.20mm ?8001 1X1 6P4C all plastic without ears APPLICATIONS ? LCD TV, router, switch, tablet PC, projector

Characteristics	Specification
額定電壓/Rated voltage	125VAC RMS
電流/Current	1.5AMP
接觸電阻/Contact resistance	50MILLIOHMS MAX
絕緣電阻/Insulation resistance	500VDC
介電強度/Dielectric strength	1000VAC RMS 50HZ 1MIN

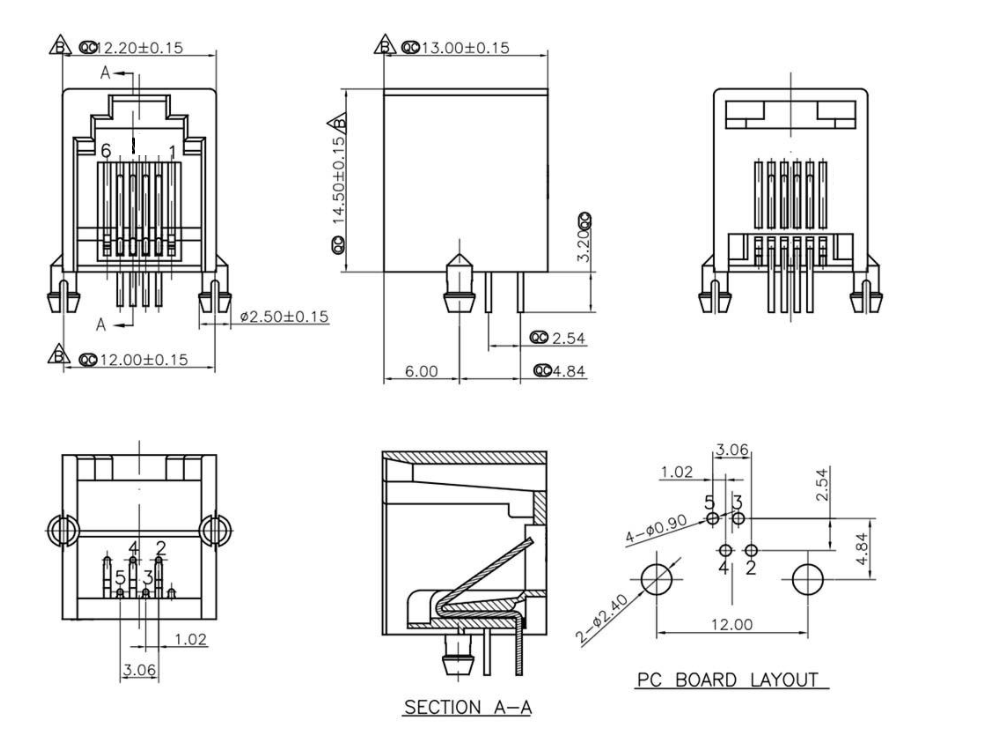

Unit:mm

Model	Dimensions
RJ11-8001 1X1 6P4C 全塑無耳

Model

Dimensions

RJ11-8001 1X1 6P4C 全塑無耳 RJ11-8001 1X1 6P4C 全塑無耳
