RJ/ TRANSFORMER SOCKET RJ/ Transformer 插座
RJ45+Transformer series
RJ45-524T 1X1
RJ45+Transformer網絡接口
FEATURE
?16.90mm*15.95mm
?524T 1X1
APPLICATIONS
? LCD TV, router, switch, tablet PC, projector
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電壓/Rated voltage | 125VAC RMS |
|---|
| 電流/Current | 1.5AMP |
|---|
| 接觸電阻/Contact resistance | 50MILLIOHMS MAX |
|---|
| 絕緣電阻/Insulation resistance | 500VDC |
|---|
| 介電強度/Dielectric strength | 1000VAC RMS 50HZ 1MIN |
|---|

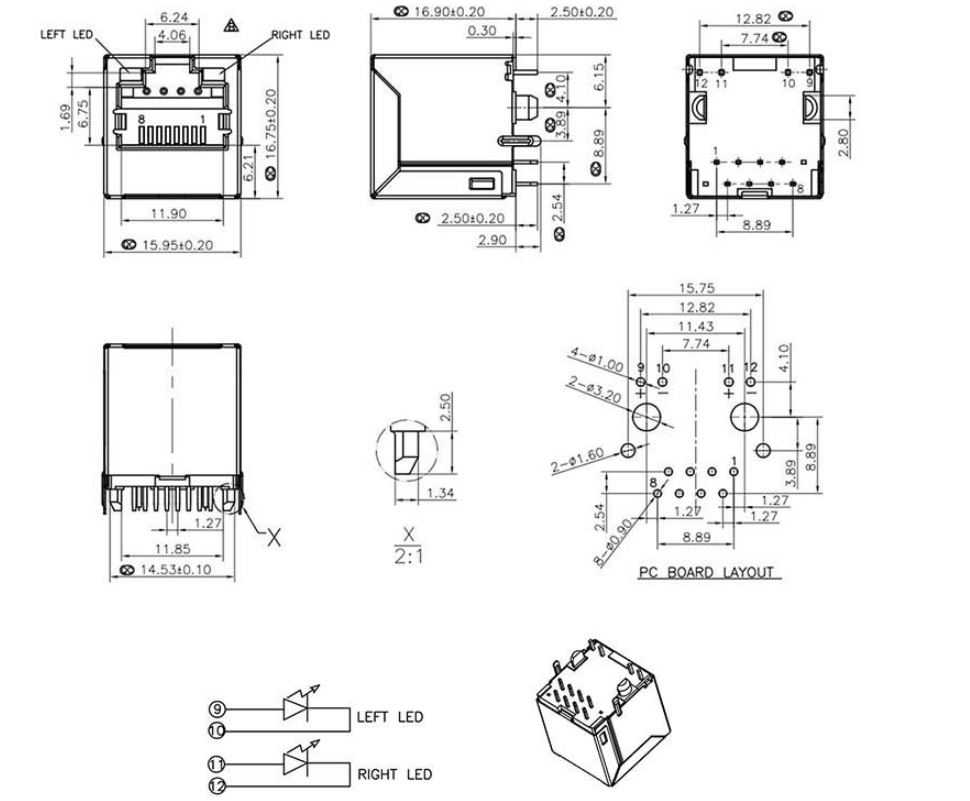

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
RJ45-524T 1X1
|  |
GO TOP
-
-
-
-
