HDMI cable series
HDMI22-3515-161038
HDMI22-3515-161038
FEATURE
?6.50mm*7.50mm
?Wave soldering
APPLICATIONS
? LCD TV connection, server connection, security connection, medical equipment connection, smart wearable connection
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電壓/Rated voltage | 30V AC |
|---|
| 電流/Current | 0.5A |
|---|
| 接觸電阻/Contact resistance | 30M? MAX |
|---|
| 絕緣電阻/Insulation resistance | 100M? MIN |
|---|
| 使用壽命/Operating life | 5000cycles |
|---|

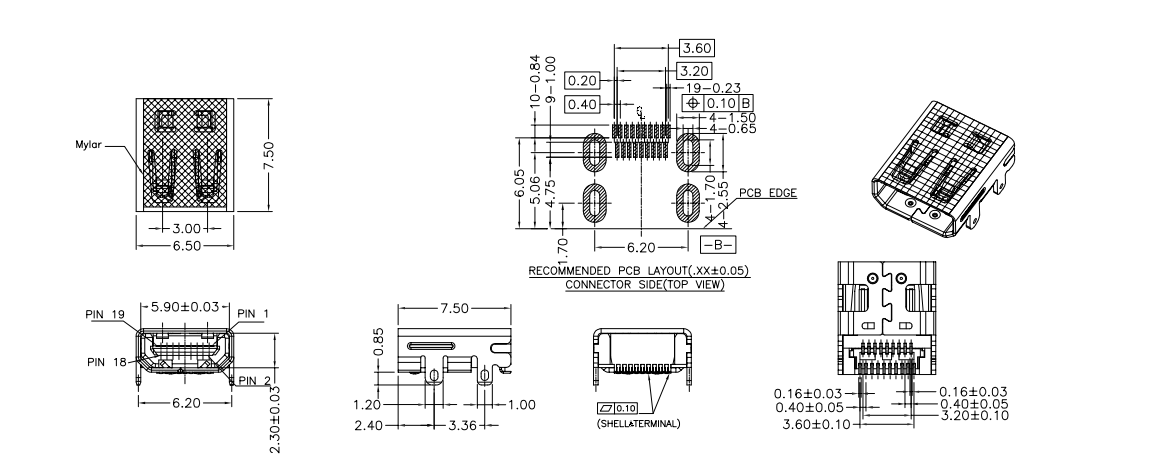

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
HDMI22-3515-161038
 |  |
