PIN 排針

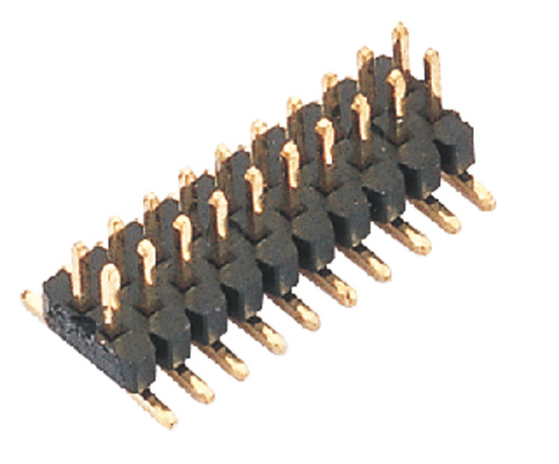

1.0mm pitch double row needle

PIN1.0-004

SMT VERTICAL / PIN CONNECTOR 1.0mm/1.50mm FEATURE ? 1.00mm pitch ? Single plastic stand APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產(chǎn)品詢價

pin1.0-004

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	1.0mm/1.5mm
額定電流/Rated current	0.75 APM
接觸阻抗/Contact resistance	20mΩ Max

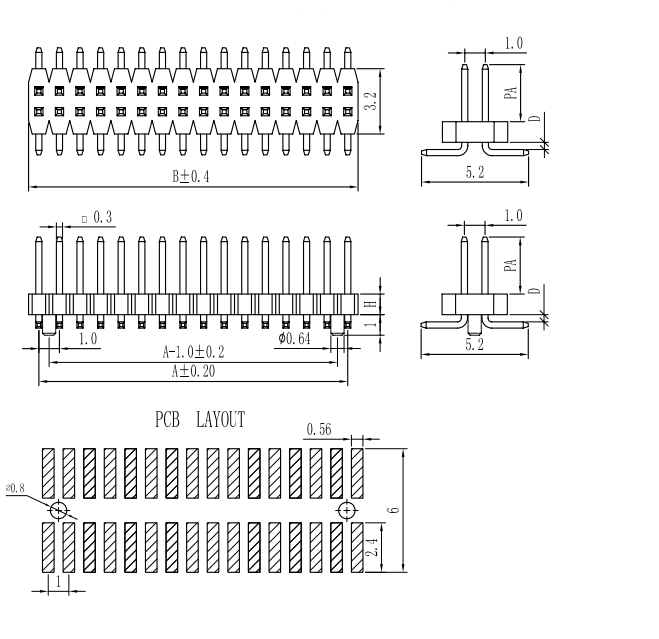

DIMENSIONS

Unit:mm

Model	Dimensions
PIN1.0-004

Model

Dimensions

PIN1.0-004
