PIN 排針

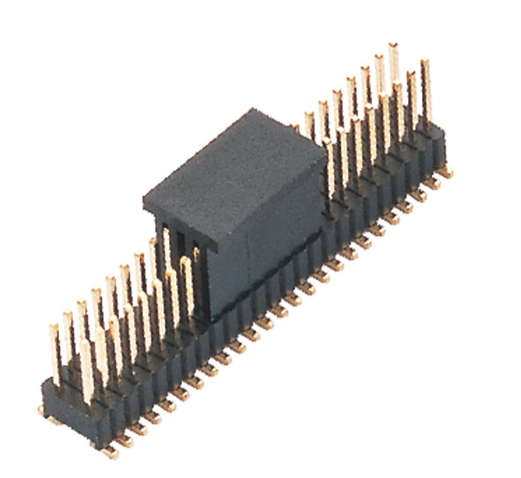

1.27mm pitch double row needle

PIN1.27-005

SMT VERTICAL / PIN CONNECTOR 1.7mm/2.54mm FEATURE ? 1.27mm pitch ? High temperature resistance APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產(chǎn)品詢價(jià)

PIN1.27-005

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	1.7/2.54mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

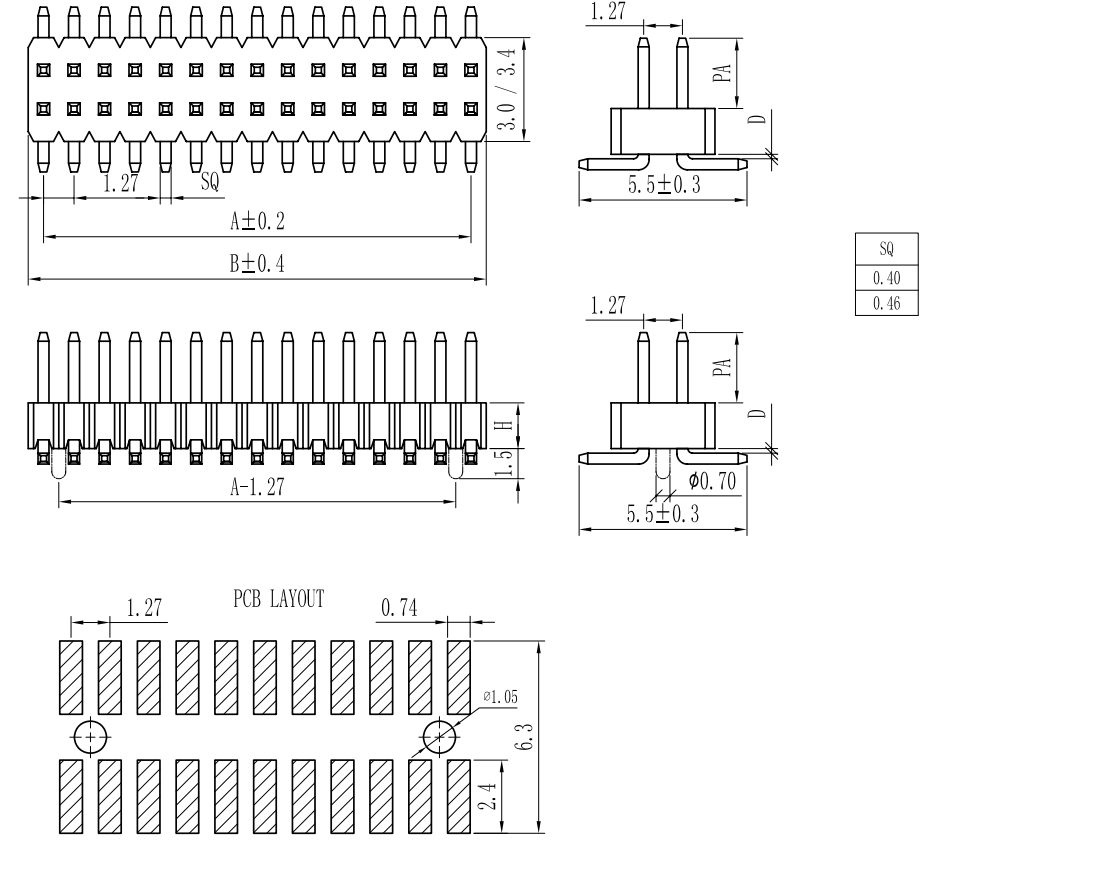

DIMENSIONS

Unit:mm

Model	Dimensions
PIN1.27-005

Model

Dimensions

PIN1.27-005
