PIN 排針

1.27mm pitch double row needle

PIN1.27-008

DIP VERTICAL / PIN CONNECTOR 1.7mm/2.54mm FEATURE ? 1.27mm pitch ? Multi-plastic vertical stickers APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產品詢價

PIN1.27-008

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	1.7/2.54mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

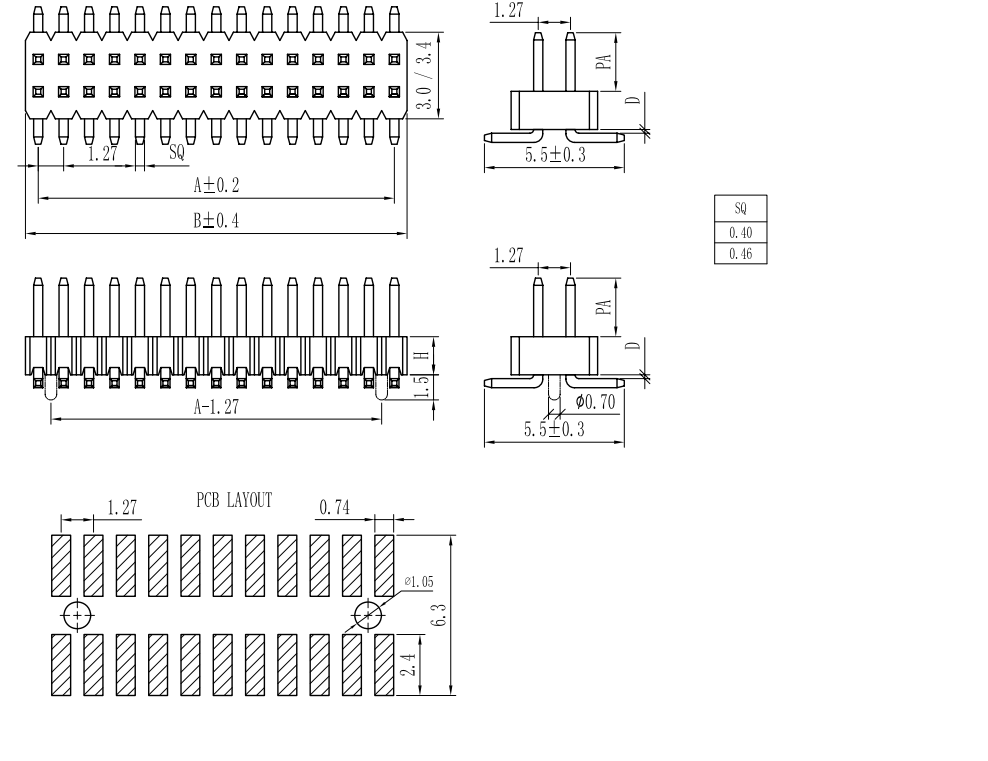

DIMENSIONS

Unit:mm

Model	Dimensions
PIN1.27-008

Model

Dimensions

PIN1.27-008
