PIN 排針

2.00mm pitch double row needle

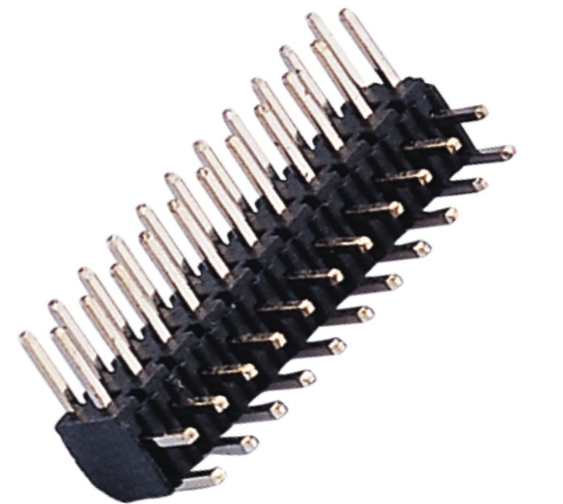

PIN2.0-011

Horizontal DIP / PIN CONNECTOR 4.0mm塑高 / 雙排針 FEATURE ? 2.00mm pitch ? High temperature resistance APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產品詢價

PIN2.0-011

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	4.0mm
額定電流/Rated current	2.0APM
接觸阻抗/Contact resistance	20mΩ Max

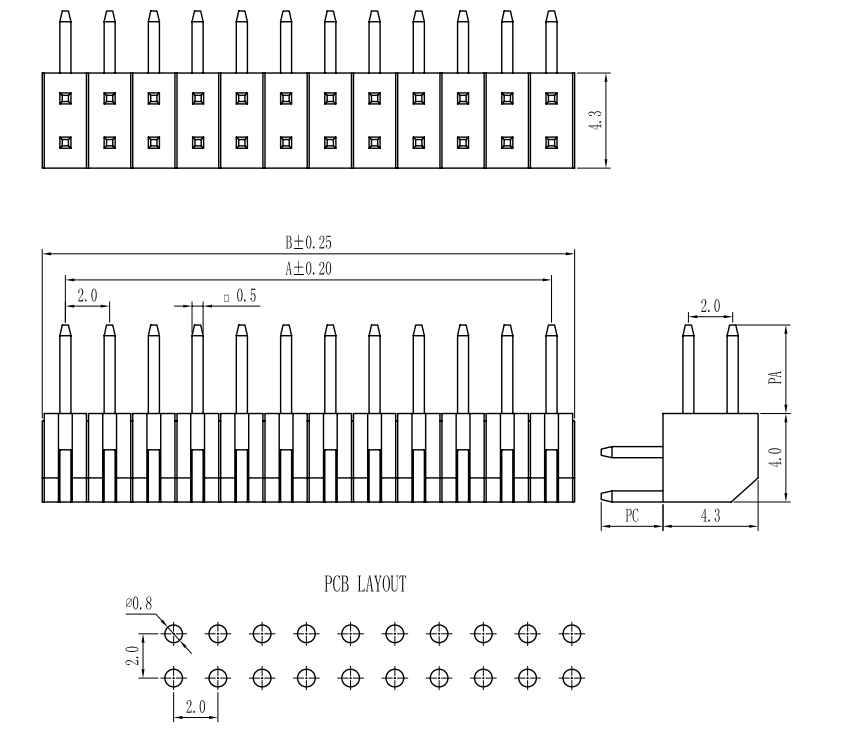

DIMENSIONS

Unit:mm

Model	Dimensions
PIN2.0-011

Model

Dimensions

PIN2.0-011
