PIN 排針

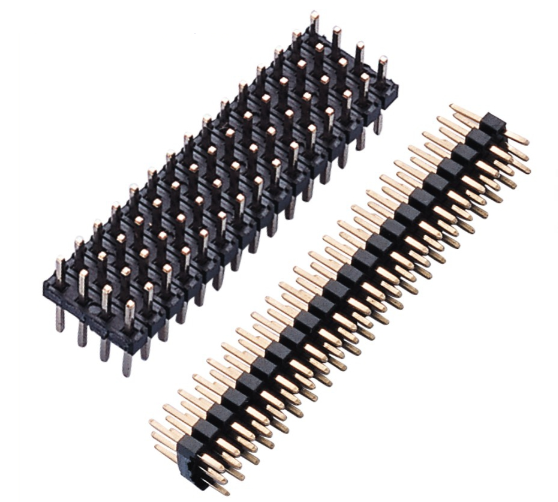

2.00 pitch four rows of needles

PIN2.0-012

Vertical DIP / PIN CONNECTOR 1.5/2.0mm塑高 / 四排針 FEATURE ? 2.00mm pitch ? High temperature resistance APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產(chǎn)品詢價

PIN2.0-012

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	1.50/2.00mm
額定電流/Rated current	2.0APM
接觸阻抗/Contact resistance	20mΩ Max

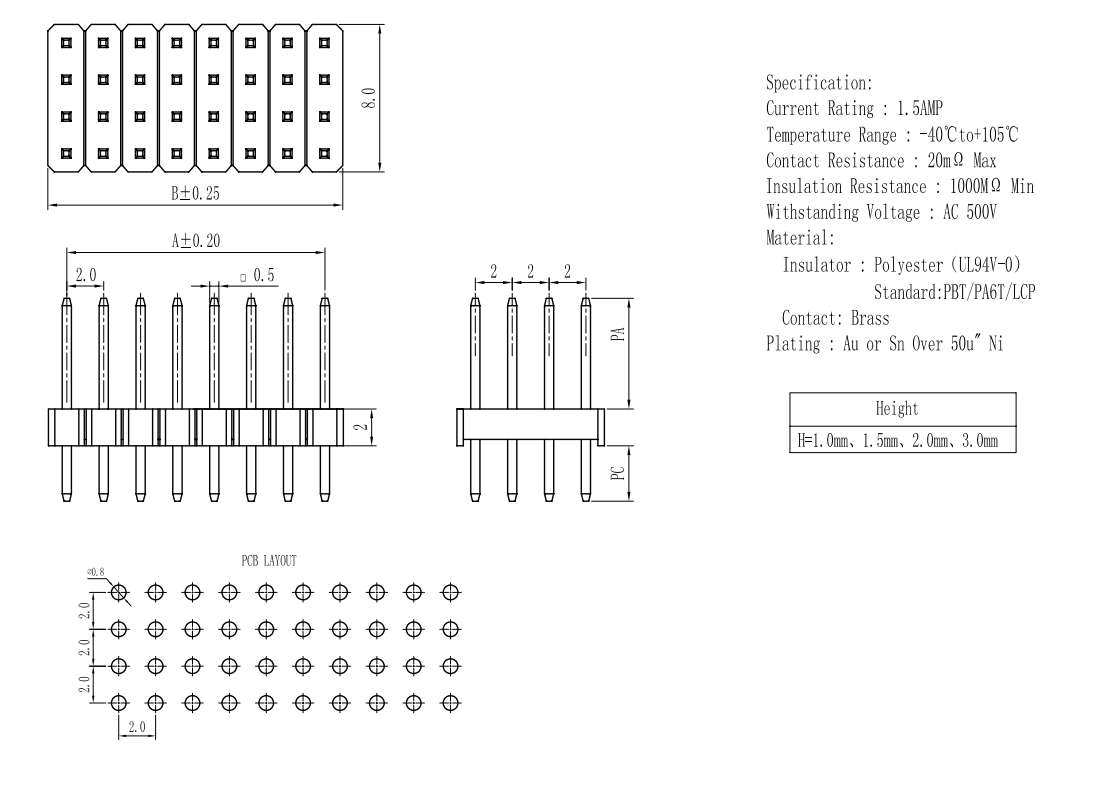

DIMENSIONS

Unit:mm

Model	Dimensions
PIN2.0-012

Model

Dimensions

PIN2.0-012
