PIN 排針

2.5mm pitch single row needle

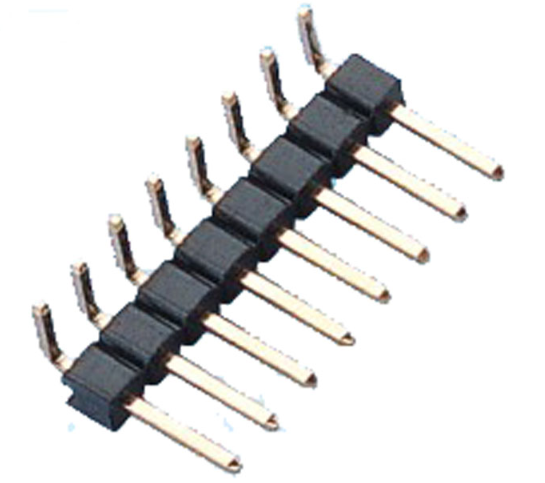

PIN2.5-015

Horizontal DIP / PIN CONNECTOR 3.30塑高 / 單排針 FEATURE ? 2.50mm pitch ? High temperature resistance APPLICATIONS ? Used in general connection devices in electronics, electrical appliances, meters, etc.

檔案下載產(chǎn)品詢價

PIN2.5-015

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	3.30mm
額定電流/Rated current	3.0APM
接觸阻抗/Contact resistance	20mΩ Max

DIMENSIONS

Unit:mm

Model	Dimensions
PIN2.5-015

Model

Dimensions

PIN2.5-015
