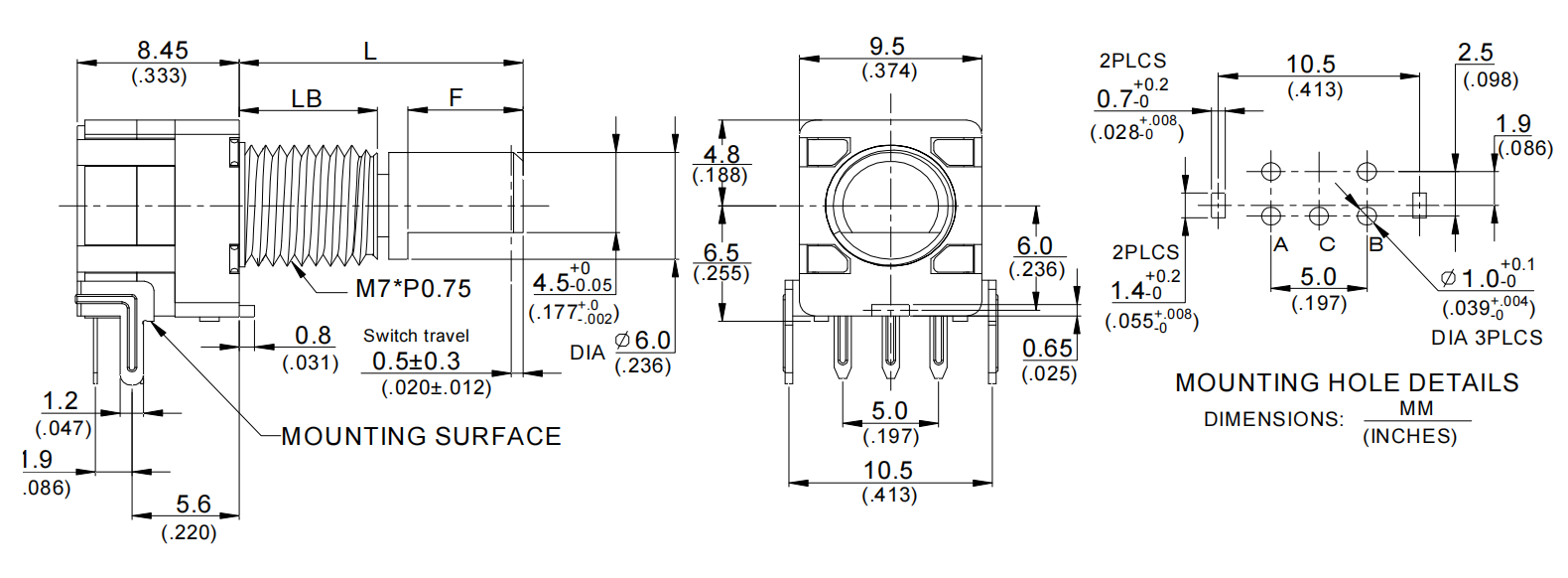

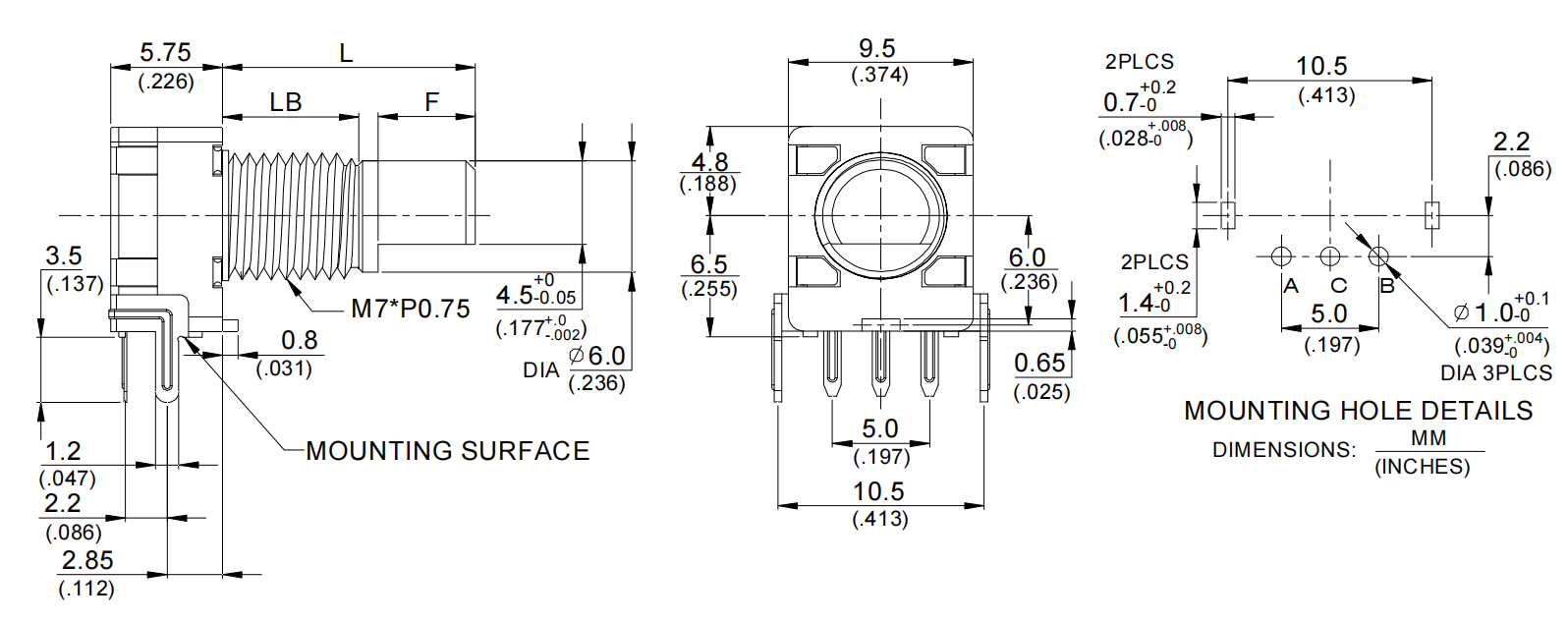

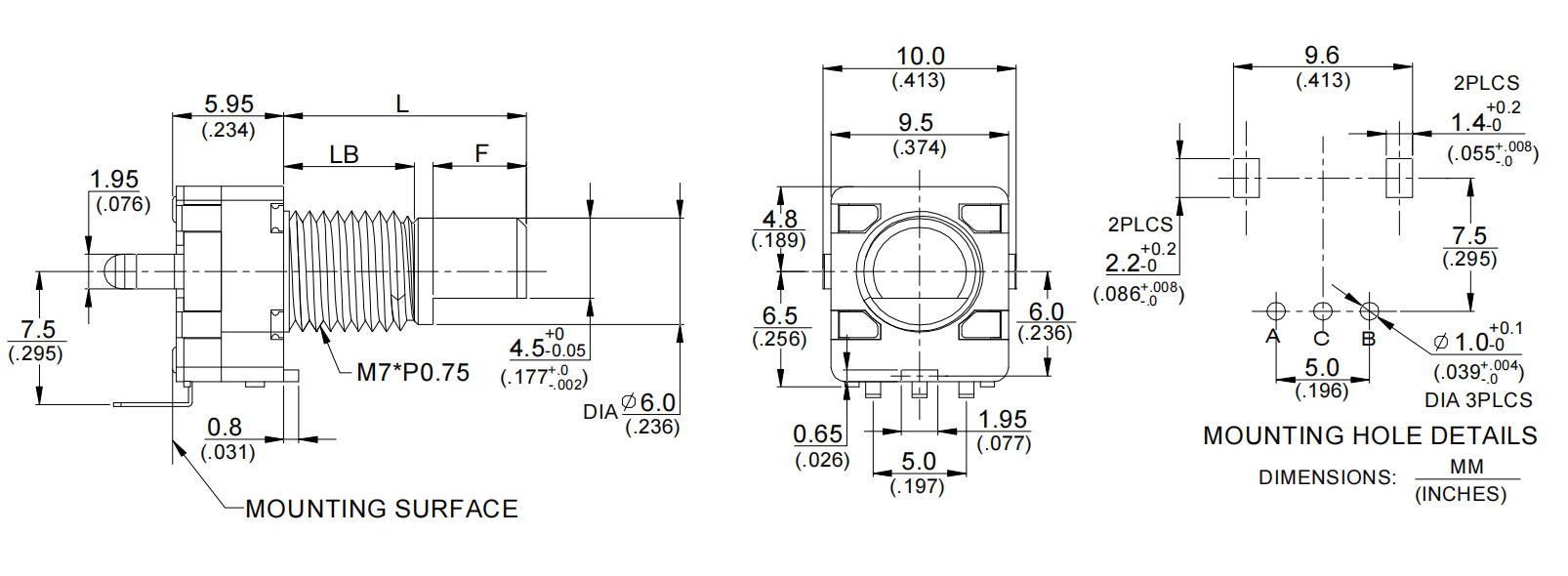

EC09 series

旋轉編碼開關/金屬軸 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.

檔案下載產品詢價

EC09

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度/Operating Temperature	-10℃~+70℃
操作力矩/Shaft Rotation Force	20gf.cm~200gf.cm
全回轉角度/Total Rotation Angle	360o
額定功率/Power Rating	DC5V
絕緣電阻/Insulation resistance	More than 100MΩ
接觸電阻/Contact resistance	1Ω Max
耐電壓/Withstand Voltage	For 1 minute at 300V AC
回轉壽命/Rotational life	30,000 cycles
