HOLLOW SHAFT ENCODER 金屬軸

Encoder/Metal shaft

EC11 series

旋轉編碼開關/金屬軸 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.

檔案下載產品詢價

EC11

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度/Operating Temperature	-20℃~+70℃
操作力矩/Shaft Rotation Force	20gf.cm~200gf.cm
全回轉角度/Total Rotation Angle	360o
額定功率/Power Rating	DC5V
絕緣電阻/Insulation resistance	More than 100MΩ
接觸電阻/Contact resistance	1Ω Max
耐電壓/Withstand Voltage	For 1 minute at 300V AC
回轉壽命/Rotational life	100,000 cycles

DIMENSIONS

Unit:mm

Model

Dimensions

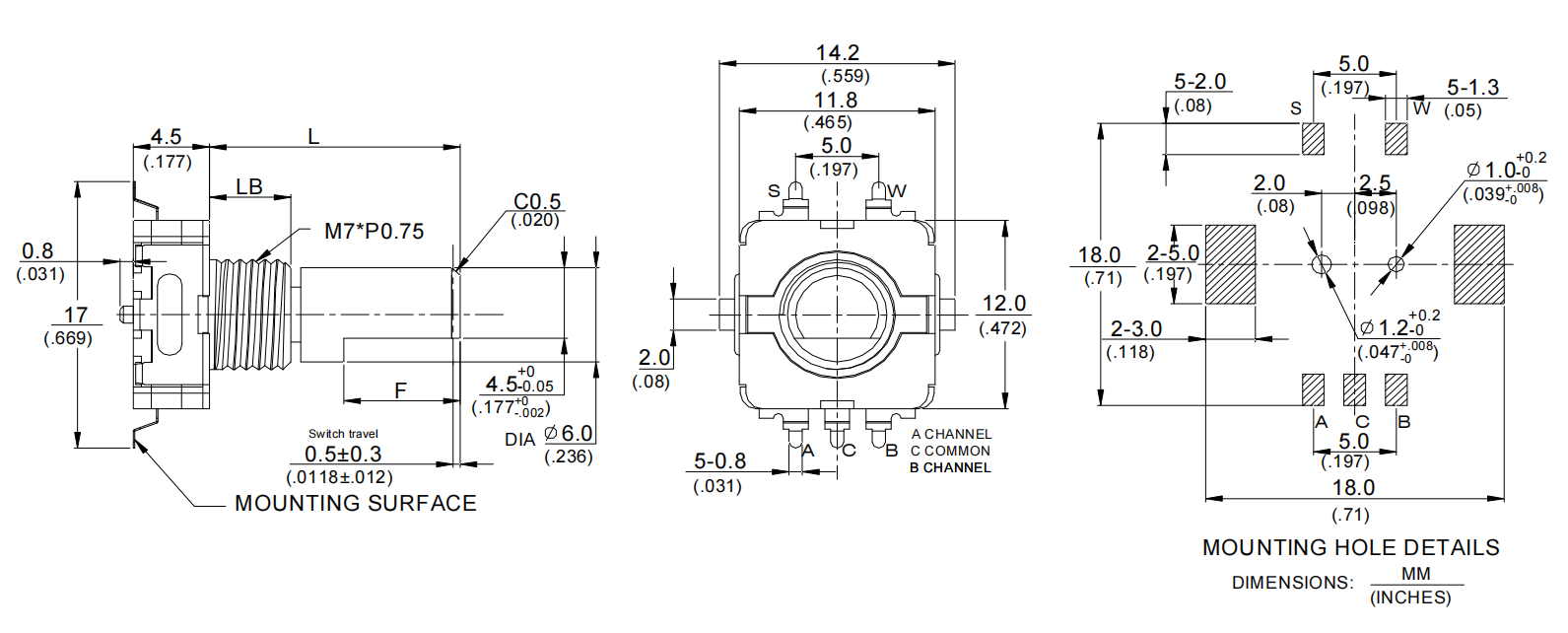

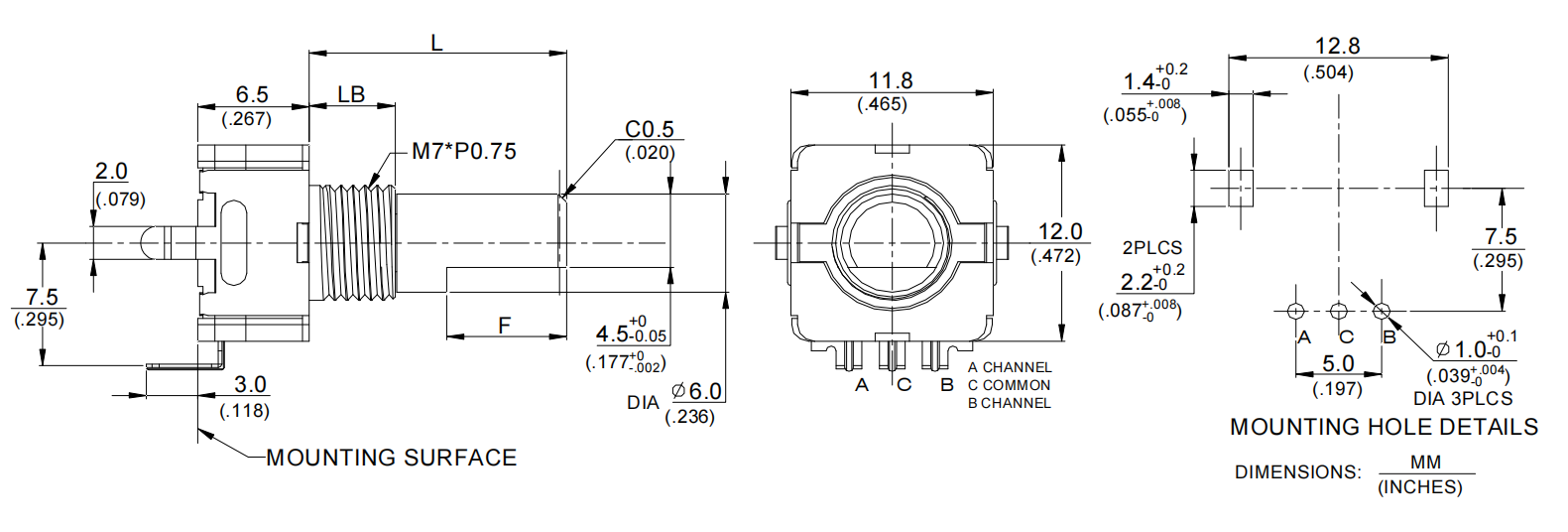

EC1112S EC11 series

EC11 series

Model

Dimensions

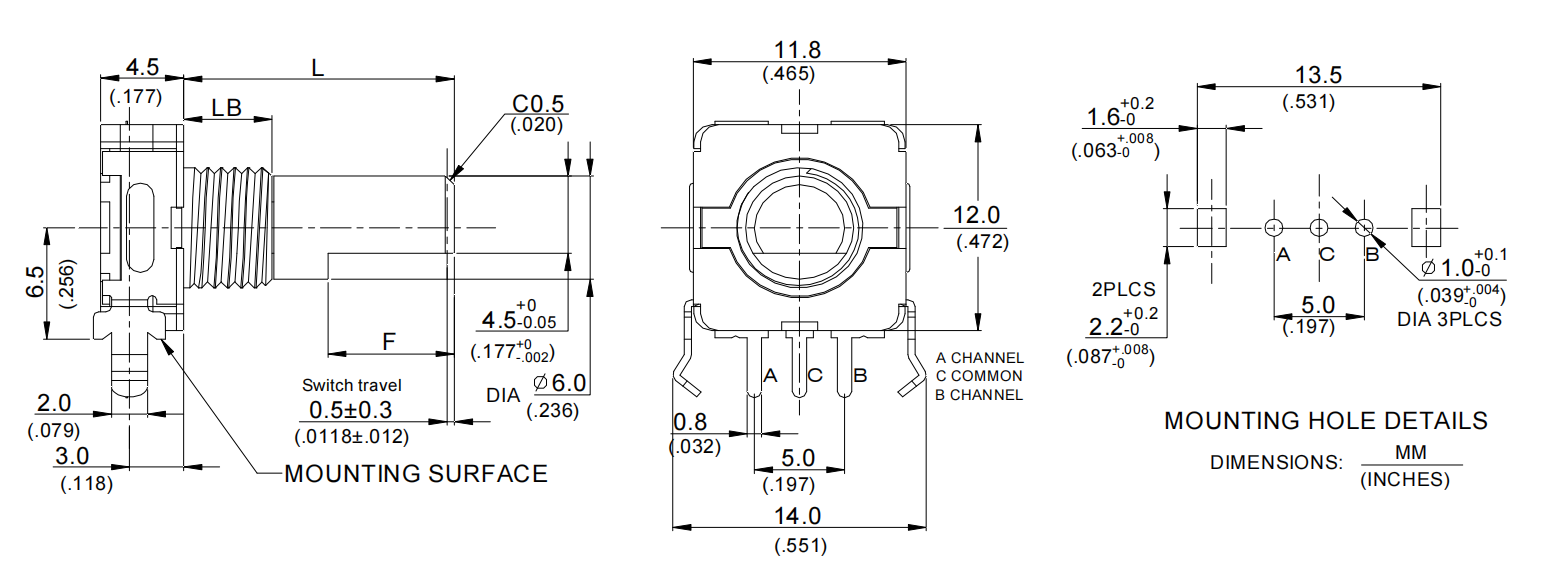

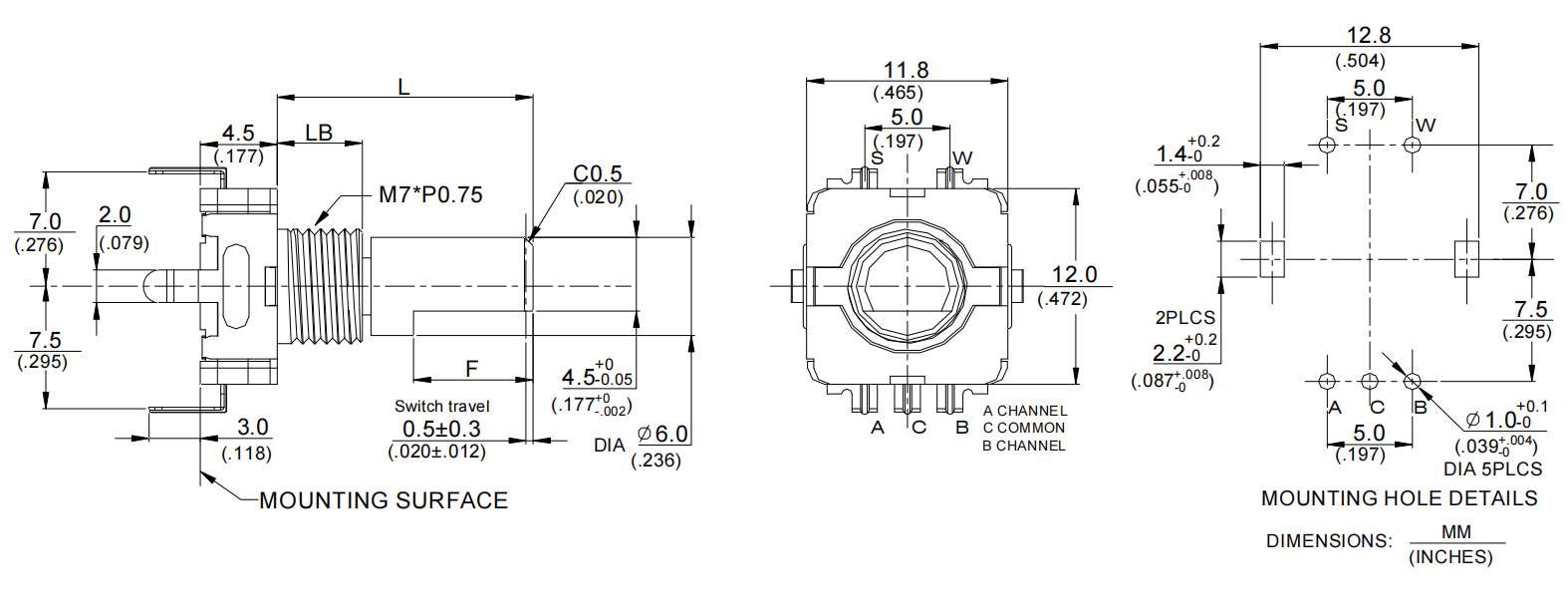

EC1112 EC11 series

EC11 series

Model

Dimensions

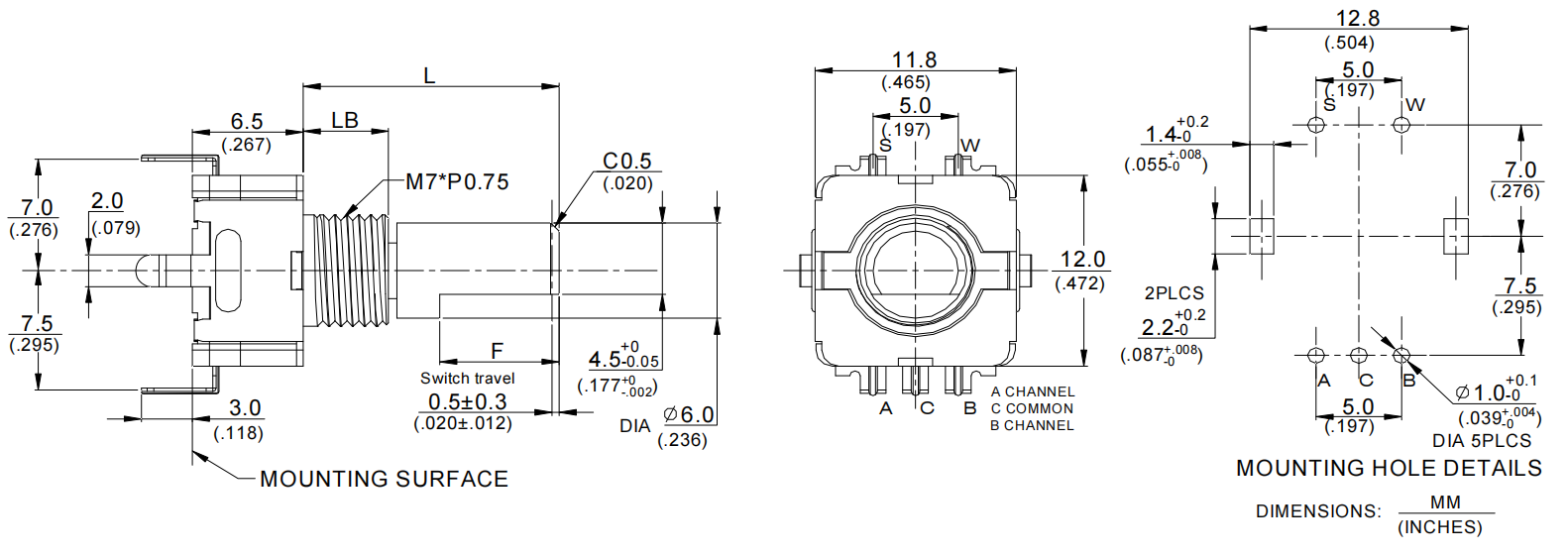

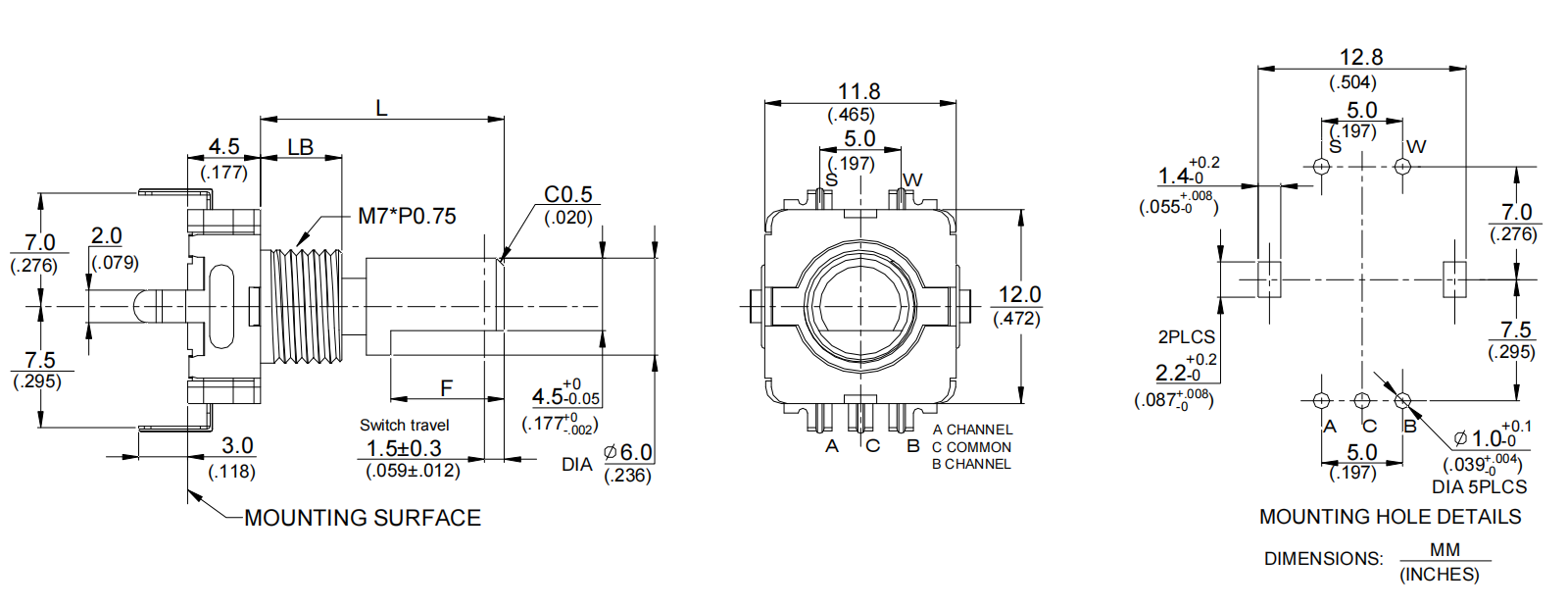

EC1122S EC11 series

EC11 series

Model

Dimensions

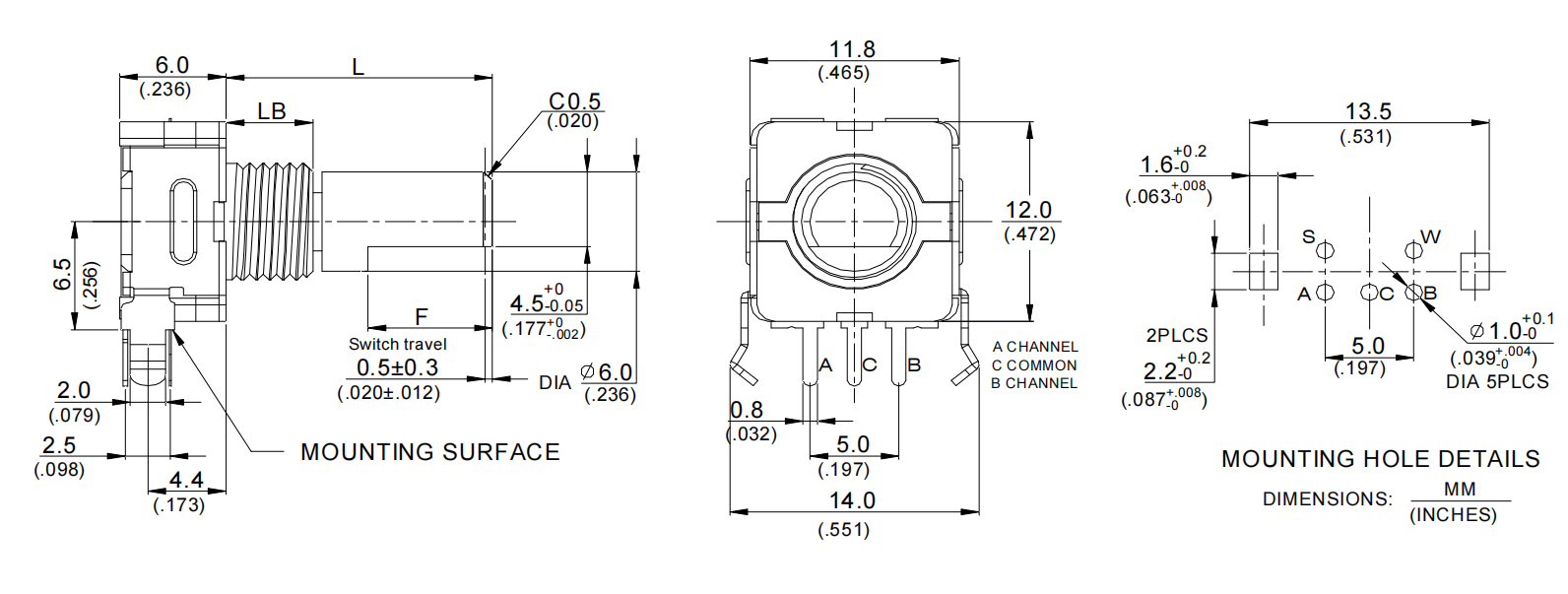

EC1122 EC11 series

EC11 series

Model

Dimensions

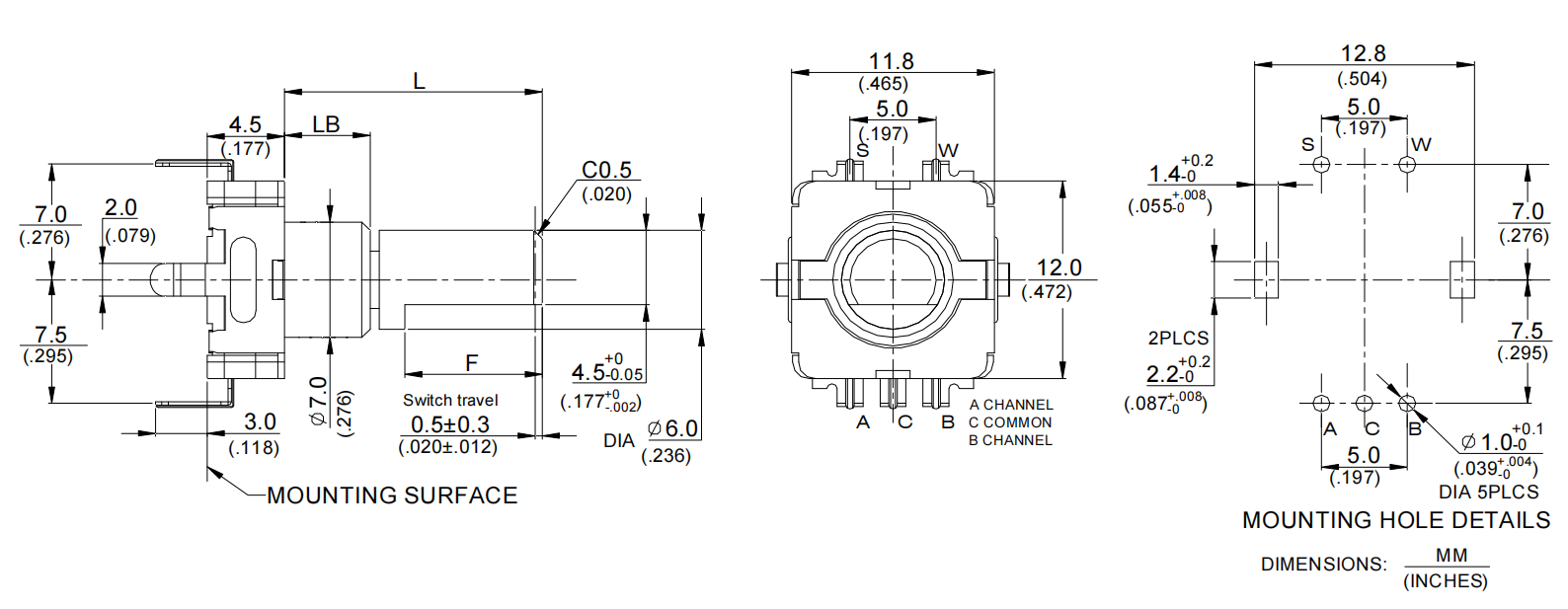

EC1112S-B5 EC11 series

EC11 series

Model

Dimensions

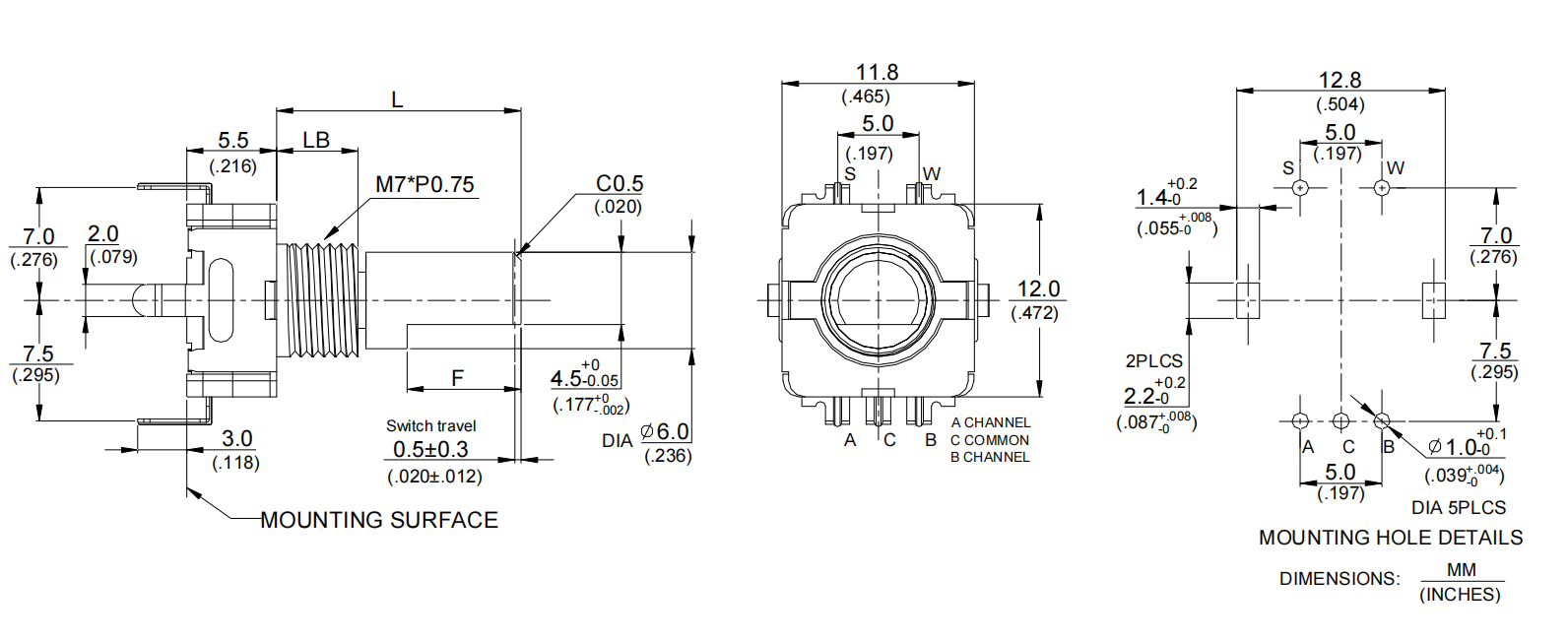

EC1155S EC11 series

EC11 series

Model

Dimensions

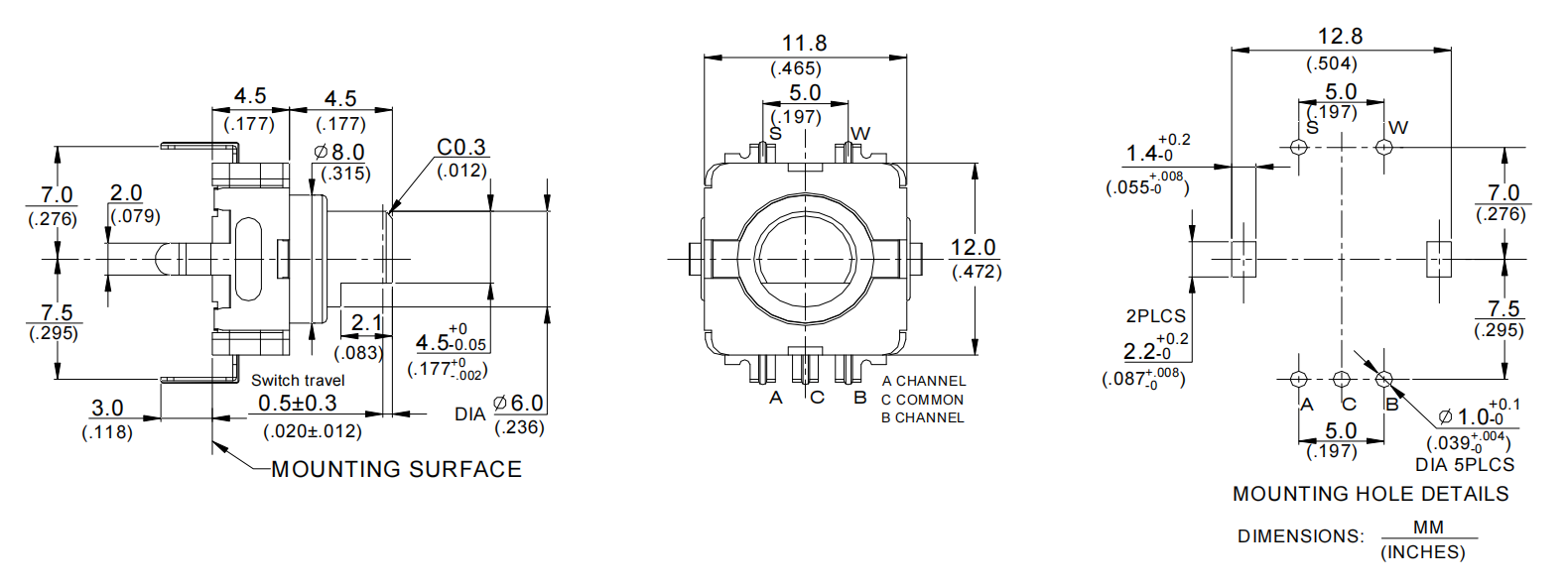

EC1115S EC11 series

EC11 series

Model

Dimensions

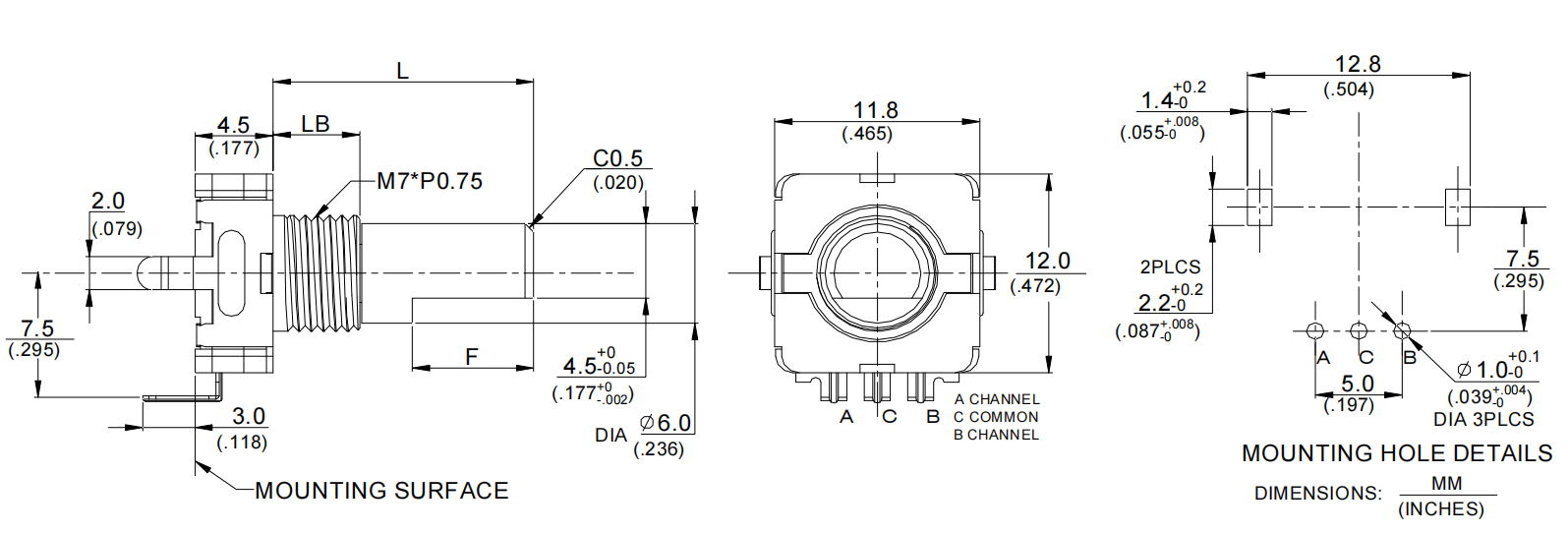

EC1115 EC11 series

EC11 series

Model

Dimensions

EC1115-M7B5 EC11 series

EC11 series

Model

Dimensions

EC1112S-SMT-M7B5 EC11 series

EC11 series

Model

Dimensions

EC1112G-M7B5 EC11 series

EC11 series

Model

Dimensions

EC1112S-B2.2 EC11 series

EC11 series
