ROW MOTHER 排母

0.8mm pitch double row female

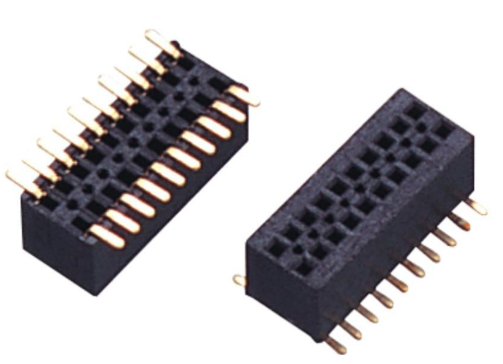

F0.8-9S

Vertical SMT / 排母連接器 3.1mm塑高 / 雙排排母 FEATURE ? 0.8mm pitch ? U type APPLICATIONS ? Used in PCB circuit boards in electronics, electrical appliances, and meters.

檔案下載產(chǎn)品詢價

F0.8-9S

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	3.1mm
額定電流/Rated current	0.75APM
接觸阻抗/Contact resistance	20mΩ Max

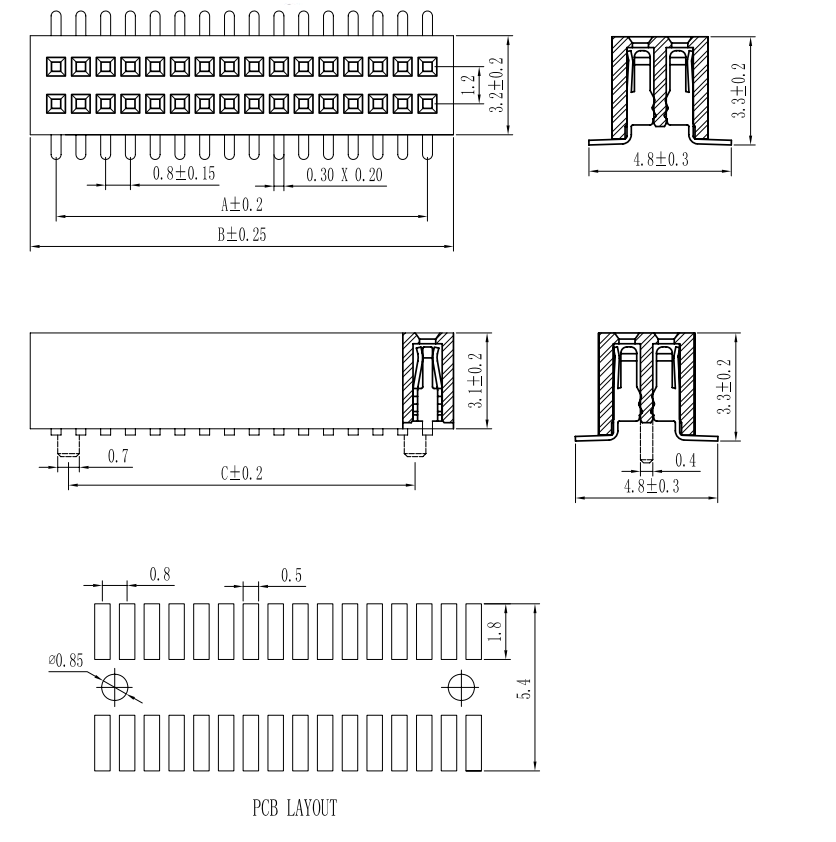

DIMENSIONS

Unit:mm

Model	Dimensions
F0.8-9S

Model

Dimensions

F0.8-9S
