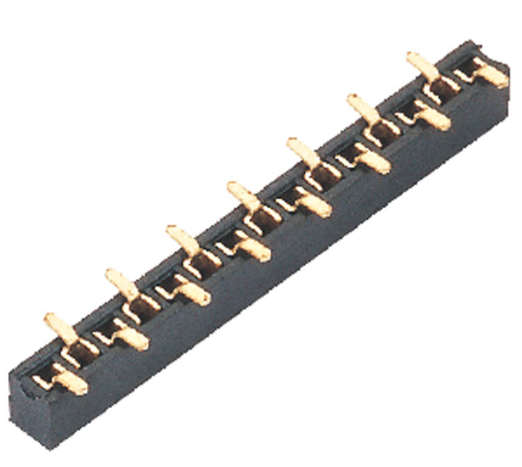

ROW MOTHER 排母

1.0mm pitch single row female

F1.0-0S

Vertical SMT / 排母連接器 2.1mm塑高 / 單排排母 FEATURE ? 1.0mm pitch ? U type APPLICATIONS ? Used in PCB circuit boards in electronics, electrical appliances, and meters.

檔案下載產(chǎn)品詢價(jià)

F1.0-0S

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	2.1mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

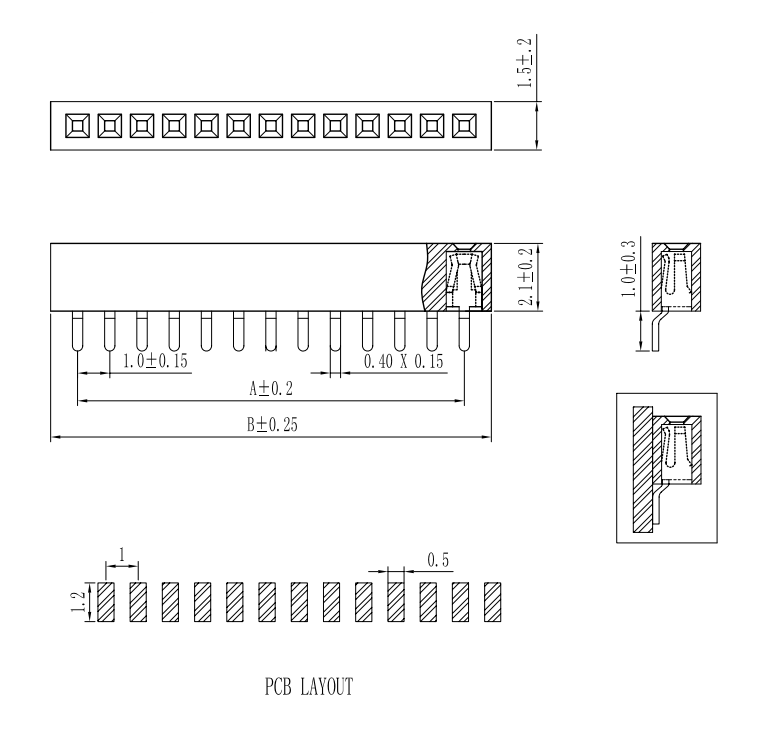

DIMENSIONS

Unit:mm

Model	Dimensions
F1.0-0S

Model

Dimensions

F1.0-0S
