ROW MOTHER 排母

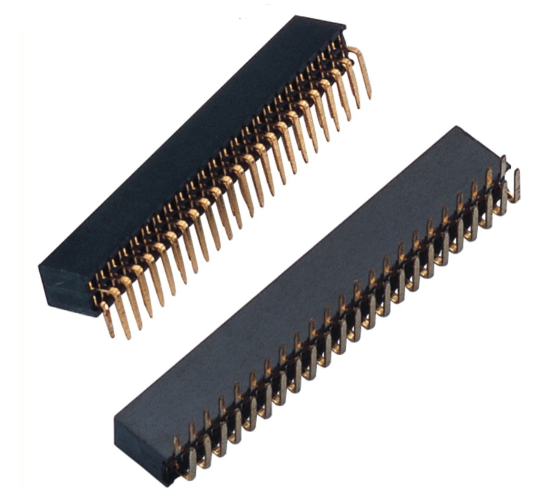

1.27mm pitch double row female

F1.2-9B

Horizontal DIP / 排母連接器 4.4mm塑高 / 雙排排母 FEATURE ? 1.27mm pitch ? U type APPLICATIONS ? Used in PCB circuit boards in electronics, electrical appliances, and meters.

檔案下載產(chǎn)品詢價

F1.2-9B

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	4.4mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

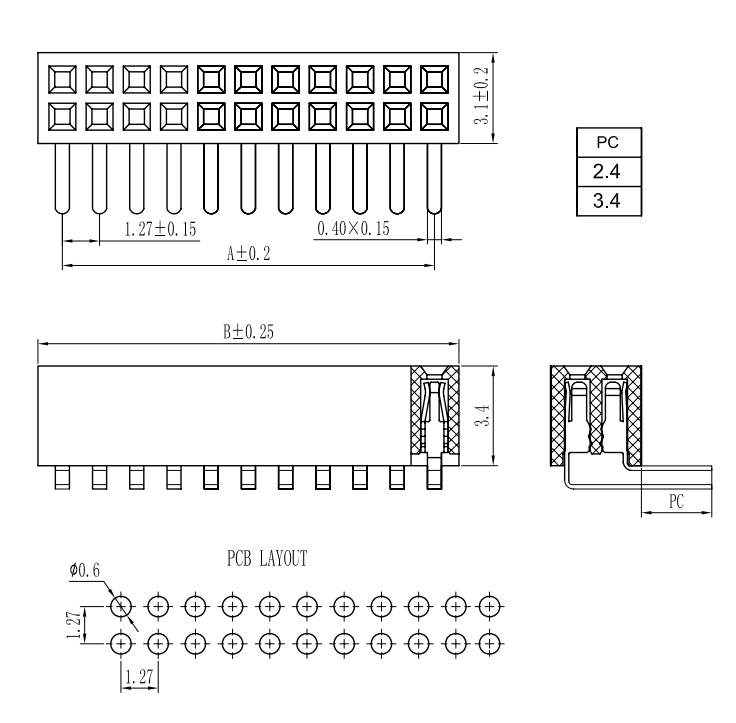

DIMENSIONS

Unit:mm

Model	Dimensions
F1.2-9B

Model

Dimensions

F1.2-9B
