FPC/FFC CONNECTOR FPC/FFC連接器

FPC/FFC connector series

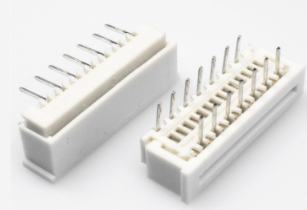

1.25-J-NPW

1.25 帶鎖彎插 FEATURE ? 1.25mm ? Wave soldering ? High temperature and corrosion resistance APPLICATIONS Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers

檔案下載產(chǎn)品詢價(jià)

1.25-J-NPW

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Rated current	1A
額定電壓/Rated voltage	200V
耐電壓/Withstand voltage	500V
接觸電阻/Contact resistance	≤30mΩ
絕緣電阻/Insulation resistance	1000MΩ
工作溫度/Operating temperature	-55℃-+85℃

DIMENSIONS

Unit:mm

Model	Dimensions
1.25-J-NPW

Model

Dimensions

1.25-J-NPW

Unit:m

Unit:mm
