FPC/FFC CONNECTOR FPC/FFC連接器

FPC/FFC connector series

0310-GX-nPWB

0.3前插后掀蓋H1.0 FEATURE ? 0.30mm ? Reflow soldering ? High temperature and corrosion resistance APPLICATIONS Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers

檔案下載產(chǎn)品詢價

0310-GX-nPWB

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Rated current	0.2A/PIN
額定電壓/Rated voltage	30V
耐電壓/Withstand voltage	500V
接觸電阻/Contact resistance	≤100mΩ
絕緣電阻/Insulation resistance	50MΩ
工作溫度/Operating temperature	-55℃-+85℃

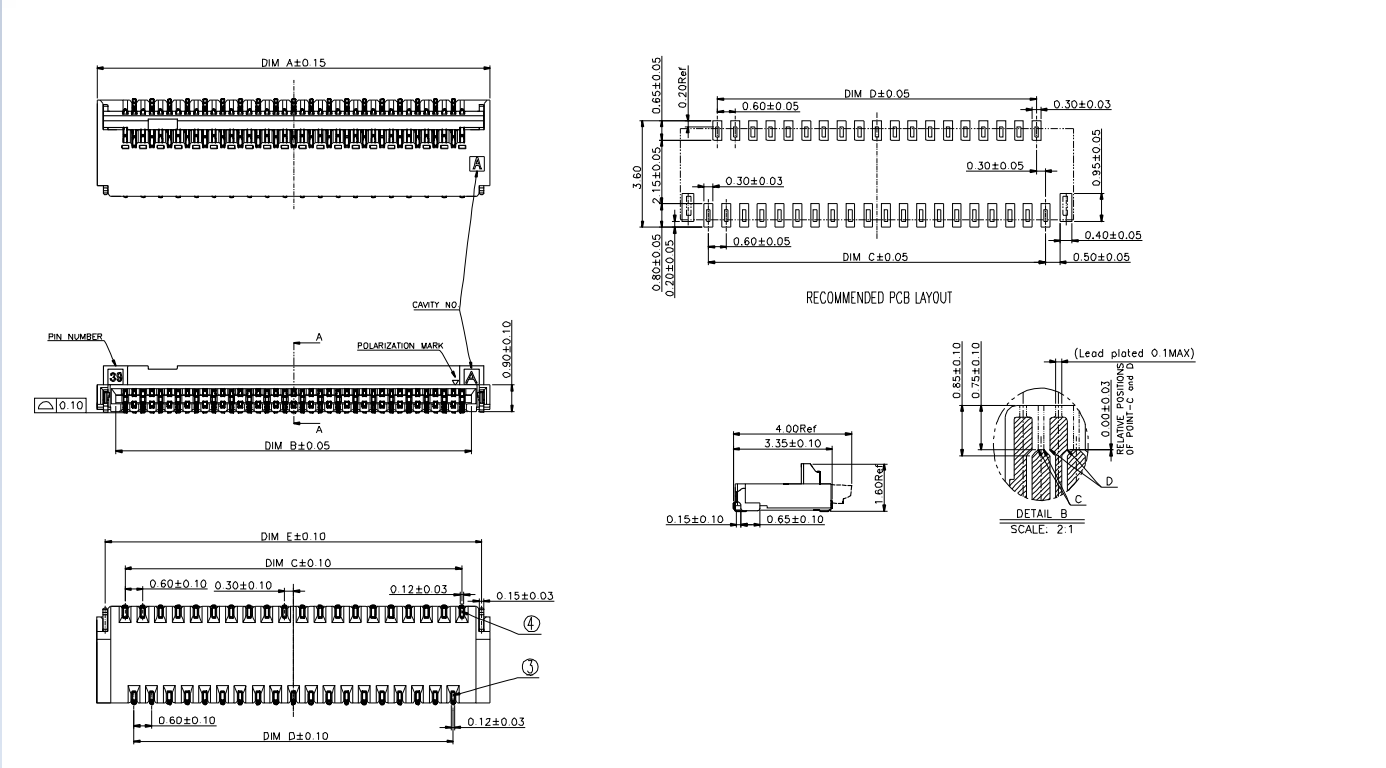

DIMENSIONS

Unit:mm

Model	Dimensions
0310-GX-nPWB

Model

Dimensions

0310-GX-nPWB

Unit:m

Unit:mm
