       FPC/FFC CONNECTOR FPC/FFC連接器


























        1.25-B-NP













       FPC/FFC connector series


      1.25-B-NP

      1.25 雙面接直插

FEATURE
? 1.25mm
? Wave soldering
? High temperature and corrosion resistance

APPLICATIONS
  Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers










      產(chǎn)品說明


      COMMON SPECIFICATIONS
      CharacteristicsSpecification
      額定電流/Rated current0.5A/PIN
      額定電壓/Rated voltage50V
      耐電壓/Withstand voltage200V
      接觸電阻/Contact resistance≤40mΩ
      絕緣電阻/Insulation resistance800MΩ
      工作溫度/Operating temperature-55℃-+85℃

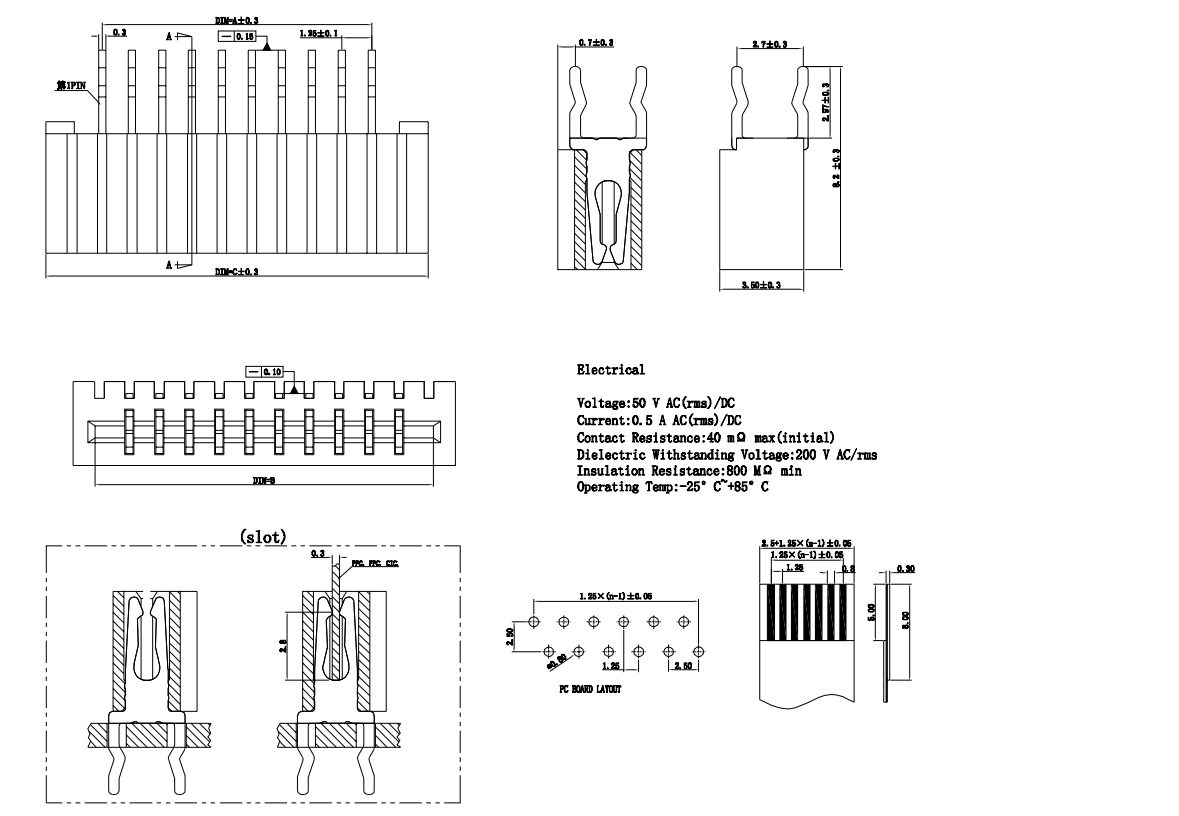

      DIMENSIONS
      Unit:mm
      ModelDimensions


      1.25-B-NP1.25-B-NP
      		1.25-B-NP


      Unit:m
      Unit:mm
