FPC/FFC CONNECTOR FPC/FFC連接器

FPC/FFC connector series

1.25-A-nP

1.25 單面接直插 FEATURE ? 1.25mm ? Wave soldering ? High temperature and corrosion resistance APPLICATIONS Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers

檔案下載產(chǎn)品詢價

1.25-A-nP

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Rated current	1A/PIN
額定電壓/Rated voltage	200V
耐電壓/Withstand voltage	500V
接觸電阻/Contact resistance	≤20mΩ
絕緣電阻/Insulation resistance	500MΩ
工作溫度/Operating temperature	-25℃-+85℃

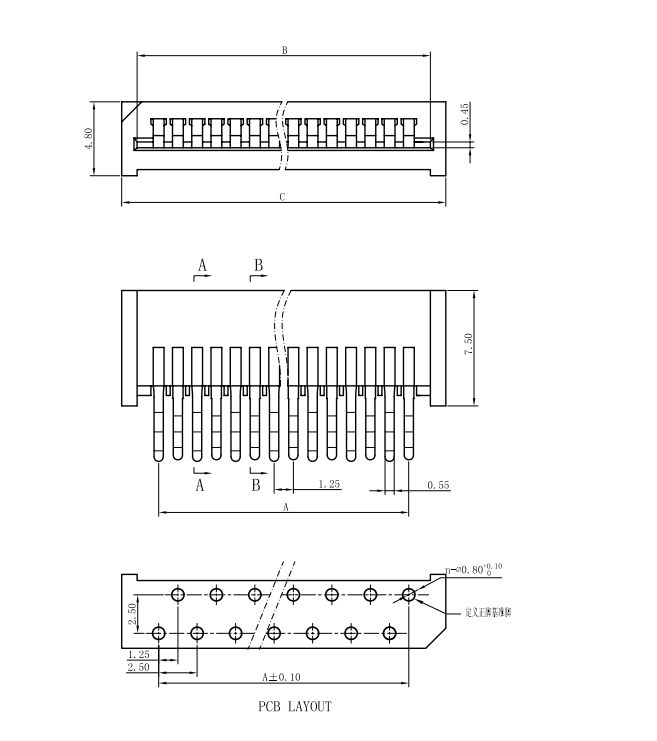

DIMENSIONS

Unit:mm

Model	Dimensions
1.25-A-nP

Model

Dimensions

1.25-A-nP

Unit:m

Unit:mm
