FPC/FFC CONNECTOR FPC/FFC連接器

FPC/FFC connector series

1.0K-LS-nPWB

1.0 上接 H2.0 FEATURE ? 1.00mm ? Reflow soldering ? High temperature and corrosion resistance APPLICATIONS Smart home/home appliances, shared equipment, medical equipment, digital electronics, mobile phones/computers, printers

檔案下載產品詢價

1.0K-LS-nPWB

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Rated current	0.4A/PIN
額定電壓/Rated voltage	50V
耐電壓/Withstand voltage	200V
接觸電阻/Contact resistance	≤20mΩ
絕緣電阻/Insulation resistance	500MΩ
工作溫度/Operating temperature	-25℃-+85℃

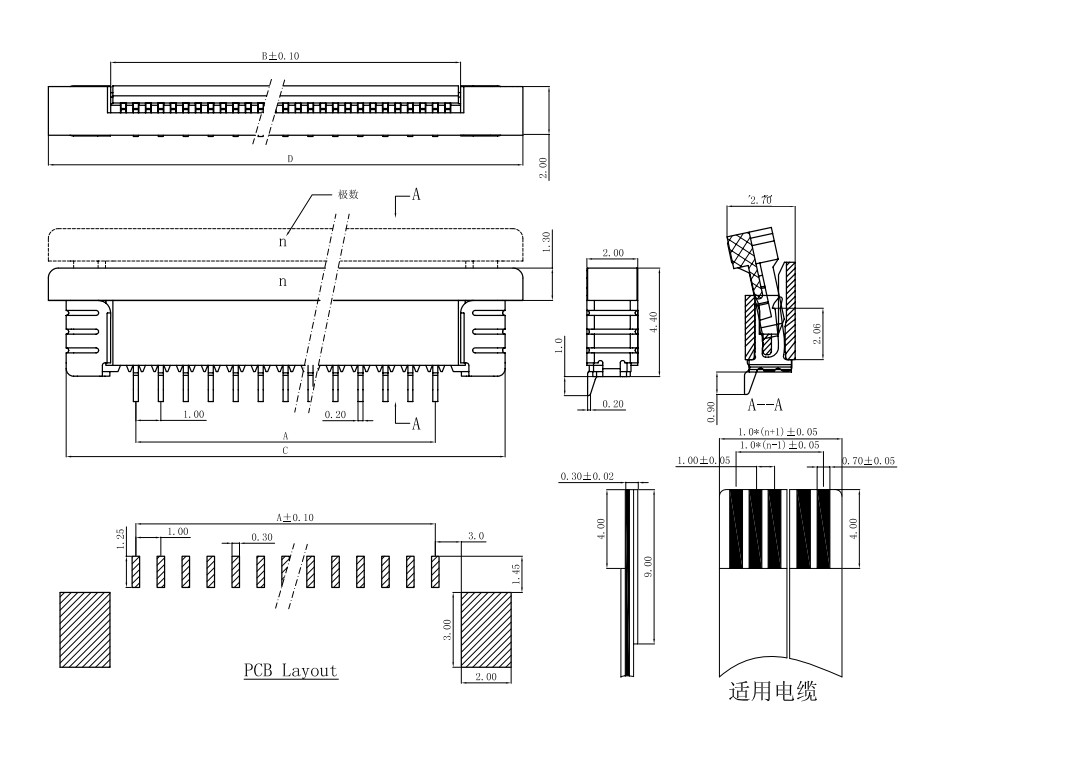

DIMENSIONS

Unit:mm

Model	Dimensions
1.0K-LS-nPWB

Model

Dimensions

1.0K-LS-nPWB

Unit:m

Unit:mm
