ROW MOTHER 排母

1.27mm pitch single row female

F1.2-9C

Vertical DIP / 排母連接器 4.3mm塑高 / 單排排母 FEATURE ? 1.27mm pitch ? U type APPLICATIONS ? Used in PCB circuit boards in electronics, electrical appliances, and meters.

檔案下載產(chǎn)品詢價

F1.2-9C

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範(fàn)圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	4.3mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

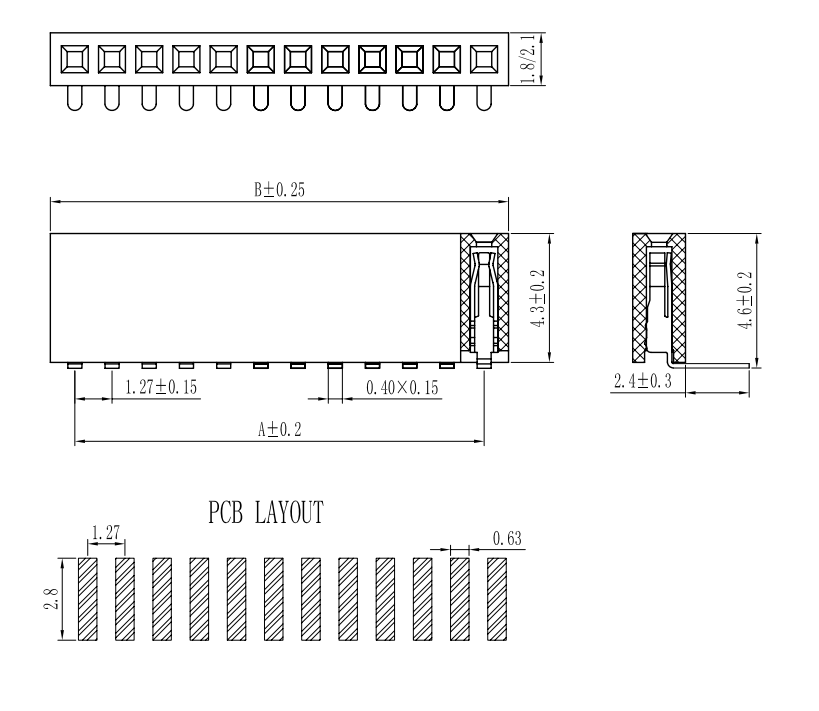

DIMENSIONS

Unit:mm

Model	Dimensions
F1.2-9C

Model

Dimensions

F1.2-9C F1.2-9C
