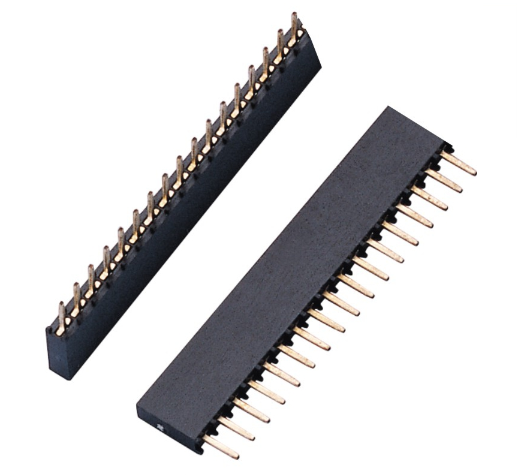

ROW MOTHER 排母

2.00mm pitch single row female

F2.0-0D

Vertical DIP / 排母連接器 6.35mm塑高 / 單排排母 FEATURE ? 2.00mm pitch ? Y type APPLICATIONS ? Used in PCB circuit boards in electronics, electrical appliances, and meters.

檔案下載產品詢價

F2.0-0D

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40℃ to +105℃
絕緣電阻/Insulation resistance	1000MΩ Min
耐壓/Withstand voltage	AC 500V/min
尺寸/Dimension	6.35mm
額定電流/Rated current	1.0APM
接觸阻抗/Contact resistance	20mΩ Max

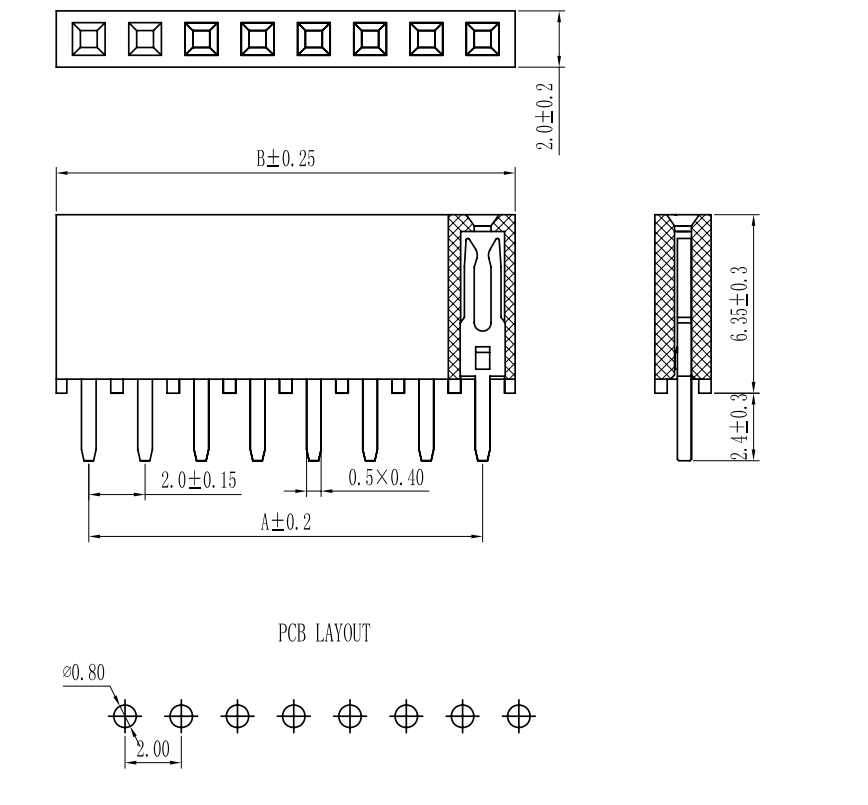

DIMENSIONS

Unit:mm

Model	Dimensions
F2.0-0D

Model

Dimensions

F2.0-0D
