MULTI-FUNCTION SWITCH 多功能開關
Multiple encoding switch
RS16S series
多路編碼開關
MAIN FUNCTIONS
Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection.
APPLICATIONS
Mouse, earphone, radio, electronic toy, electronic cigarette.
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度/Operating Temperature | -20℃~+70℃ |
|---|
| 操作力矩/Shaft Rotation Force | 20gf.cm~200gf.cm |
|---|
| 全回轉角度/Total Rotation Angle | 360o |
|---|
| 額定功率/Power Rating | DC5V |
|---|
| 絕緣電阻/Insulation resistance | More than 100MΩ |
|---|
| 接觸電阻/Contact resistance | 3Ω Max |
|---|
| 耐電壓/Withstand Voltage | For 1 minute at 300V AC |
|---|
| 回轉壽命/Rotational life | 30,000 cycles |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|

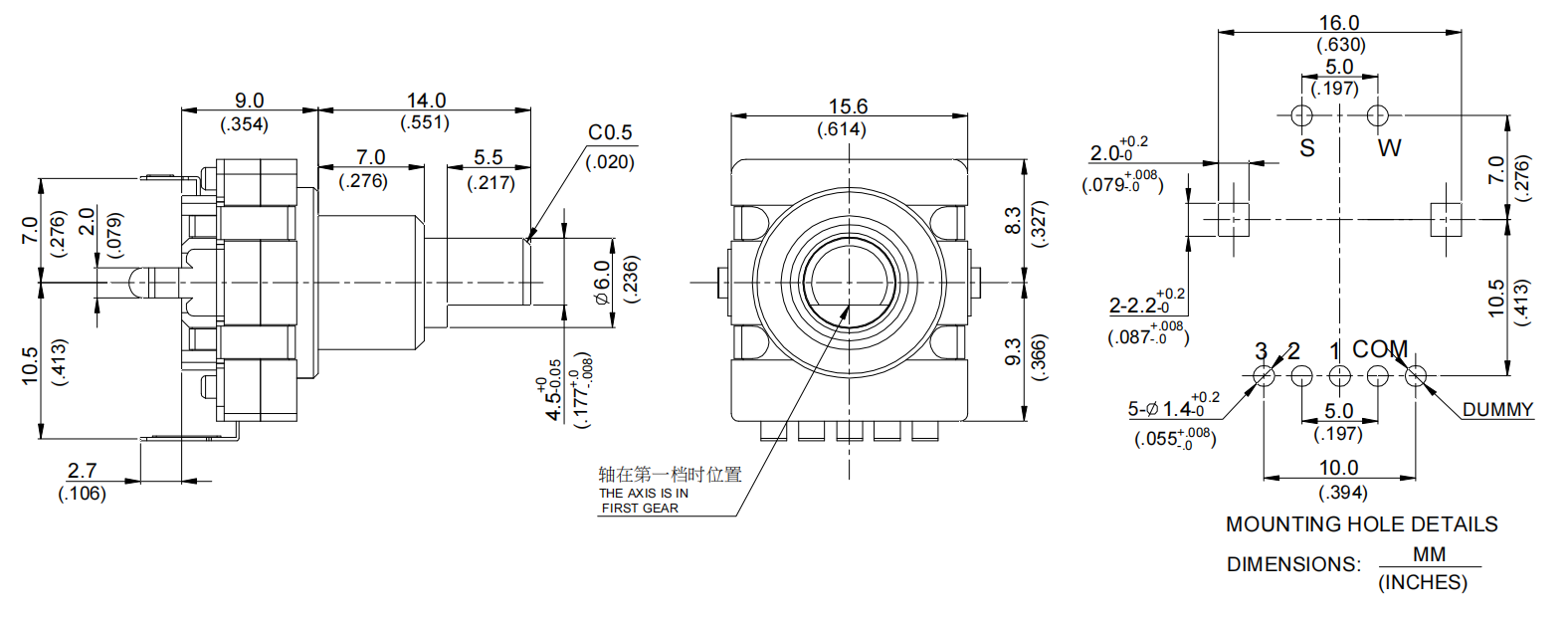

RS1614
|  |
| Model | Dimensions |
|---|

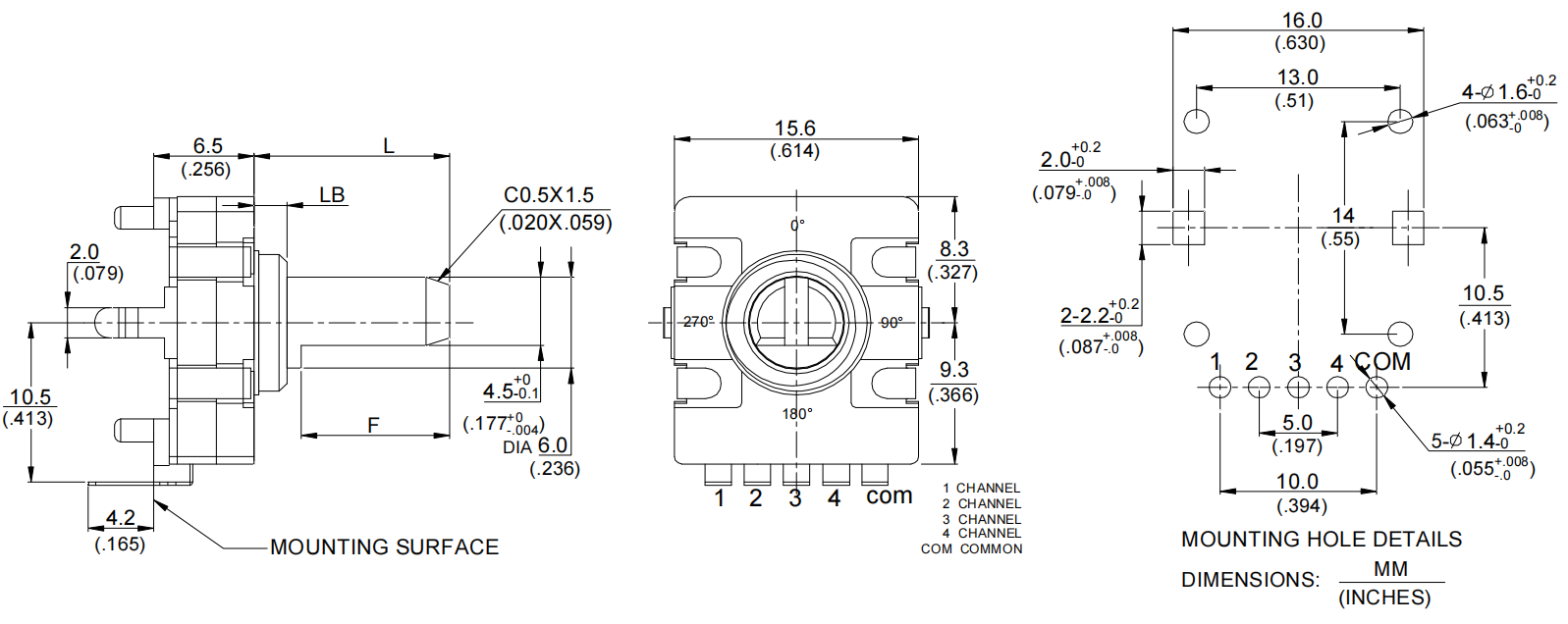

RS1616S
|  |
