ROTARY POTENTIOMETER 旋轉電位器

Potentiometer/Rotary Potentiometer

FR11 series

電位器/旋轉電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.

檔案下載產品詢價

FR11

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
操作力矩/Shaft Rotation Force	5gf.cm~50gf.cm
絕緣電阻/Insulation resistance	100 M? min at 250 VDC.
接觸電阻/Contact resistance	3Ω Max
耐電壓/Withstand Voltage	1 minute at AC 250V
回轉壽命/Rotational life	1,000,000 cycles

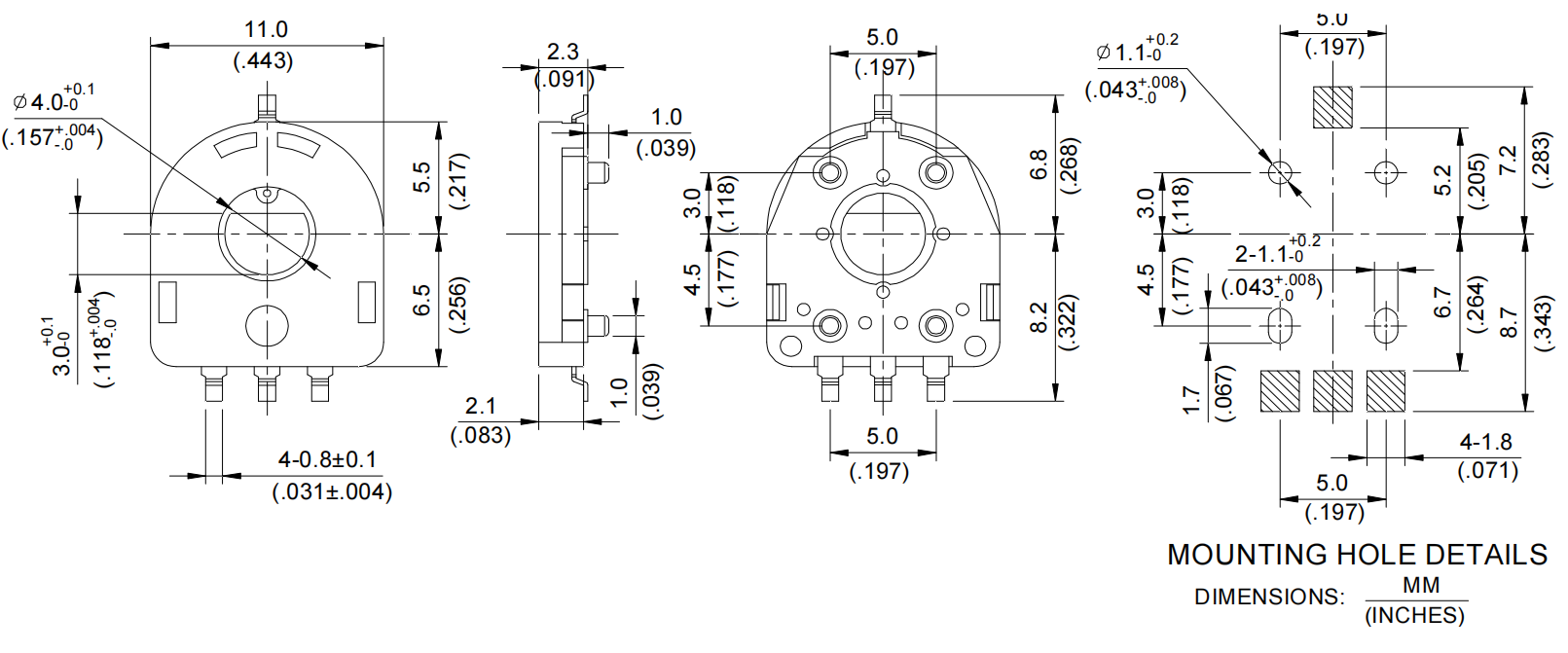

DIMENSIONS

Unit:mm

Model	Dimensions
FR11NH02

Model

Dimensions

FR11NH02 FR11 series
