ROTARY POTENTIOMETER 旋轉電位器

Potentiometer/Rotary Potentiometer

RK093 series

電位器/旋轉電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.

檔案下載產品詢價

RK093

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
操作力矩/Shaft Rotation Force	10gf.cm~100gf.cm
絕緣電阻/Insulation resistance	100 M? min at 250 VDC.
耐電壓/Withstand Voltage	1 minute at AC 250V
回轉壽命/Rotational life	15,000 cycles

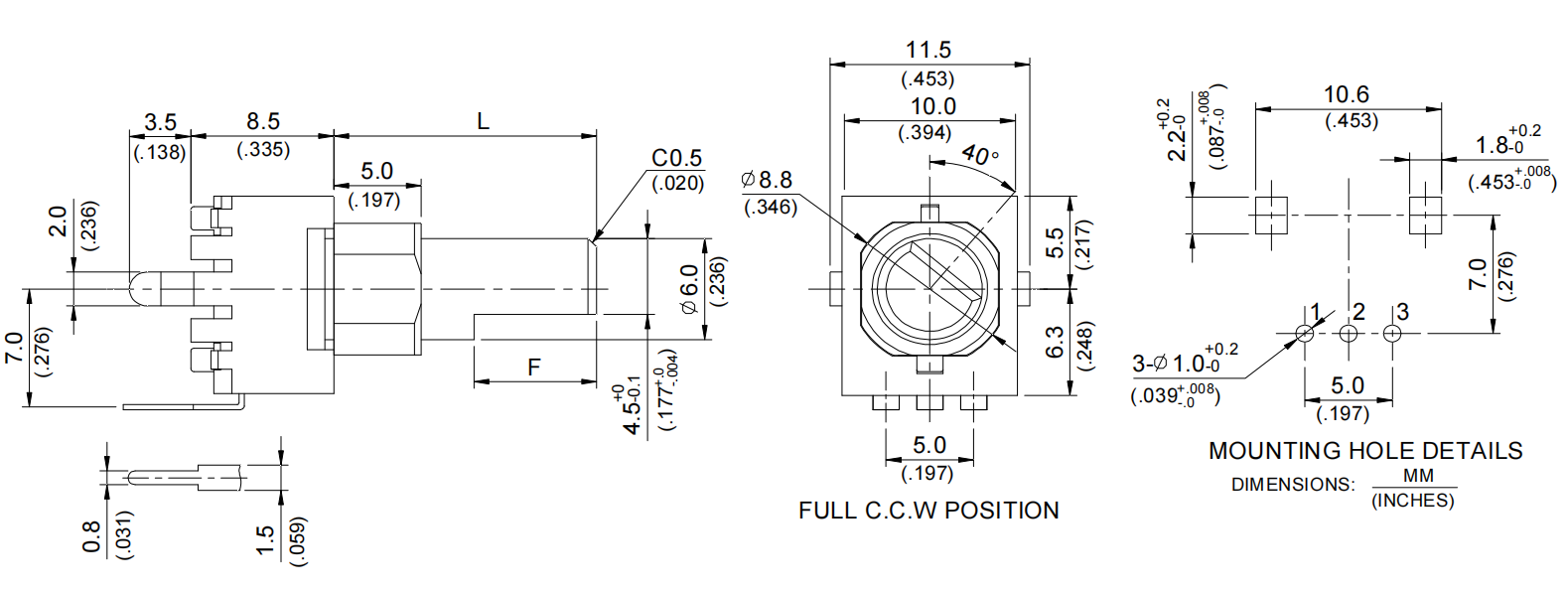

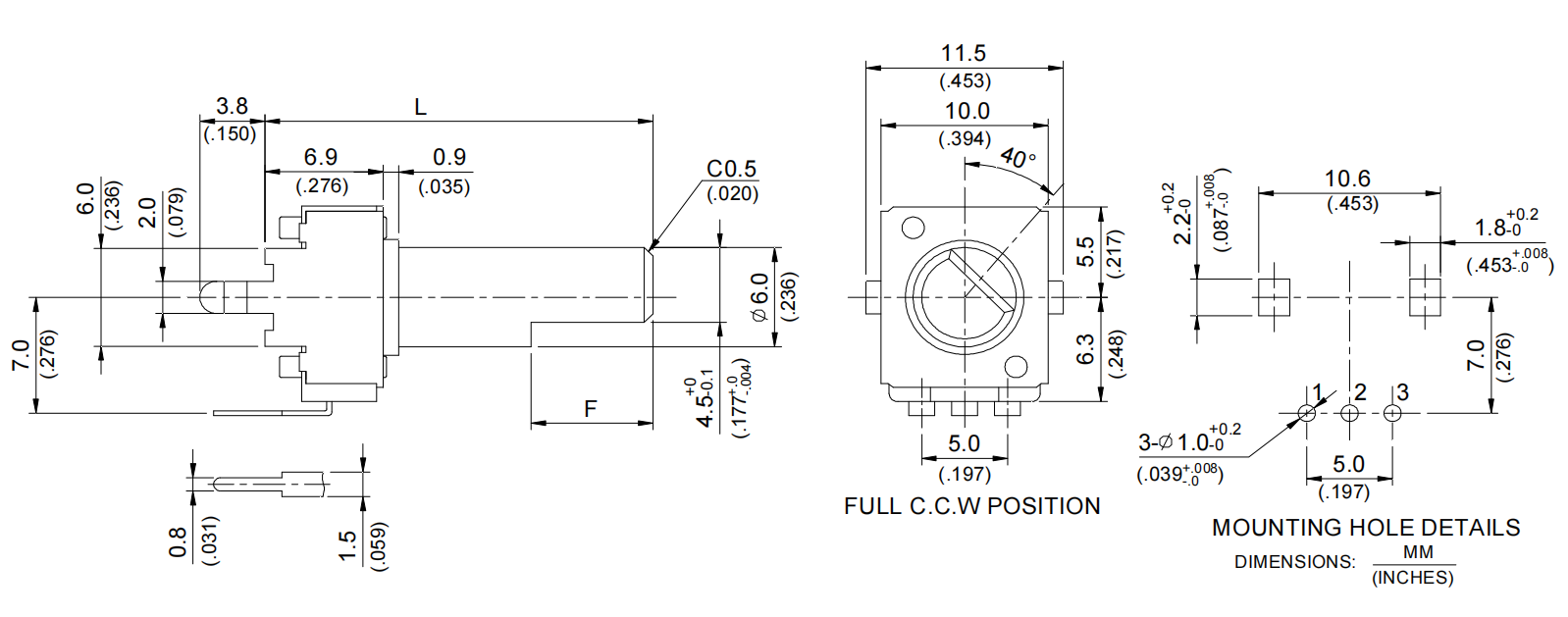

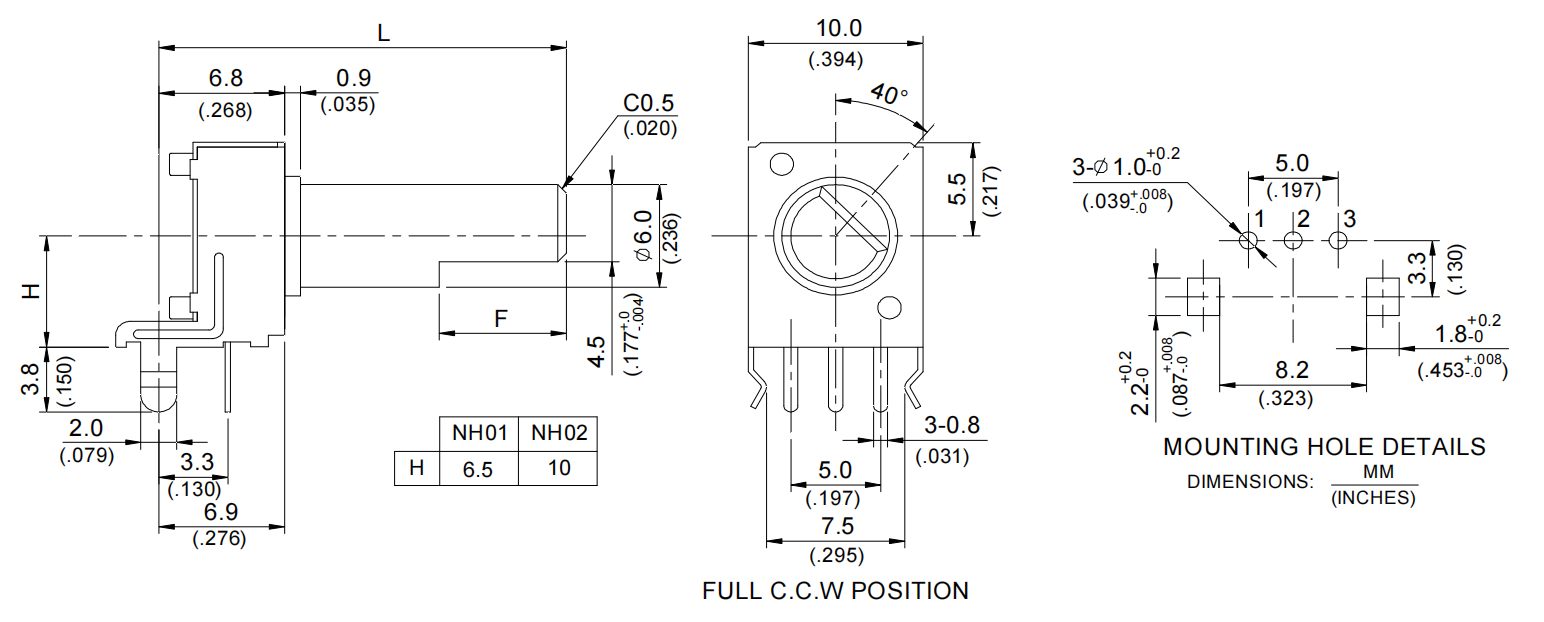

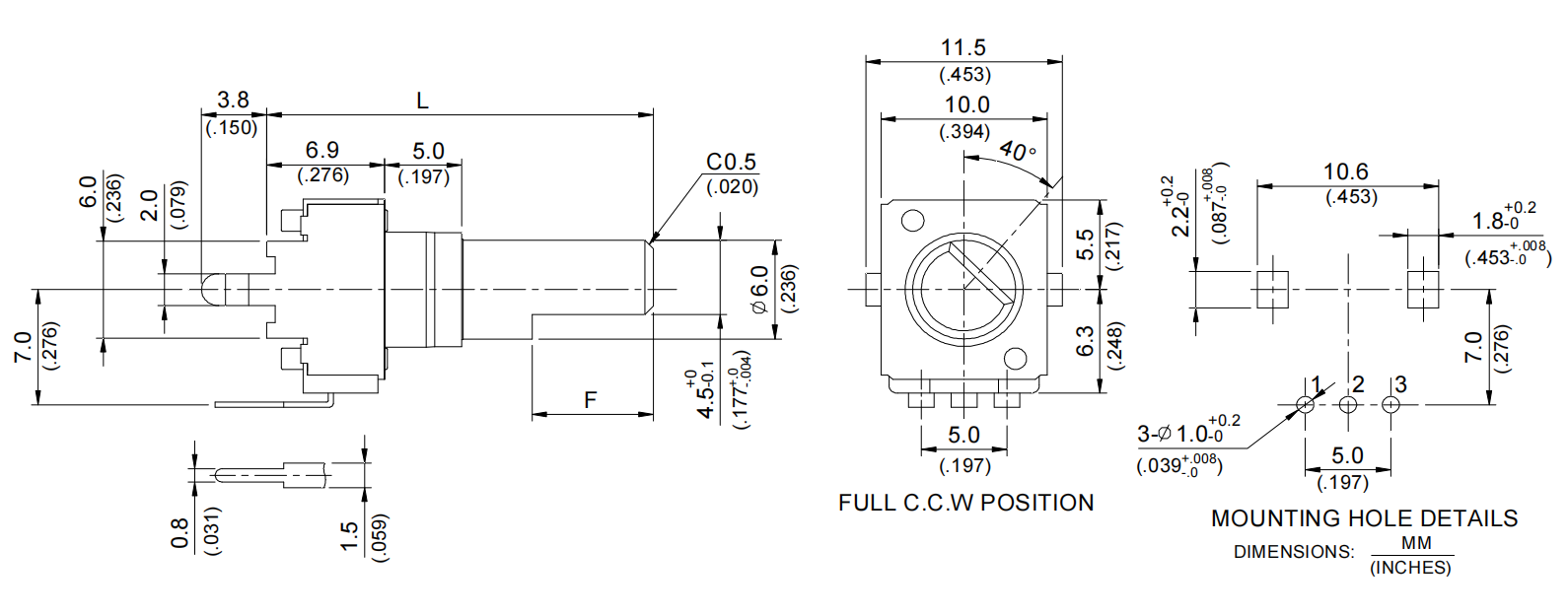

DIMENSIONS

Unit:mm

Model

Dimensions

RK093NV01 RK093 series

RK093 series

Model

Dimensions

RK093NV01-A2

RK093 series

RK093 series

Model

Dimensions

RK093NH01 RK093 series

RK093 series

Model

Dimensions

RK093NH01-A2

RK093 series

RK093 series

Model

Dimensions

RK093NV01-D5

RK093 series

RK093 series

Model

Dimensions

RK093NV01-M9B5 RK093 series

RK093 series

Model

Dimensions

RK093NH02-D5

RK093 series

RK093 series
