       ROTARY POTENTIOMETER 旋轉電位器


























        RK166 series













       Potentiometer/Rotary Potentiometer


      RK166 series

      電位器/旋轉電位器

MAIN FUNCTIONS
Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection.

APPLICATIONS
Mouse, earphone, radio, electronic toy, electronic cigarette.










      產品說明


      COMMON SPECIFICATIONS
      CharacteristicsSpecification
      操作力矩/Shaft Rotation Force20gf.cm~200gf.cm
      絕緣電阻/Insulation resistance100 M? min at 500 VDC.
      耐電壓/Withstand Voltage1 minute at AC 500V
      回轉壽命/Rotational life15,000 cycles
      DIMENSIONS
      Unit:mm
      ModelDimensions

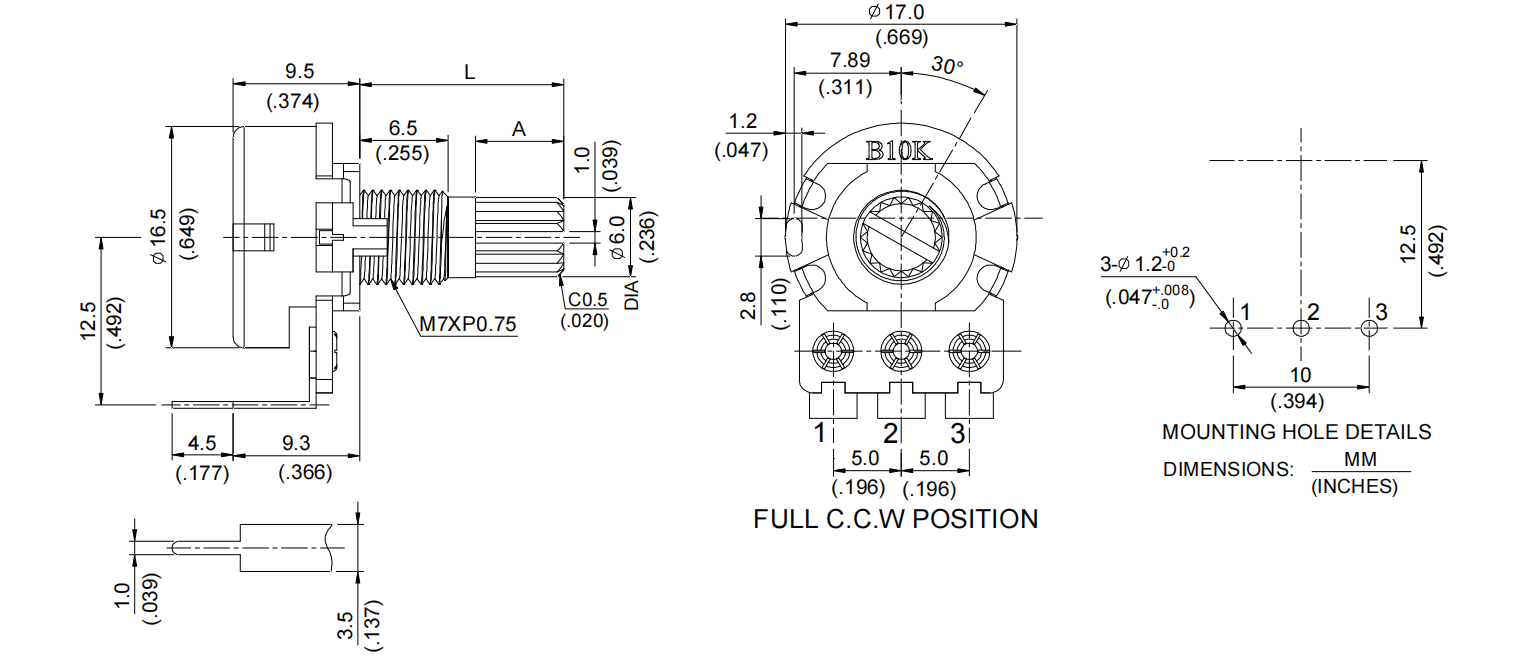

      RK166NH01RK166 series

      		RK166 series
      ModelDimensions

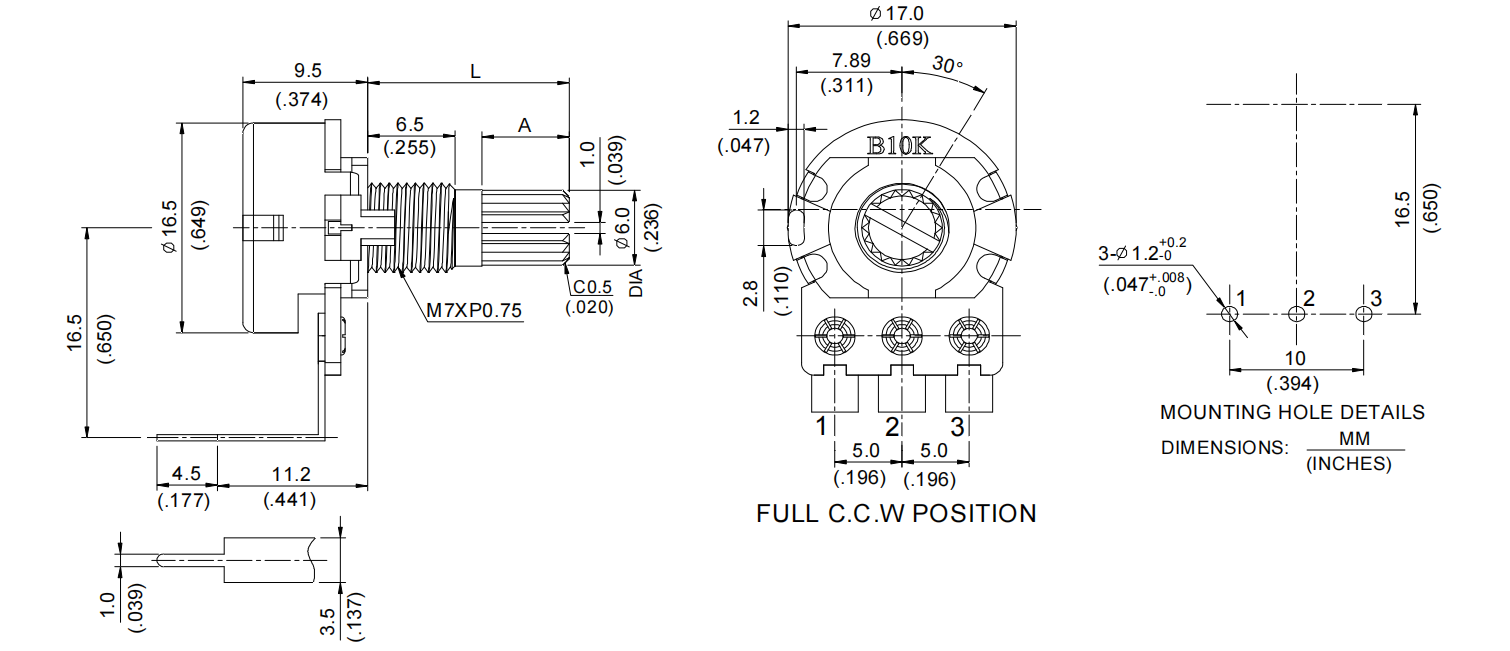

      RK166NHT01
      RK166 series

      		RK166 series
      ModelDimensions

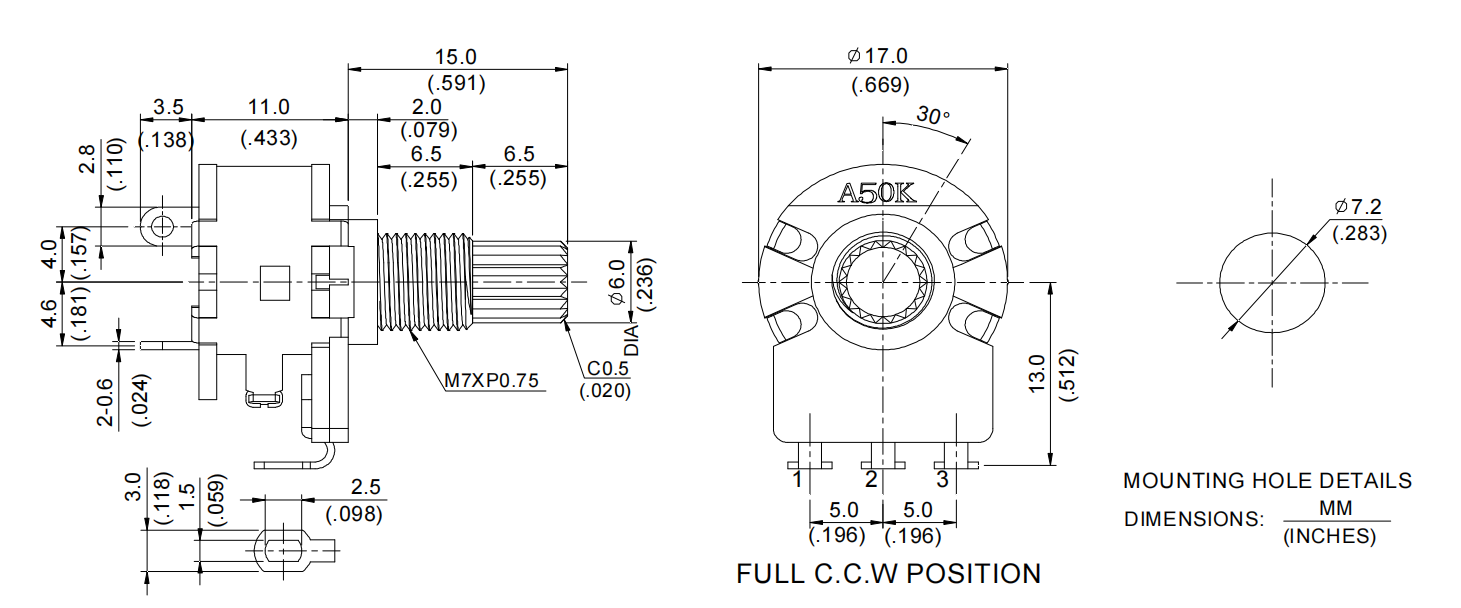

      RK166GH01RK166 series

      		RK166 series
      ModelDimensions

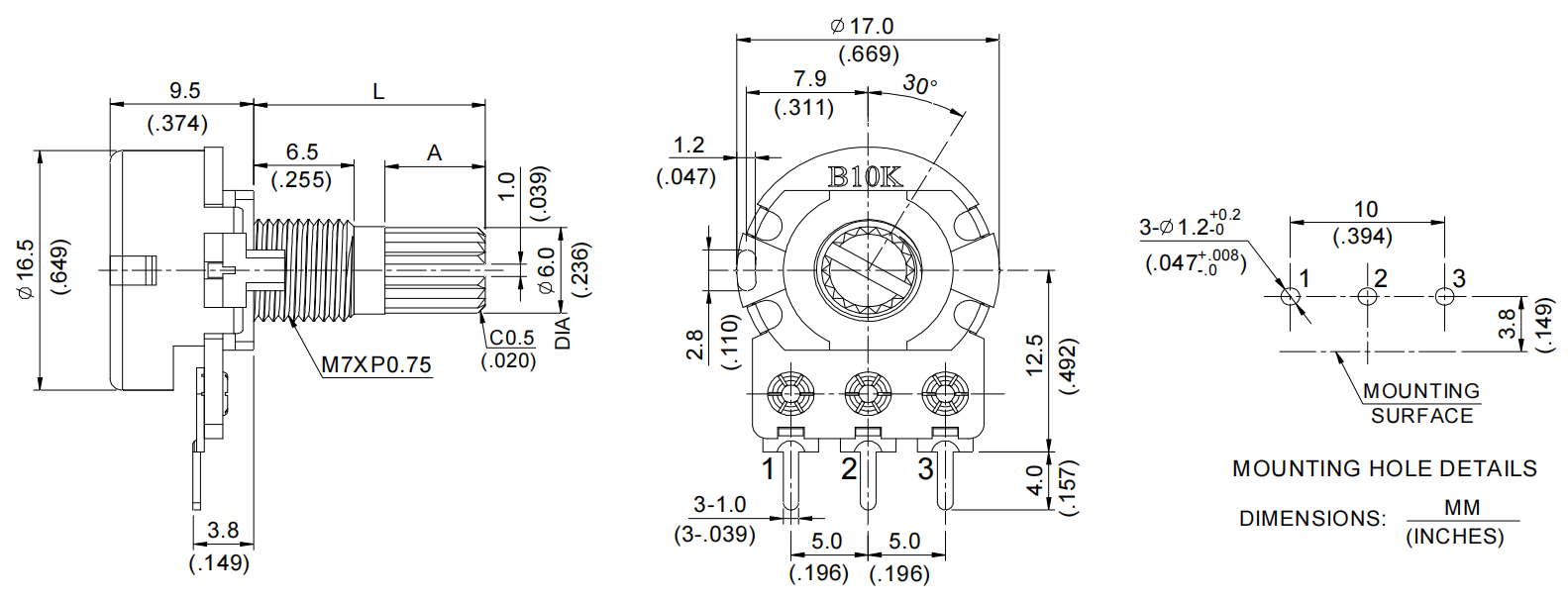

      RK166SNH01
      RK166 series

      		RK166 series
      ModelDimensions

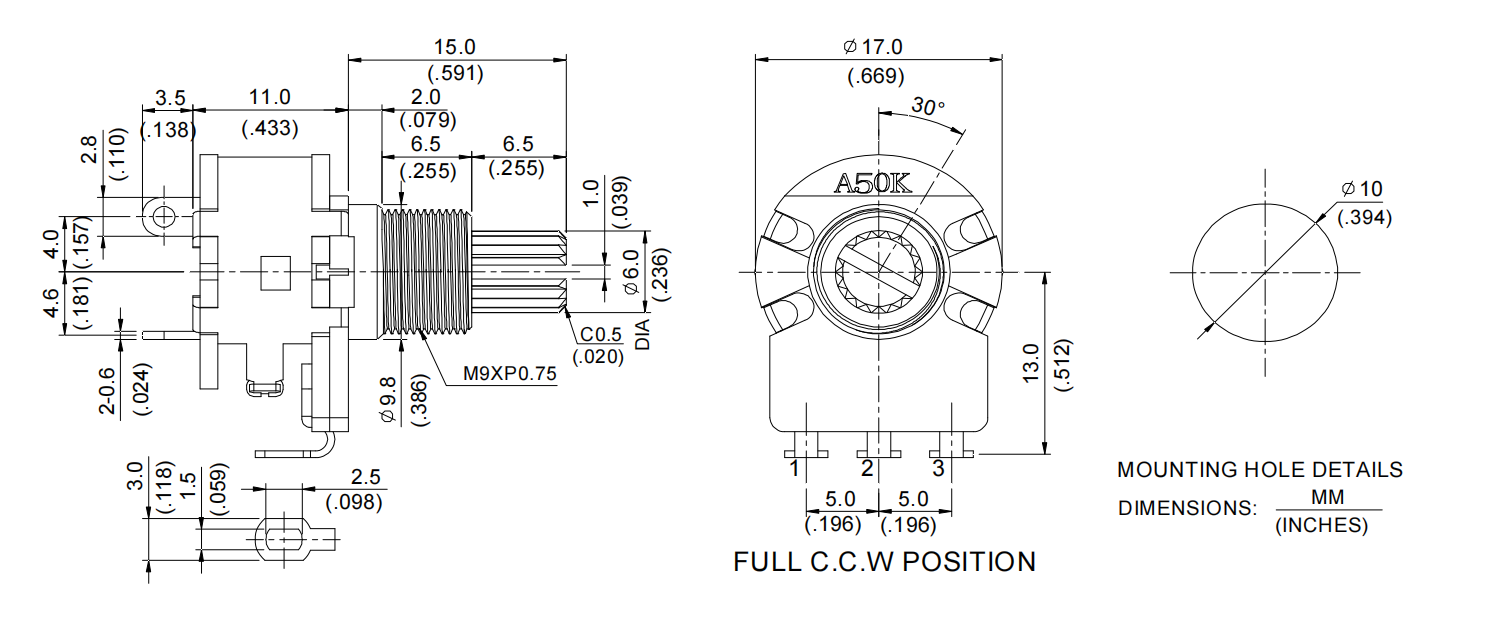

      RK166NV01
      RK166 series

      		RK166 series
      ModelDimensions

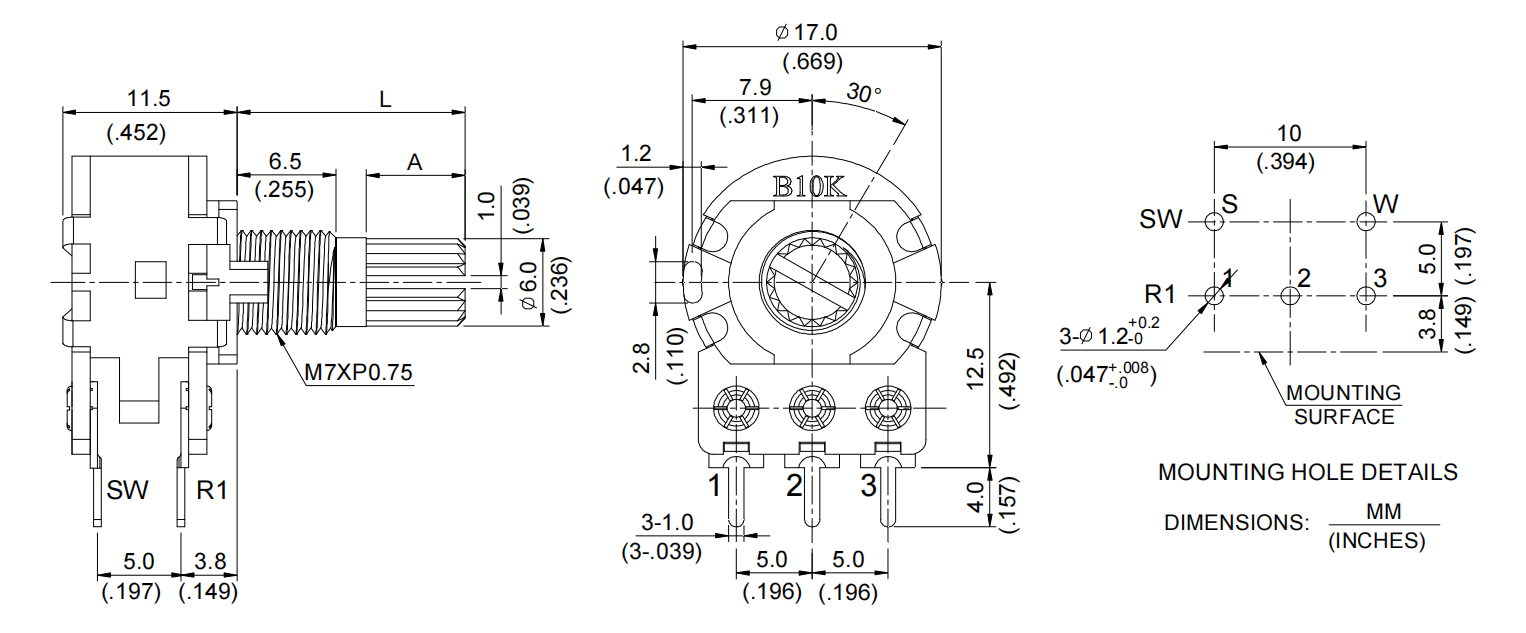

      RK166NV02RK166 series

      		RK166 series
      ModelDimensions

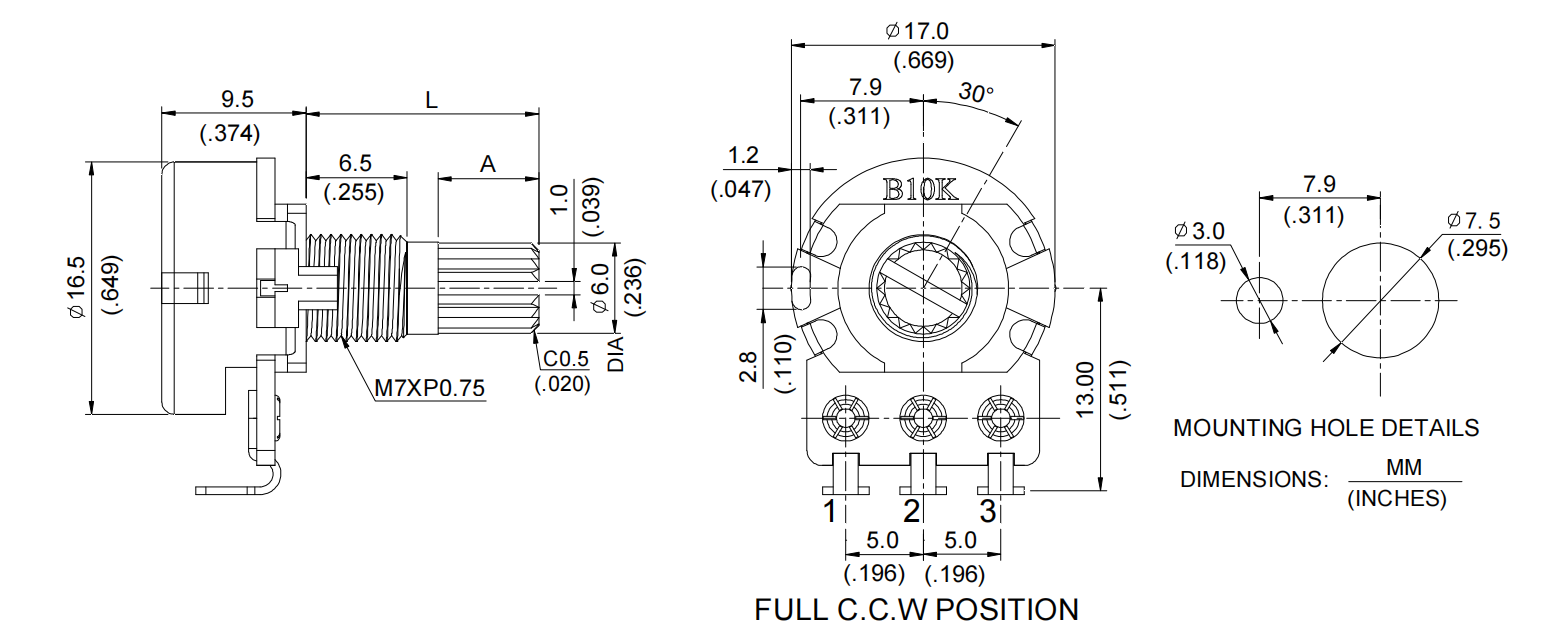

      RK166SNVTB01RK166 series

      		RK166 series
      ModelDimensions

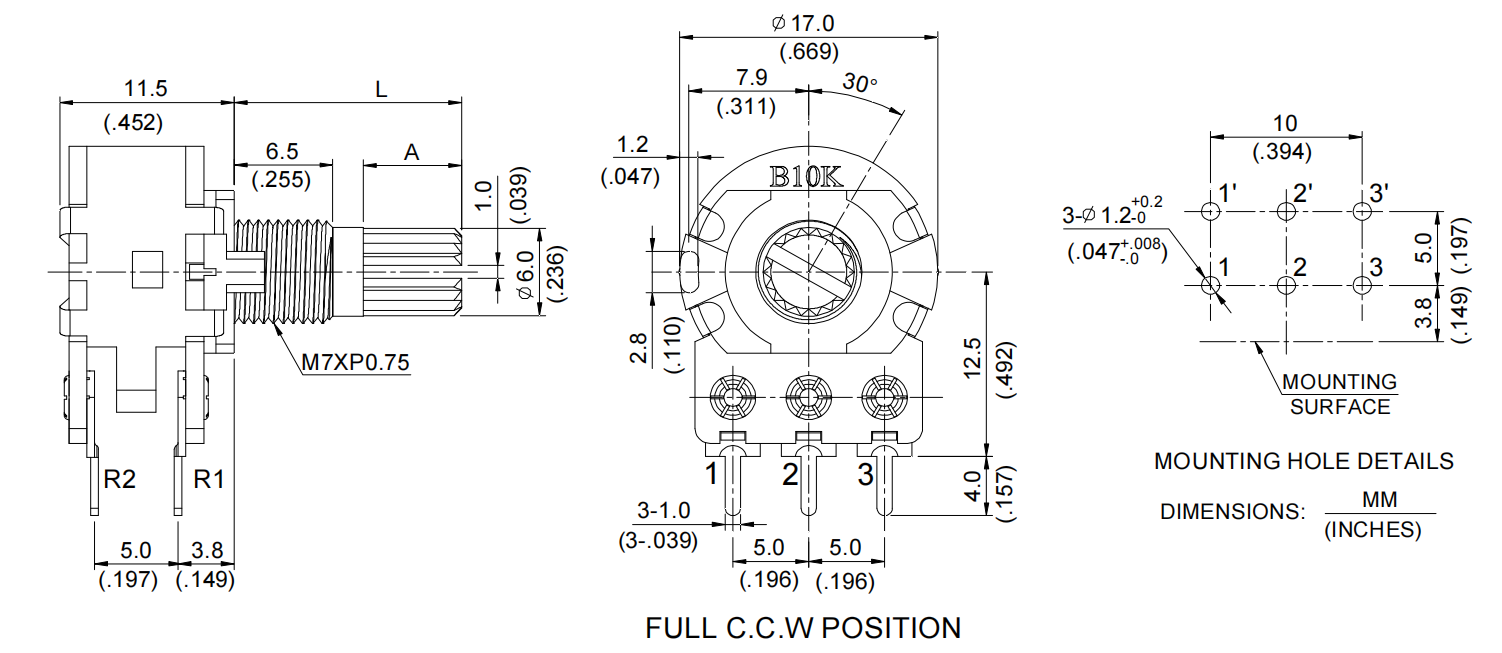

      RK166SNVTB01
      RK166 series

      		RK166 series
