SLIDE POTENTIOMETER 滑動電位器

Potentiometer/Slide potentiometer

SK05 series

電位器/滑動電位器 MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.

檔案下載產品詢價

SK05

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
操作力矩/Shaft Rotation Force	5gf.cm~90gf.cm
絕緣電阻/Insulation resistance	50 M? min at 100 VDC.
耐電壓/Withstand Voltage	1 minute at AC 100V
回轉壽命/Rotational life	5,000 cycles

DIMENSIONS

Unit:mm

Model

Dimensions

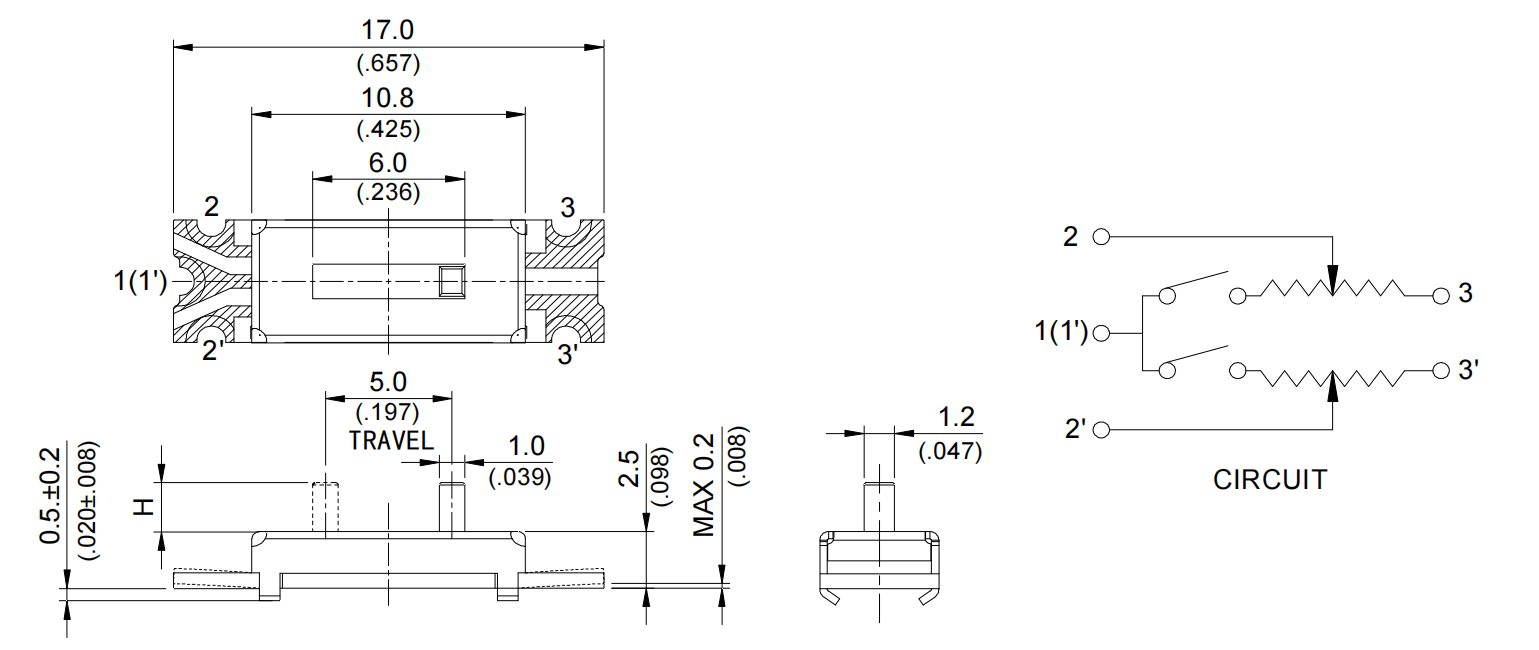

SK05NW01 SK05 series

SK05 series

Model

Dimensions

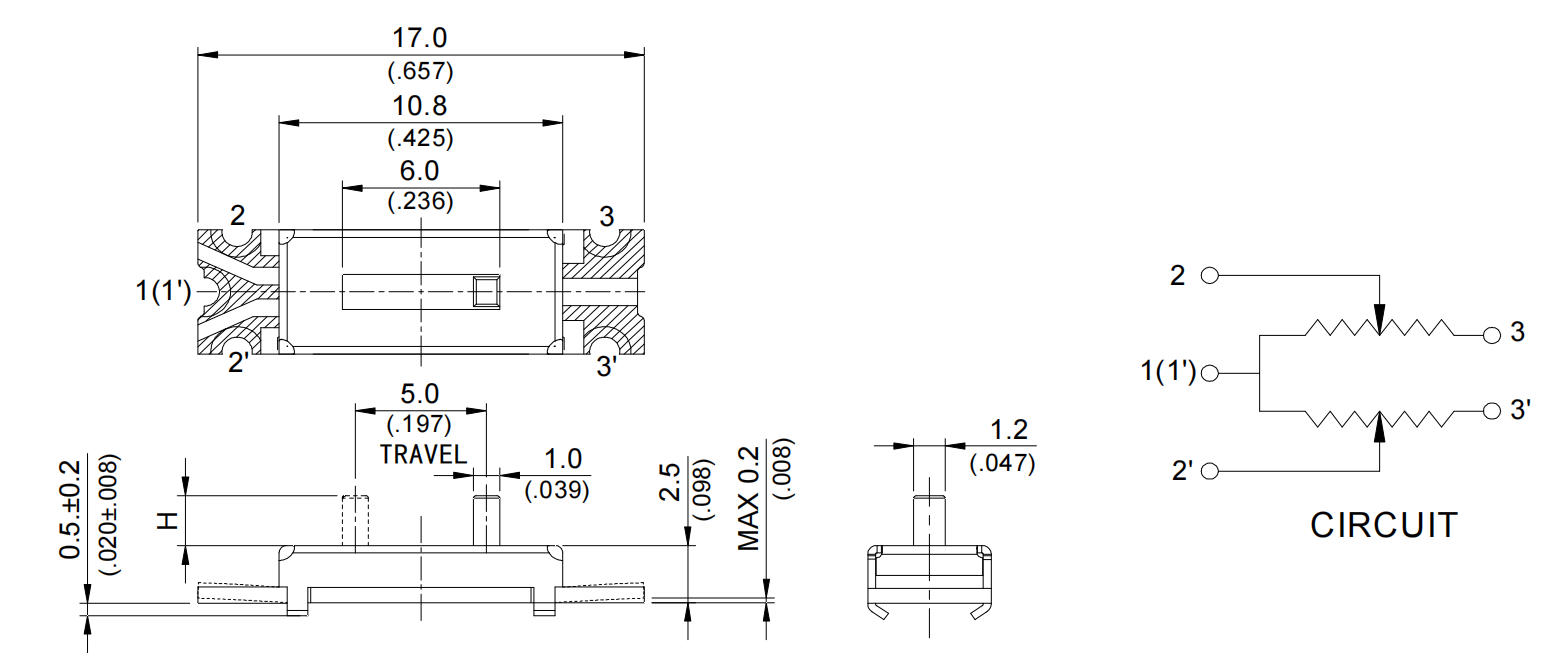

SK05SNW01

SK05 series

SK05 series

Model

Dimensions

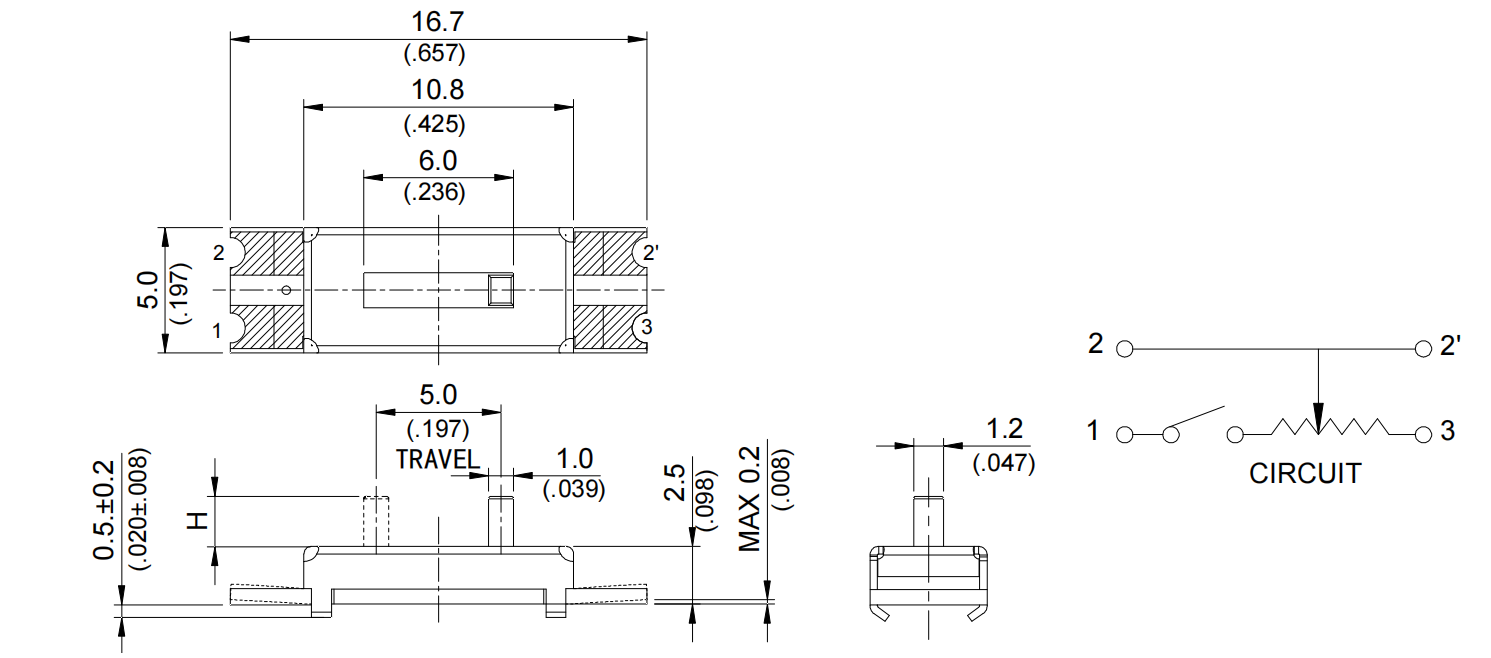

SK05GW01 SK05 series

SK05 series

Model

Dimensions

SK05SGW01

SK05 series

SK05 series
