BATTERY BATTERY CONNECTOR Battery電池連接器

Battery battery connector series

BC-049

Battery電池連接器 FEATURE ? 4.00mm ? 2-6PIN ? SMD APPLICATIONS ?Used in toy airplanes, electric car battery charging ports, power sockets, small household appliances battery interfaces, laptop computers, mobile phones, etc.

檔案下載產品詢價

BC-049

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/CURRENT RATING	3A
耐壓/WITHSTAND VOLTAGE	30V
絕緣電阻/INSULATION RESISTANCE	500 ΜΩ MIN
接觸電阻/CONTACT RESISTANCE	30 mΩ MAX
工作溫度/OPERATION TEMPERATURE	-55°C TO +105°C

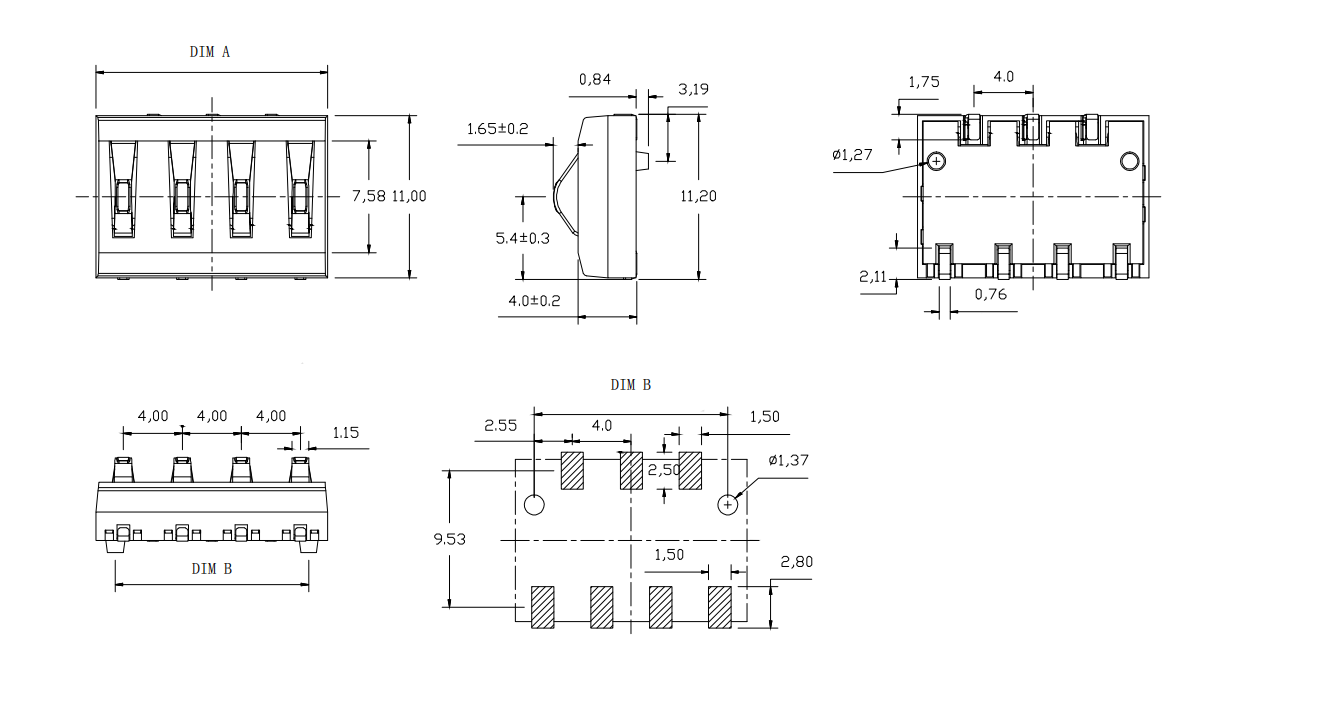

DIMENSIONS

Unit:mm

Model	Dimensions
BC-049

Unit:mm
