BATTERY BATTERY CONNECTOR Battery電池連接器

Battery battery connector series

BC-010

Battery電池連接器 FEATURE ? 3.00mm ? 3PIN ? SMT APPLICATIONS ?Used in toy airplanes, electric car battery charging ports, power sockets, small household appliances battery interfaces, laptop computers, mobile phones, etc.

檔案下載產品詢價

BC-010

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/CURRENT RATING	1-3A
耐壓/WITHSTAND VOLTAGE	50V
絕緣電阻/INSULATION RESISTANCE	500 ΜΩ MIN
接觸電阻/CONTACT RESISTANCE	30 mΩ MAX
工作溫度/OPERATION TEMPERATURE	-20°C TO +85°C

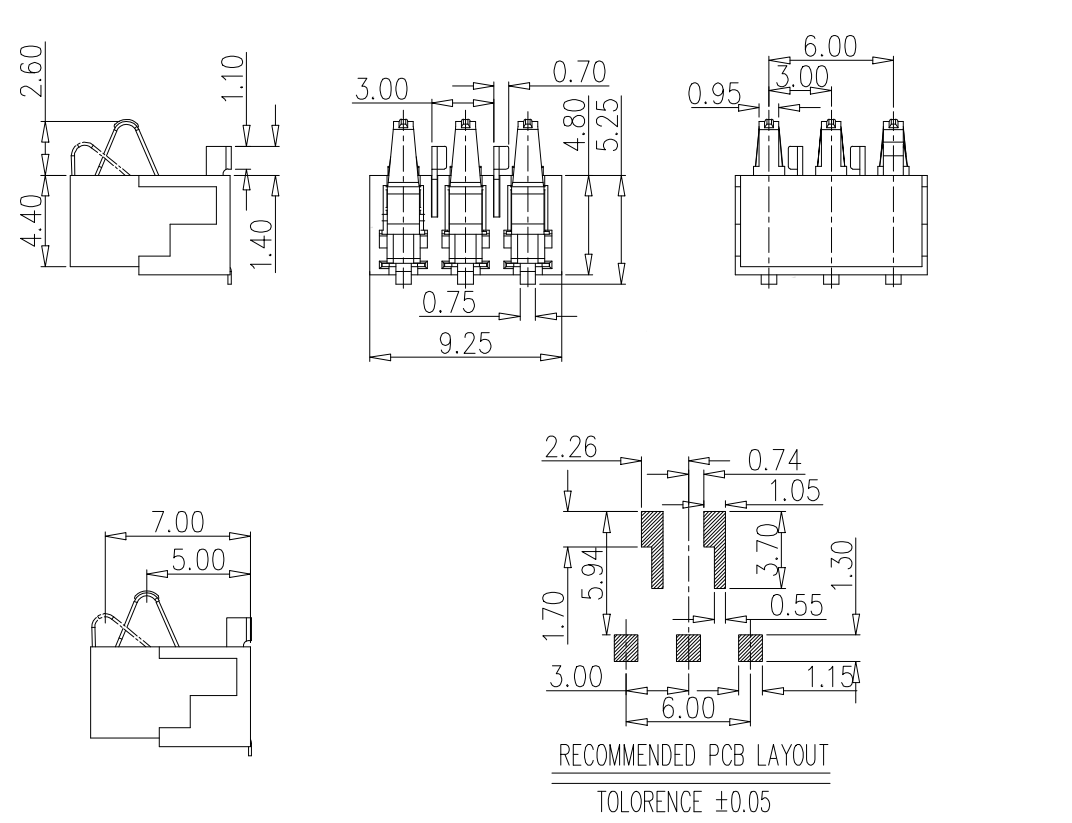

DIMENSIONS

Unit:mm

Model	Dimensions
BC-010

Unit:mm
