BATTERY BATTERY CONNECTOR Battery電池連接器

Battery battery connector series

BC-755

沈板式Battery電池連接器 FEATURE ? 2.50mm ? 3PIN ? SMD APPLICATIONS ?Used in toy airplanes, electric car battery charging ports, power sockets, small household appliances battery interfaces, laptop computers, mobile phones, etc.

檔案下載產品詢價

BC-755

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/CURRENT RATING	2.0A
耐壓/WITHSTAND VOLTAGE	250V
絕緣電阻/INSULATION RESISTANCE	1000 ΜΩ MIN
接觸電阻/CONTACT RESISTANCE	30 mΩ MAX
工作溫度/OPERATION TEMPERATURE	-40°C TO +85°C

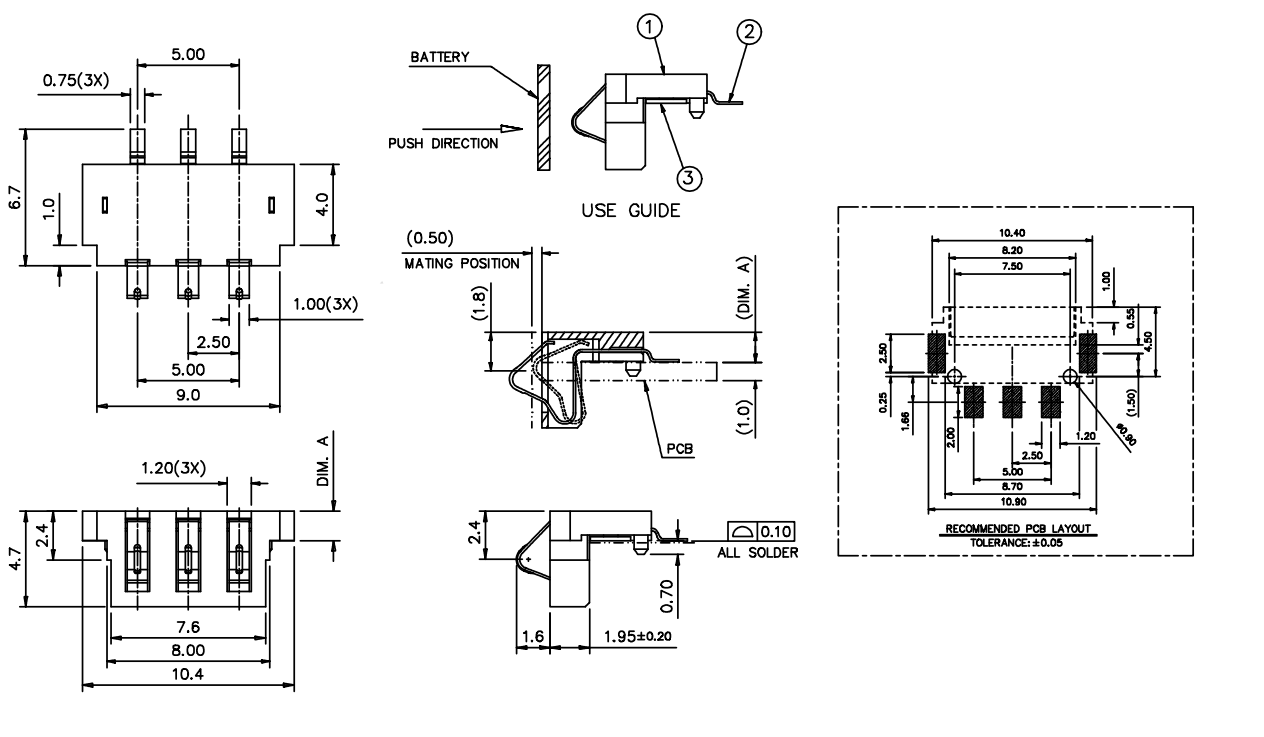

DIMENSIONS

Unit:mm

Model	Dimensions
BC-755

Unit:mm
