DIP SWITCH 撥碼開關

DOUBLE DIP SWITCH

DIP-BP

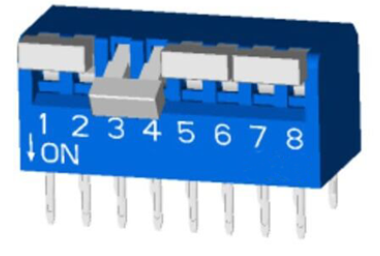

立式/臥式雙聯撥碼開關 FEATURE ? 2.54mm ? Vertical DIP ? Double Dip APPLICATIONS ? Data processing, communication, remote control, anti-theft automatic alarm system, air shower room, air conditioning control panel, train model, etc.

檔案下載產品詢價

DIP-BP

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-20°C to 70°C
間距/Dimension	2.54mm
機械壽命/Mechanical Life	2000 operations per swith
接觸電阻/Contact Resistance	50MΩmax
行程/Sroke	2.0mm

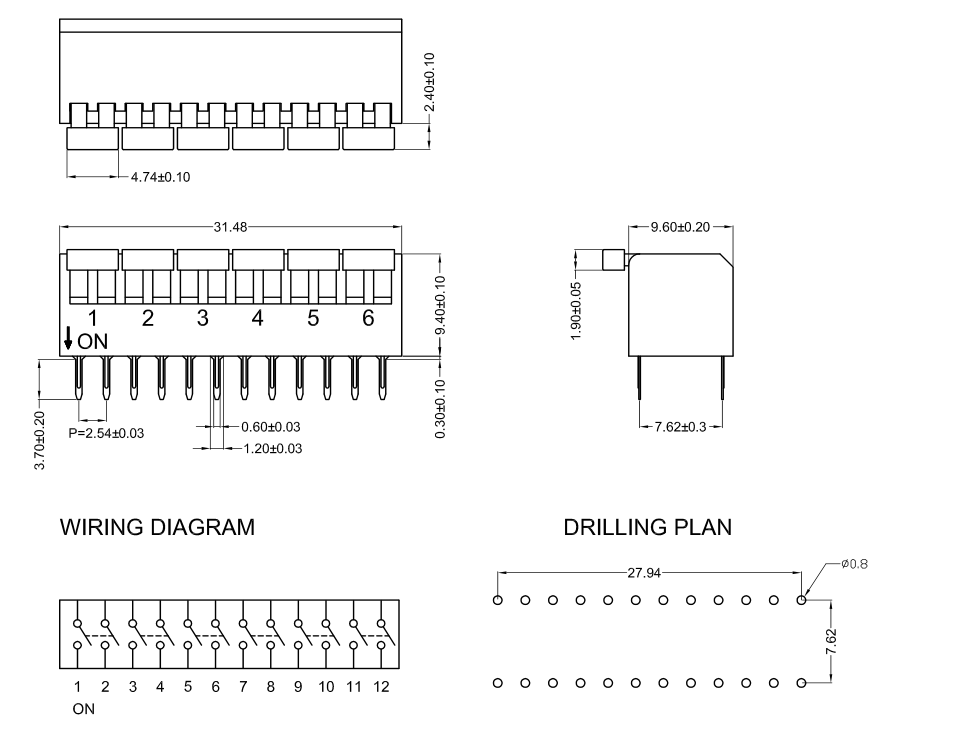

DIMENSIONS

Model	Dimensions
DE-BP

Model

Dimensions

DE-BP

DIP-BP
