ROCKER SWITCH 翹板開關

Waterproof multi-position rocker power switch

PR-2030series

IP65防水帶燈翹板開關 FEATURE ? 21.90mm*23.08mm ? 2 gears ? Illuminated double row feet APPLICATIONS ? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/Current	6A 250VAC
接觸電阻/Contact Resistance	50MAX
操作溫度/Operating temperature	-25℃+85℃
絕緣電阻/Insulation resistance	500VDC 100MAX min
耐電壓/Withstand voltage	1500VAC 1min
電器壽命/Electrical life	1000000cycles

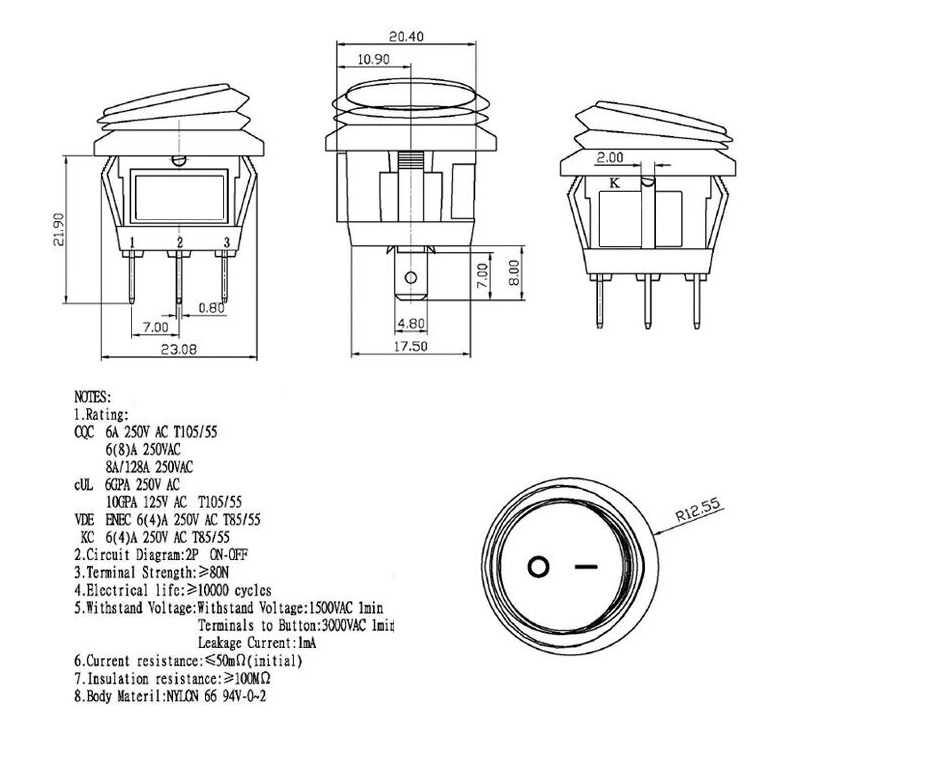

DIMENSIONS

Model	Dimensions
PR-2030series
