ROCKER SWITCH 翹板開關

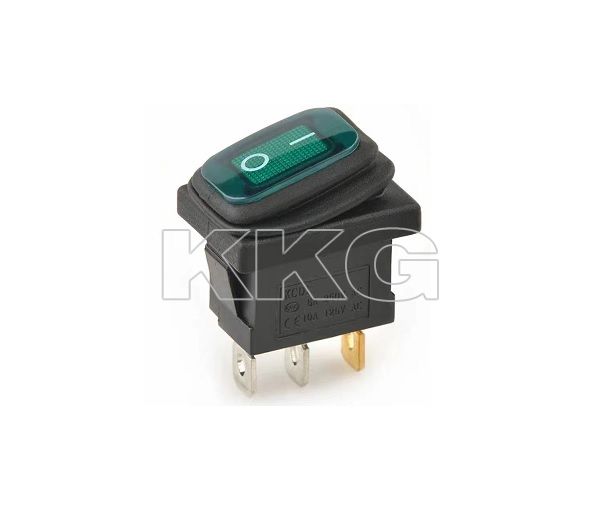

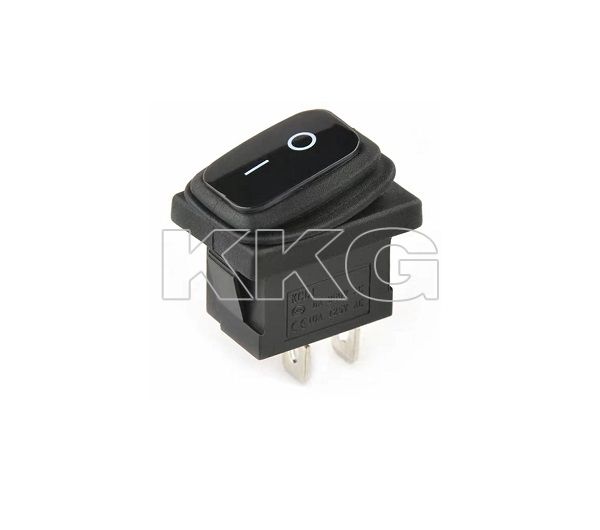

Waterproof multi-position rocker power switch

PR-2521

IP65防水翹板開關 FEATURE ? 25.10mm*22.10mm ? 3 gears ? Single row of feet APPLICATIONS ? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/Current	16A 125VAC/8A 250VAC
接觸電阻/Contact Resistance	100MAX
操作溫度/Operating temperature	0℃+125℃
絕緣電阻/Insulation resistance	500VDC 100MAX min
耐電壓/Withstand voltage	1500VAC 1min
電器壽命/Electrical life	1000000cycles

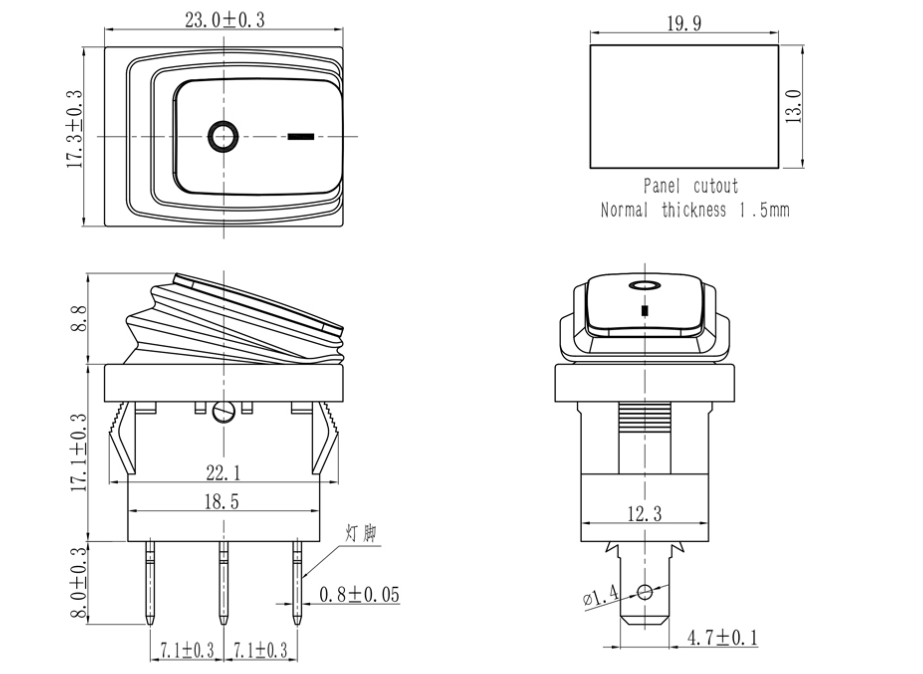

DIMENSIONS

Model	Dimensions
PR-2521
