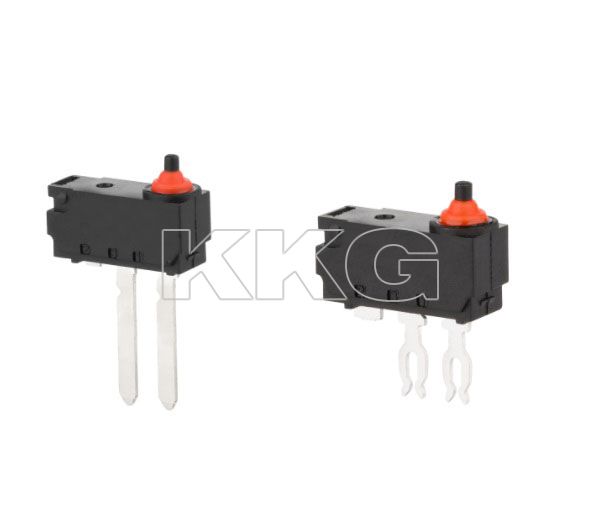

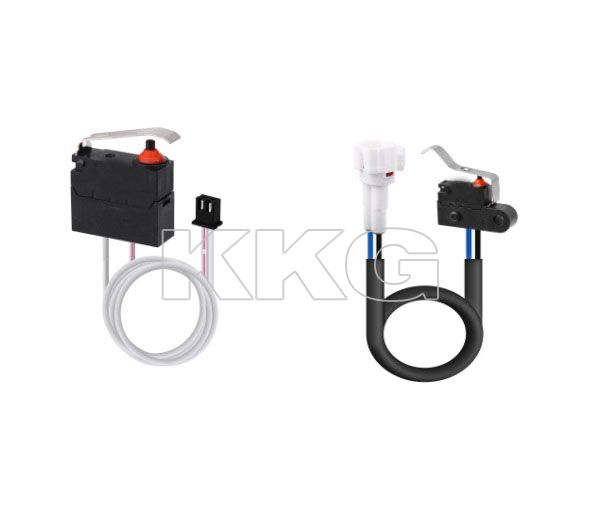

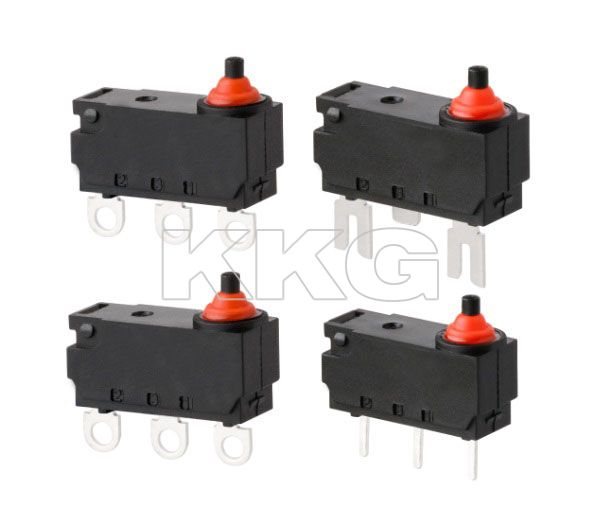

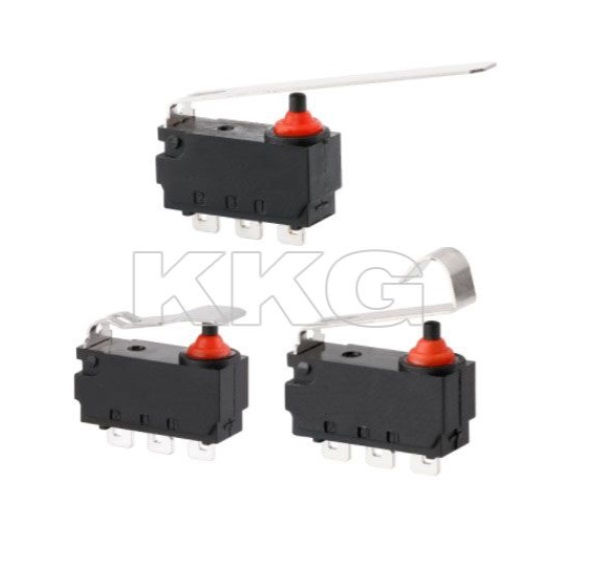

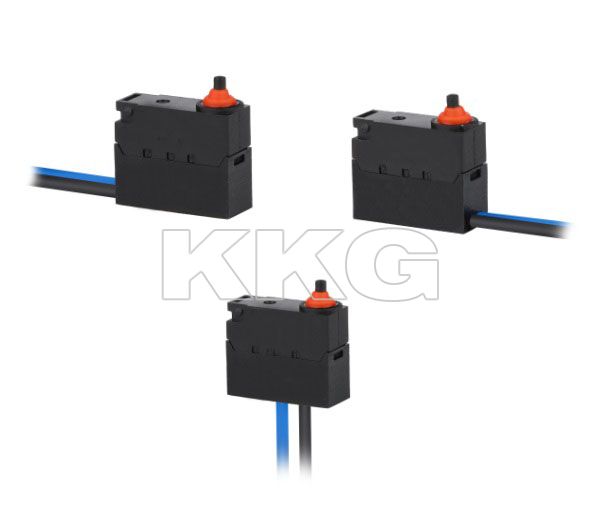

M3-A series

IP67防水微動開關 FEATURE ? 14.70mm*6.80mm ? DIP ? Reflow soldering APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-40°C ~ +85°C
操作力/Operating force	130gf
機械壽命/Mechanical Life	100,000 Cycles
接觸電阻/Contact Resistance	50MΩ
絕緣電阻/Insulation resistance	100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage	3A/12VDC

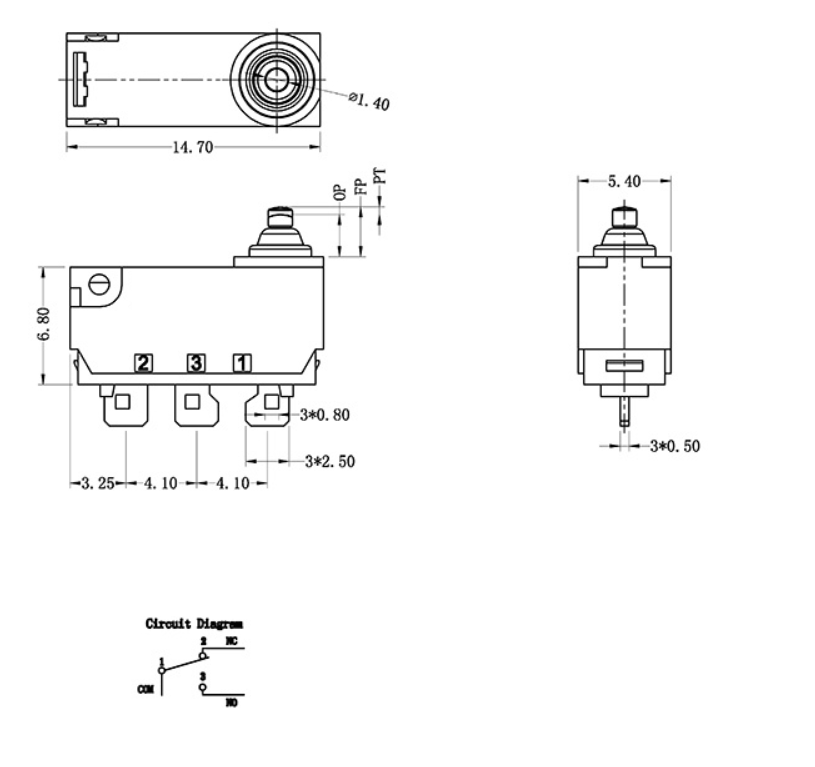

DIMENSIONS

Model	Dimensions
M3-A-

Model

Dimensions

M3-A-
