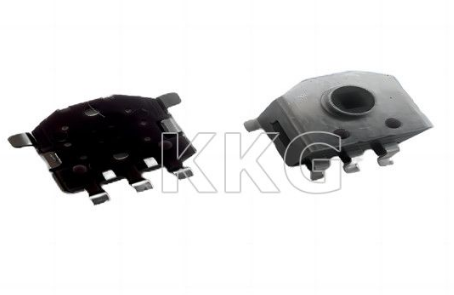

EC08 series
EC08 series
旋轉編碼開關/貫通軸
MAIN FUNCTIONS
Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection.
APPLICATIONS
Mouse, earphone, radio, electronic toy, electronic cigarette.
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度/Operating Temperature | -25℃~+85℃ |
|---|
| 操作力矩/Shaft Rotation Force | 10gf.cm±5gf.cm |
|---|
| 全回轉角度/Total Rotation Angle | 360o |
|---|
| 額定功率/Power Rating | DC5V |
|---|
| 絕緣電阻/Insulation resistance | More than 100MΩ |
|---|
| 接觸電阻/Contact resistance | 1Ω Max |
|---|
| 耐電壓/Withstand Voltage | For 1 minute at 50V AC |
|---|
| 回轉壽命/Rotational life | 100,000 cycles |
|---|

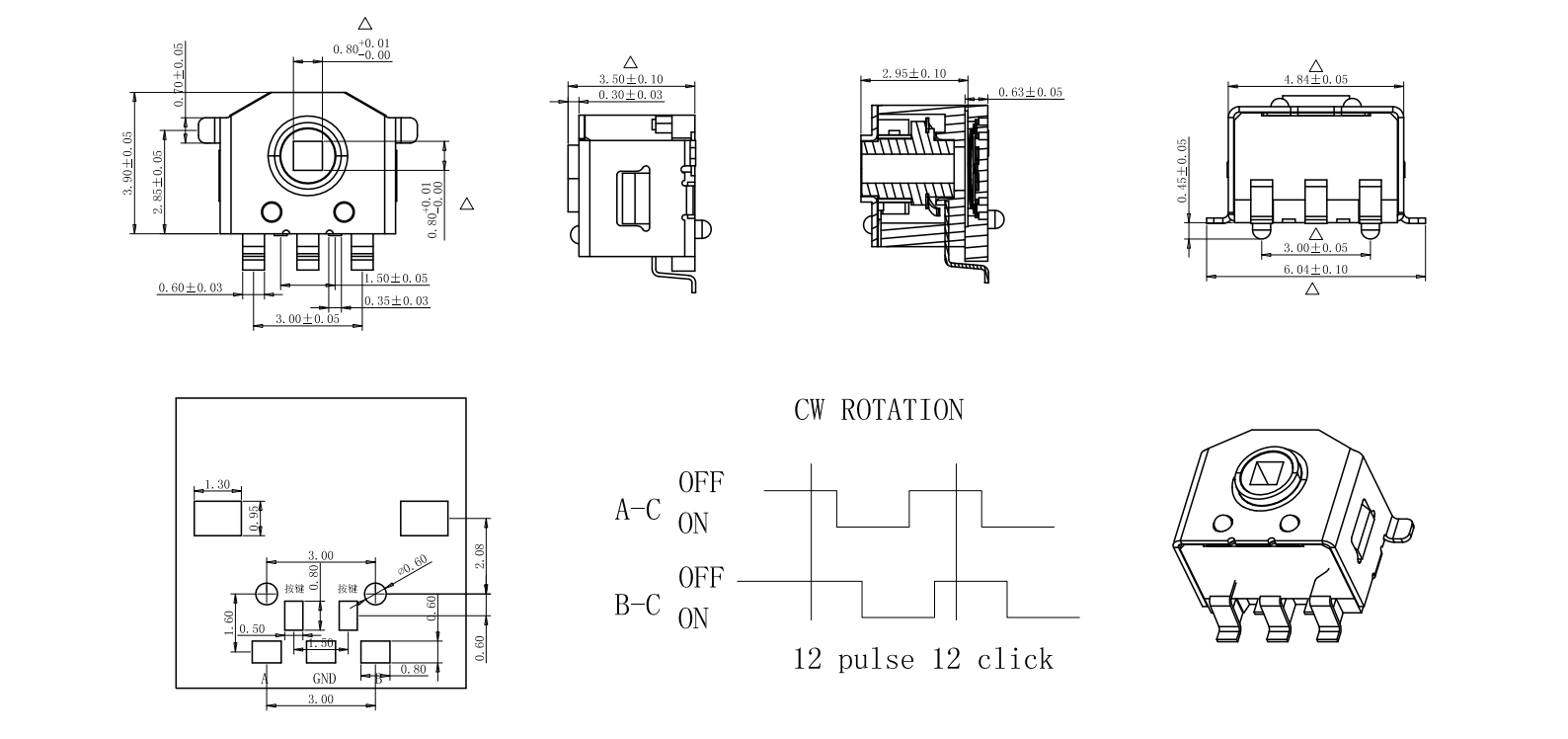

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
EC08
|
|
