USB 3.1Waterproof TYPE-C Connector

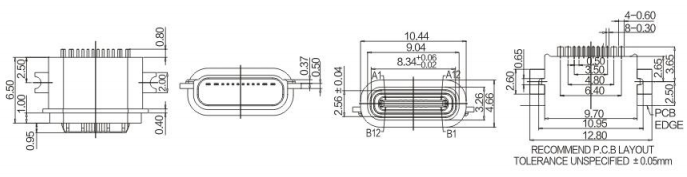

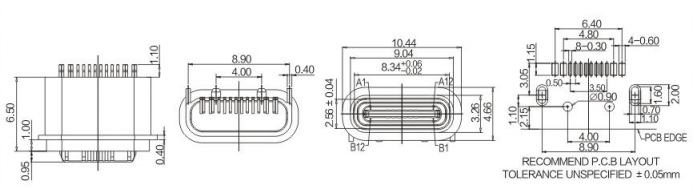

TYPE-C-16-001/002/003/004
TYPE-C16母座防水IPX8板上貼板/沉板后腳插L=6.5舌頭外露0.95(粉末金外殼)
FEATURE
?10.44mm*6.50mm
? Pin No.: 16 pin
? Top Mount/Mid Mount
? Waterproof IPX7
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
