MICRO USB SOCKET Micro/Mini USB
IP67 Micro5P BF SMT
防水Micro 5p-05-006/007
防水Micro 5P BF板上四腳插板/前貼后插SMT 6.25L
FEATURE
?8.70mm*4.65mm
? Pin No.: 5 pin
?Top Mount
? Waterproof IPX7
APPLICATIONS
? Mobile Power Supply；Charger；Storage (Personal Cloud, Network-Attached Storage)；Smartphone；Notebook (Laptops)；Hybrid-Detachable (NB-Tablets)；Docking；Peripherals (Monitor/Display, Projector…)；Automotive Infotainment；Home Entertainment
產(chǎn)品說(shuō)明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.70mm*4.65mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

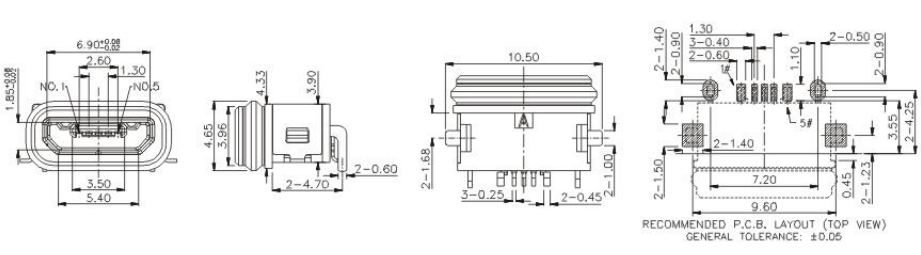

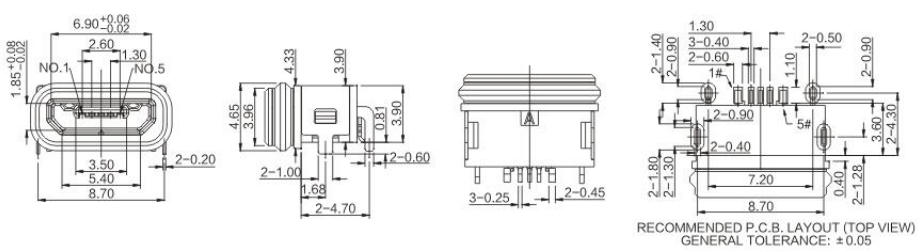

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
| 防水Micro 5p-05-006
|  |
| Model | Dimensions |
|---|
防水Micro 5p-05-007 |  |
